Chroma-Q Color Force II 72 RGBA, 3' TRUE1 to Male Edison Tail & LumenRadio RF
See all Chroma-Q items

Chroma-Q Color Force II 72 RGBA with Trunnion, 3' TRUE1 to Male Edison Tail, LumenRadio RF

SKU: CQCF272RGBLR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Chroma-Q Color Force II Specifications

Technical Specifications

Technical Specifications

Jump to...

  • Power Supply

    Built-in

  • Power Input Rating

    100-240V AC 50-60Hz 800VA

  • Power Factor

    0.96 @ 120V AC, 0.99 @ 240V AC

  • Power Consumption

    800W @ 120V AC, 800W @ 240V AC

  • Idle Power Consumption

    29W @ 120V AC, 32W @ 240V AC

  • Typical Power & Current

    Measurements done with all LEDs at maxi-mum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%

  • Power Connectors In/Out

    Neutrik powerCON TRUE1

  • Data Connectors In/Out

    Neutrik XLR 5-pin

  • Control Protocol

    ANSI E1.11 USITT DMX 512-A

  • Cooling System

    Forced

  • Operating Temperature

    0 Degree C to 40 Degree C

  • Construction

    Anodised Aluminum extrusion

  • Color

    Black

  • Built-In Hardware

    Quick release lever for tilt adjustment

  • IP Rating

    IP20

  • Approvals

    CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750

  • Dimensions (L x W x H) (Without Fixings)

    69.25 x 6.5 x 7.5" (1759 x 165 x 191mm)

  • Weight

    53 lb (24kg)

Control & Photometric Data

Jump to...

  • LED Engines

    24

  • Hot Lumen Output (Combined)

    18,600 lm

  • Control Modes

    Strobe Options, RGBA, RGB, HSI, x1, x2, x3, x4, x6, x8, x12, x24, Look Select, Master, Odd / Even, Skip2, Skip3, Skip6

  • Dimming Curve

    Theatrical

  • Variable Effects Engine

    Strobe, Strobe on Top, Strobe Random

  • Optics

    Fully homogenised lenses

  • Beam Angle

    22 Degree (approx.)

  • Beam Angle with Optional Cyc Optic

    80 Degree x 35 Degree (approx.)

  • Beam Angle with Optional Border Optic

    43Degree (approx.)

  • Beam Distribution

    Asymmetrical direct illumination

  • CCT

    Adjustable 1,000 - 10,000K

  • Color Gamut

    Performance enhanced

  • CRI

    92

  • Lamp Life

    L70 at 50,000 hours

  • Wireless DMX

    LumenRadio CRMX

About Chroma-Q Color Force II

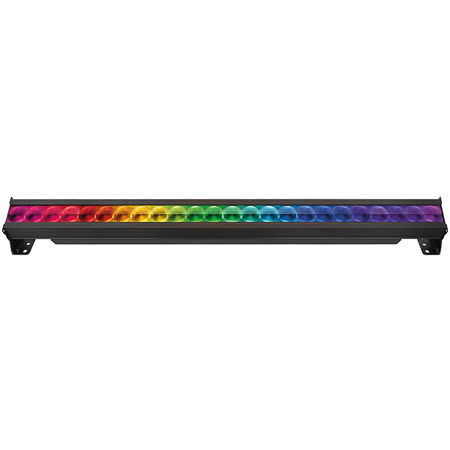

The Chroma-Q Color Force II 72 is part of the next-generation of solutions which take performance to an all-new level.

Using the very latest fully homogenised optics found in the popular Chroma-Q Color One 100 product range, the Color Force II fixtures' output is a single, clean and pure beam of light, delivering a superior Color blend with no unsightly Color mixing shadows.

The homogenised optics and improved Chroma-Q technology provide even higher quality saturates and pastels, and a purer white with no skittles - all from a single source.

Factory calibration ensures all Color Force II units are Color matched, so side by side they will be outputting the exact same color.

The new models also provide more creative control, with twice as many light engines accommodated within the same fixture lengths - providing independently controllable cells every 3 inches.

RDM
Extensive RDM functionality is provided through wired, or the optional LumenRadio CRMX, connection.

Chroma-Q Color Force II Features

  • Up to 18,600 lumens - at least 50% more output compared to predecessors
  • Homogenised output - superior Color blend & no unsightly colormixing shadows
  • Even more creative control - twice as many light engines
  • Theatrical grade dimming
  • Practical, user friendly design
  • Superior unit-to-unit consistency
  • Internal LumenRadio Installed
  • Chroma-Q's proven LED performance
  • Touchscreen user interface

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Up to 18,600 lumens - at least 50% more output compared to predecessors
  • Homogenised output - superior Color blend & no unsightly colormixing shadows
  • Even more creative control - twice as many light engines
  • Theatrical grade dimming
  • Practical, user friendly design
  • Superior unit-to-unit consistency

What's in the box:

  • Color Force II 72 RGBA
  • Power Cord
  • Quick Start Guide
  • Chroma-Q 1 Year Limited Warranty
