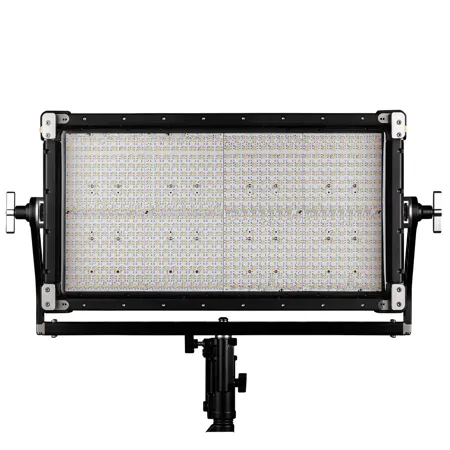

Creamsource Vortex8 Soft 2x1 RRGBBW 650W LED Light, Open Box

SKU: OSKCSV8SESSO MFR: K-CSV-8S-ESS O
Earn VIP Reward Points

Key Features

  • Experience precise lighting control with accurate color rendering (CRI 95, TLCI 95) for stunning visuals.
  • Adjust brightness from 0-100% with super-smooth dimming, perfect for any creative vision.
  • Enjoy consistent, flicker-free illumination across a wide color temperature range (2200-15000K).
  • Benefit from a durable, reliable build featuring IP65 water resistance for outdoor shoots.
  • Easily manage your lighting setup with mobile app compatibility via Luminair for iOS.
  • Achieve versatile lighting effects with RGB, Daylight, and Tungsten color options.
See More Product Details
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Creamsource Vortex8 Soft Open Box Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    LED Light Panel

  • Photometrics

    Open Face 3200K:
    19,500 lx/1,812 fc @ 1m/3.3ft
    5,140 lx/478 fc @ 2m/6.6ft
    2,400 lx/223 fc @ 3m/9.8ft
    1,410 lx/131 fc @ 4m/13.1ft
    920 lx/85 fc @ 5m/16.4 ft
    670 lx/62 fc @ 6m/19.7 ft

    Open Face 5600K:
    19,100 lx/1,774 fc @ 1m/3.3ft
    5,010 lx/465 fc @ 2m/6.6ft
    2,340 lx/217 fc @ 3m/9.8ft
    1,370 lx/127 fc @ 4m/13.1ft
    900 lx/84 fc @ 5m/16.4 ft
    650 lx/60 fc @ 6m/19.7 ft

  • Color Accuracy Standard

    TLCI 95
    CRI 95

  • Color Temperature

    RGB, Daylight, Tungsten

  • Color Temperature Range

    2200 to 15,000K

  • Display

    LCD

  • Beam Angle

    110 Degree (Half Peak Angle)

  • Built-In Flash

    No

  • Cooling System

    Fan

  • Dimming

    0-100% with High Resolution, Super-Smooth Low End Mode

  • Water Resistance/IP Rating

    IP65

Connectivity

Jump to...
  • Mobile App Compatible

    Yes: iOS Only
    App Name: Luminair

Battery

Jump to...
  • Battery Connection

    No Connection Included

  • Battery

    1x Battery Power Station, 48 VDC (Not Included)

  • Power Source

    AC/DC

  • Power Consumption

    650W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 6.6 A

  • DC Input Power

    48 VDC at 13.75 A

Mounting

Jump to...
  • Fixture Mount

    1x 1-1/8" Stud (Via Yoke Mount)
    8x 3/8"-16 Female Thread
    Proprietary

Physical Details

Jump to...
  • Panel Size

    2 x 1

  • Dimensions

    Excluding Yoke: 27.2 x 15 x 4.8" (690 x 380 x 121mm)
    Including Yoke: 32.7 x 21.7 x 6.4" (831 x 551 x 164mm)

  • Weight

    Excluding Yoke: 30.9 lbs (14kg)
    Including Yoke: 35.3 lbs (16kg)

  • UPC Code

    192223306301

Models
Creamsource Vortex8 Soft 2x1 RRGBBW 650W LED Light, Open Box
$2,924.35

In Stock

Creamsource Micro Bender Gaffer Kit with V-Lock Battery Plate
$2,699.00

Special Order

Generally ships in 7-14 days, subject to availability

Creamsource Micro Color Gaffer Kit, AB-Style

SKU: OSKCSUCGAFA

MFR: K-CSU-C-GAF-A

$2,699.00

Special Order

Generally ships in 7-14 days, subject to availability

Kit Style1 Light Kit1 Light Kit1 Light Kit
Power SourceAC/DCAC/DCAC/DC
Color TemperatureRGBWBi-ColorRGBW
Battery ConnectionNoneV MountGold Mount
Color Temperature Range2200-15000K2700-6500K2200-15000K
Panel Size2' x 1'8" x 8"8" x 8"

About Creamsource Vortex8 Soft Open Box

Be captivated by the Vortex8 Soft (V8S), a 2x1 LED lighting system that offers unparalleled versatility and superior quality for professionals. As the softer counterpart to the Vortex8 hard panel, this LED light is engineered with the same exceptional build quality and intuitive user interface. It seamlessly integrates an advanced RRGBBW color engine, power supply, and antennas into a sleek, robust design.

The Vortex8 Soft boasts a 110-degree beam that generates a remarkable 58,200 lumens and 2,340 lux at 3 meters (5600K, Open Face). It offers a comprehensive CCT range from 2200k to 15000k and features eight independently controllable zones for maximum flexibility.

This dedicated soft source combines efficiency and performance with its powerful 650W output, bathing your space in beautiful full-spectrum soft light. It's the perfect lighting solution for both space-constrained studio setups and challenging outdoor broadcasts.

The Vortex8 Soft's 48V DC input ensures a smooth transition to battery power when you need to move off-grid. Constructed to withstand the rigors of any shooting environment, this LED light is resilient and dependable, with an IP65 rating that guarantees performance even in less-than-ideal weather conditions.

Powered by the innovative CreamOS, the Vortex8 Soft integrates seamlessly with other Vortex products for consistent control and easy incorporation into your existing setup.

The Vortex8 Soft is designed to endure all weather conditions with its IP65 water resistance rating. It features an ultra-quiet fan-based system with optimal thermal efficiency. The fan system and heatsink placement allow for the core electronics to be sealed and isolated, ensuring longevity. Only premium waterproof connectors are used in this series, allowing all functions to operate flawlessly in all weather conditions.

The new Vortex Series is built on a new software architecture, supporting a host of new features, protocols, and connectivity mediums, making the future evolution of CreamOS incredibly exciting. The Vortex8 Soft pushes the boundaries of creativity with the ability to control and map eight zones. This new feature set is wrapped into a new user interface, enhancing the user experience and making it a must-have for professionals seeking a versatile and high-quality lighting solution.

Creamsource Vortex8 Soft Open Box Features

  • Photometrics Open Face 110 Degree Beam
  • Advanced special effects, for frame rates up to 5,000fps
  • Build small two units or large arrays- limited only by your ability to lift the rig
  • A premium high powered 2x1 LED fixture designed for heavy use in all conditions
  • IP65 Water resistant with a built in power supply and all the advanced connectivity for professional use
  • Optimized for a range of applications with RRGBBW, a wide CCT range and high speed modes for shooting up to 5000fps
  • Sync Input for Triggering and Syncing to Camera Shutter

Key Features

  • Experience precise lighting control with accurate color rendering (CRI 95, TLCI 95) for stunning visuals.
  • Adjust brightness from 0-100% with super-smooth dimming, perfect for any creative vision.
  • Enjoy consistent, flicker-free illumination across a wide color temperature range (2200-15000K).
  • Benefit from a durable, reliable build featuring IP65 water resistance for outdoor shoots.
  • Easily manage your lighting setup with mobile app compatibility via Luminair for iOS.
  • Achieve versatile lighting effects with RGB, Daylight, and Tungsten color options.

What's in the box:

  • Creamsource Vortex8 Soft 2x1 RRGBBW 650W LED Light
  • Yoke
  • Power Cable
  • Flat Diffuser
  • Creamsource 3 Year Limited Warranty (Extended 2 Year Warranty with Registration)
