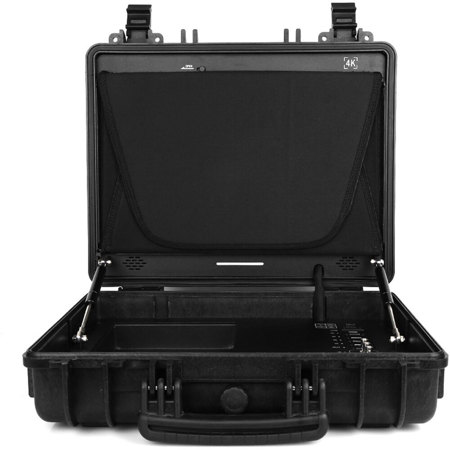

Came-TV 4K-C17-HDR Portable Case 17" 4K UHD HDR HDMI & 3G-SDI Multi-View Monitor
See all Came-TV items

Came-TV 4K-C17-HDR Portable Case 17" 4K UHD HDR HDMI and 3G-SDI Multi-View Monitor

SKU: CT4KC17HDR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-07-26T09:07:20

Rated 2 out of 5

Good monitor - missing key features.

As a portable / travel monitor it works well, solid case, heavy duty hinges, all the inputs you could want and easily mounts to a tripod. With a 95 watt V-mount battery this monitor will run over 6 hours. Nice built in / removable sunshade. Why only 2 Stars? It?s missing a couple of key features. No rule of thirds markers ? that is a basic must have for quick reference when your camera is sending lots of other tech, shooting and image data to the monitor. With all the camera data displayed on the monitor screen it?s often hard to see a quick framing of the complete image. No zoom function. Cameras and lens today are so sharp critical focus is a must! With out a zoom function on the monitor it?s often hard to tell if the focus is perfect. Can?t install / load a third party LUT?? If these items could be added (think software update) I will purchase more of these monitors for field use.

Charles F.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Came-TV 4K-C17-HDR Specifications

Signal Format

Signal Format

Jump to...

  • HDMIx4

    720x480i&720x480p @59.94, 60Hz
    720x576i & 720x576p @50Hz
    1280x720P@ 50, 59.94, 60Hz
    1920x1080i @ 50, 59.94, 60Hz
    1920x1080p @ 24, 25, 29.97, 30Hz
    1920x1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz
    3840x2160p @ 24,25,30,[50,60Hz(HDMI1/2)]
    4096x2160P @ 24Hz

  • 3G-SDIx4

    720x480i @59.94, 60Hz
    720x576i @50Hz
    1280x720P@ 50, 59.94, 60Hz
    1920x1080i @ 50, 59.94, 60Hz
    1920x1080p@ 24, 25, 29.97, 30Hz
    1920x1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz

Screen Parameters

Jump to...

  • Screen Size

    17.3" (43.94cm)

  • Resolution

    3840 x 2160

  • Contrast Ratio

    1000:1

  • Brightness

    400 cd/sq. m

  • View Angel

    178 Degree (H/V)

  • Backlight

    LED

  • Display Area (W x H)

    15.04 x 8.46" (382.12 x 214.94mm)

Signal Interface

Jump to...

  • Input

    signal2x HDMI 2.0 (1/2)
    2x HDMI 1.4 (3/4)
    2x 3G-SDI (1/2)

  • Output

    1x HDMI 1.4 (4)
    1x 3G-SDI

  • Audio Input/Output

    Speaker out x2: 3.5mm Headphone Jack

Other Parameters

Jump to...

  • Power Dissipation

    <=26W

  • AC Input Voltage

    AC100-240V

  • Installation

    Desktop (T-Type Stand)

Other

Jump to...

  • UPC Code

    614993191500

About Came-TV 4K-C17-HDR

FEATURES 17.3 inch 4K display panel UHD resolution 3840x2160 HDR function 4xHDMI input,1x HDMI output 2x 3G-SDI input,1x 3G-SDI output 1000:1 contrast ratio 178 degree viewing angle 400nit brightness PIP/PBP capable Battery information display Professional color calibration Build in 3D-LUT(SMPTE/EBU/REC709/DCI-P3) Gamma selection(1.8/2.0/2.2/2.4) Video assist functions.

Came-TV 4K-C17-HDR Features

  • 17.3 inch 4K display panel
  • UHD resolution 3840x2160
  • HDR function
  • 4xHDMI input,1x HDMI output
  • 2x 3G-SDI input,1x 3G-SDI output
  • 1000:1 contrast ratio
  • 178 degree viewing angle
  • 400nit brightness
  • PIP/PBP capable
  • Battery information display
  • Professional color calibration
  • Build in 3D-LUT (SMPTE/EBU/REC709/DCI-P3)
  • Gamma selection (1.8/2.0/2.2/2.4)
  • Video assist functions

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 17.3 inch 4K display panel
  • UHD resolution 3840x2160
  • HDR function
  • 4xHDMI input,1x HDMI output
  • 2x 3G-SDI input,1x 3G-SDI output
  • 1000:1 contrast ratio

What's in the box:

  • Came-TV 4K-C17-HDR Portable Case 17" 4K UHD HDR HDMI and 3G-SDI Multi-View Monitor
  • Sun-Hood
  • Power Adapter
  • HDMI Cable (A/A)
  • Came-TV 1 Year Limited Warranty
