Came-TV 4K-MT7S Specifications

Display

Display

Jump to...
  • Screen Size

    7" IPS

  • Resolution

    1920x1200 pixels

  • Pixel Pitch (HxW)

    0.07875 x 0.07875mm

  • Aspect Ratio

    16:10

  • Brightness

    450cd/sq. m

  • Contrast Ratio

    1200:1

  • Backlight

    LED

  • Viewing Angle

    80 deg. /80 deg. (L/R) 80 deg. /80 deg. (U/D)

  • Input

    1x BNC
    3G-SDI
    1x HDMI

  • Output

    1x BNC
    3G-SDI
    1x HDMI

  • Audio

    Stereo Headphone, Speaker

  • SDI Support Format

    480i/576i
    720p(60/59.94/50/30/29/25/24/23.98)
    1080i(60/59.94/50)
    1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

  • HDMI Input/ Output Support Format

    480i/576i/480p/576p
    1080i (60/59.94/50)
    720p (60/59.94/50/30/29/25/24/23.98)
    1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
    4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)

General

Jump to...
  • Input Voltage

    DC6.5-24V

  • Power Consumption

    <=9W

  • Working Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

  • Storage Temperature

    -30 to 65 deg. C (-22 to 149 deg. F)

  • Install Way

    1/4"-20 Thread Socket (bottom)

  • Battery Plate

    F970 (Standard); D28S/D54, LP-E6, U60 (Optional)

  • Dimensions (LxHxD)

    180 x 120 x 20.5mm (7.09 x 4.72 x 0.81")

  • Weight

    445g (15.70 oz)
    475g (16.76 oz) (with F970 Battery Plate)

  • UPC Code

    614993190299

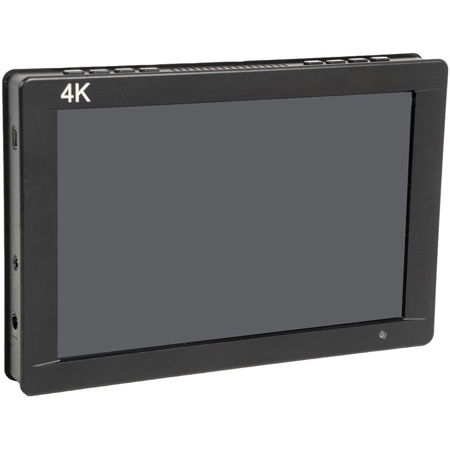

About Came-TV 4K-MT7S

CAME-TV 7 Inch 3G-SDI 4K HDMI On-camera Monitor features a 7-inch full HD large screen with a resolution of 1920x1200 and pixel density up to 323PPI. The 160 deg. wide viewing angle IPS monitor allows the operator to have a clear, easy-to-see image as they move around while filming. The 4K-MT7S uses the professional Rec.709 HD color standard and is professionally calibrated at the factory, providing accurate color reproduction. Specially designed to merge portability along with functionality, 20.5mm thickness, 445g lightweight, the ultra-thin / lightweight monitor gives you freedom to shoot well anywhere.

Easy to operate buttons allow you immediately to improve the shooting efficiency. F1, F2 custom shortcut function keys, provide fast access to the functions you need, focus assist, false color, exposure, embedded audio etc. Featuring 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It has the ability to display live picture on multiple displays at once while still maintaining the original video quality.

Came-TV 4K-MT7S Features

  • Brightness Histogram
  • Embedded Audio
  • Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
  • False Colors
  • Zebra Exposure (1-100IRE adjustable)
  • Check Field (Red, Green, Blue, Mono)
  • Camera Mode
  • Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
  • Image Flip (H, V, H/V)
  • Image Freeze
  • Center Marker
  • Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
  • Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
  • Color Temperature Adjustment
  • Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input)
  • Zoom (4X, 9X, 16X) (Nonsupport in 4K input)
  • Aspect Ratio (Nonsupport in 4K input)
  • Pixel to Pixel (Nonsupport in 4K input)
  • Zoom All (Nonsupport in 4K input)
  • U/D Zoom (Nonsupport in 4K input)
  • L/R Zoom (Nonsupport in 4K input)

What's in the box:

  • Came-TV 4K-MT7S 7 " 3G-SDI 4K HDMI On-Camera Monitor
  • F970 Battery Plate (Integrated)
  • Power Cable
  • Allen Wrench
  • Camera Shoe Ball Mount
  • Screw
  • Came-TV 1 Year Warranty
