Came-TV Lilliput Q15 15.6" 16:9 4K UHD 12G-SDI/HDMI Broadcast Monitor with Built-In Speakers

Lilliput Q15 is a professional production studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs - and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.

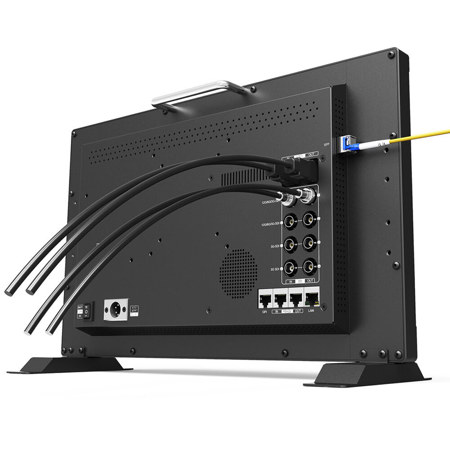

12G-SDI / 4K HDMI Signal
12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals.

Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it an support up to 4096x2160 (60p, 50p, 30p, 25p, 24p) & 3840x2160 (60p, 50p, 30p, 25p, 24p) signal.

12G SFP+ interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.

Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of LightSpace CMS by Light Illusion.

Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.

Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bits would be left to describe the dark tones where the camera is relatively less sensitive.

Audio Vector (Lissajous)
The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength. Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.

Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.

LAN / RS422
Select appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.

Brightness, contrast, saturation, tint, sharpness, backlight and color temperature can be controlled in this pattern.

Source
Switch between four different SDI signals and single HDMI signal

Marker
Skip the complex menu options and select necessary marker directly.

Audio
Any audio channel can be matched and control level meter and audio vector.

Function
Includes waveform, histogram, and other features in this pattern.

UMD
Control the color of Tally, as well as the text format of the UMD.

• Waveform: Quickly and easily check under or over exposure as well as color and white balance issues on pictures

• Histagram: A display that indicates how many of the pixels in a photo are at that given level of brightness

• False Color: An image that depicts an object in colors that differ from those a photograph (a true-color image) would show. Supports ARRI, RED False color

• User Markers: Adjusting the lines of four directions to shape any type of safety marker it can also weaken the sense of existence of the image outside the marker

• Peaking Focus: It highlights the areas that are in focus so you are able to quickly focus the camera and not miss crucial shots

• Exposure: Areas of the image over a certain threshold are filled with a striped pattern to dramatically highlight areas where too much light is falling on the image sensor

• Check Field: When enabled, hue and saturation can be adjusted quickly and accurately especially in broadcast area display

• Aspect Ratio: Provides a wide variety of aspect ratio to match different camera anamorphic lenses

• Zoom: Zoom in and out by adjusting the horizontal and vertical axis of the screen position

Camera Auxiliary Functions
Provides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.

HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.

3D-LUT
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

3D LUT LOAD
Supports loading the .cube file via USB flash disk.
