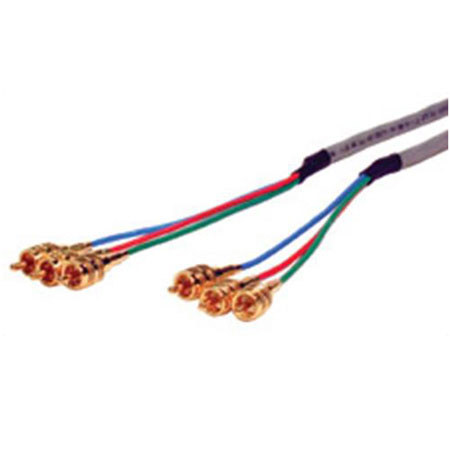

Comprehensive Pro AV/IT 25' Plenum 3 RCA Plugs Each End Component Video Cable
See all Comprehensive items

Comprehensive Pro AV/IT Series 25' Plenum 3 RCA Plugs Each End Component Video Cable

SKU: CV3RC3RC25HP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Comprehensive Pro AV/IT 25' Plenum 3 RCA Plugs Each End Component Video Cable Specifications

  • Connector Type 1

    3 RCA Male 75 ohm nickel over brass

  • Connector Type 2

    3 RCA Male 75 ohm nickel over brass

  • Connector Finish

    Gold

  • Center Conductor

    26 AWG Stranded Tinned Copper

  • Conductor Colors

    Red, Green, Blue

  • Dielectric

    .074" Foam Fluorinated Ethylene Propylene

  • Inner Shield

    95% Tinned Copper Spiral, 100% Aluminum/Mylar Wrap

  • Impedance

    75 Ohms

  • Resistance

    41 Ohm/1000ft

  • Capacitance per Ft

    16.4 pF/ft

  • NOM Velocity of Propagation

    83%

  • Time Delay

    1.2nS/ft

  • Attenuation at 100MHz at 100ft

    5.6dB

  • Attenuation at 200MHz at 100ft

    8.1dB

  • Attenuation at 400MHz at 100ft

    12.0dB

  • Attenuation at 1000MHz at 100ft

    21.4dB

  • Jacket

    Flex-Plenum

  • Jacket Color

    Gray

  • UL Rating

    CMP

  • Temperature Rating

    75 deg C

  • RoHS Compliant

    Yes

  • Overall Diameter

    0.320" (0.81cm)

  • Weight

    3.3lbs (1.5kg)

  • UPC Code

    808447025644

About Comprehensive Pro AV/IT 25' Plenum 3 RCA Plugs Each End Component Video Cable

Comprehensive Pro AV/IT 25' Plenum 3 RCA Plugs Each End Component Video Cable has been trusted by Pro AV and I.T. systems integrators because of its legendary reliability, performance and value. That's why it has been the "go to" cable worldwide for boardrooms, classrooms, data centers, schools, government installations, stadiums, broadcast studios, stages and other mission critical applications. Pro AV/IT Series Cable is also perfect for anyone looking for premium quality connectivity.

This Plenum 3RCA component cable features professional grade construction which ensures extremely low attenuation and maximum signal transfer. 24k gold precision connectors provide maximum conductivity while triple shielding provides maximum rejection of all EM and RF interference.

Comprehensive Pro AV/IT 25' Plenum 3 RCA Plugs Each End Component Video Cable Features

  • 3RCA Male to 3RCA Male
  • Premium 26 AWG high resolution, low loss construction
  • Premium heavy duty star cut nickel over brass RCA connectors
  • X-traflex plenum jacket
  • UL listed cable and RoHS Compliant

Warranty Information

This product has a limited lifetime warranty.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 3RCA Male to 3RCA Male
  • Premium 26 AWG high resolution, low loss construction
  • Premium heavy duty star cut nickel over brass RCA connectors
  • X-traflex plenum jacket
  • UL listed cable & RoHS Compliant

What's in the box:

  • Comprehensive Pro AV/IT 25' Plenum Video Cable
  • Comprehensive Lifetime Limited Warranty
