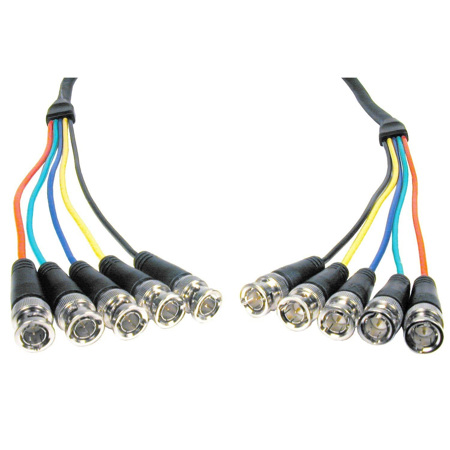

Comprehensive 150' Pro AV/IT Series Plenum 5 BNC Plugs Each End Component RGBHV Video Cable

SKU: CV5BP5BP150

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Comprehensive 5BP-5BP-150HRP Specifications

  • Connector Type 1

    5 BNC Male 75 ohm nickel over brass

  • Connector Type 2

    5 BNC Male 75 ohm nickel over brass

  • Connector Finish

    Nickel w Gold captive locking pin

  • Center Conductor

    26 AWG Stranded Tinned Copper

  • Dielectric

    .074" Foam Fluorinated Ethylene Propylene

  • Inner Shield

    95% Tinned Copper Spiral, 100% Aluminum/Mylar Wrap

  • Outer Shield

    None

  • Impedance

    75 Ohms

  • Resistance

    41 Ohm/1000ft

  • Capacitance per Ft

    16.4 pF/ft

  • NOM Velocity of Propagation

    0.83

  • Time Delay

    1.2nS/ft

  • Attenuation at 100MHz at 100ft

    5.6dB

  • Attenuation at 200MHz at 100ft

    8.1dB

  • Attenuation at 400MHz at 100ft

    12.0dB

  • Attenuation at 1000MHz at 100ft

    21.4dB

  • Jacket

    Flex-Plenum

  • Overall Diameter

    .320"

  • UL Rating

    CMP

  • Temperature Rating

    75 deg C

  • RoHS Compliant

    Yes

  • Weight

    9lbs / 4.05kg

  • UPC Code

    808447025767

About Comprehensive 5BP-5BP-150HRP

Become a part of the professional world with the Comprehensive 150' Pro AV/IT Series Plenum 5 BNC Plugs Each End Component RGBHV Video Cable. Known for its legendary reliability, superior performance, and exceptional value, this high-quality video cable is the preferred choice for a wide range of applications worldwide.

From boardrooms and classrooms to data centers and schools, from government installations to stadiums, and from broadcast studios to stages, this versatile cable is designed to handle mission-critical applications with ease. It sets the professional standard for RGB/VGA connectivity, ensuring seamless video signal transmission for your needs.

Handcrafted with meticulous attention to detail, this durable cable features 26 AWG high-resolution double-shielded mini-coax for enhanced signal integrity. It is terminated with true 75-ohm BNC connectors, ensuring optimal connection and signal transfer.

The cable is completed with Comprehensive's exclusive flexible plenum jacket, providing added durability and flexibility. This affordable, high-quality video cable is not just a product, but a long-lasting solution for your video signal transmission needs. Experience the difference with the Comprehensive 150' Pro AV/IT Series Plenum 5 BNC Plugs Each End Component RGBHV Video Cable.

Comprehensive 5BP-5BP-150HRP Features

  • 5BNC Male to 5BNC Male
  • True 75 Ohm Impedance matched BNC's with gold pins
  • 26 awg high resolution, low loss construction
  • 95%-100% tinned copper braided shield
  • X-traflex Plenum jacket
  • UL Rated
  • RoHS Compliant

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Ideal for a range of applications, from boardrooms & classrooms to stadiums & broadcast studios
  • Handcrafted with 26 AWG high-resolution double-shielded mini-coax for enhanced signal integrity
  • Fitted with true 75-ohm BNC connectors for optimal connection and signal transfer
  • Encased in Comprehensive's exclusive flexible plenum jacket for added durability and flexibility
  • Trusted worldwide for its legendary reliability, superior performance, and exceptional value
