Unmatched Power. Unmatched Creative Freedom.

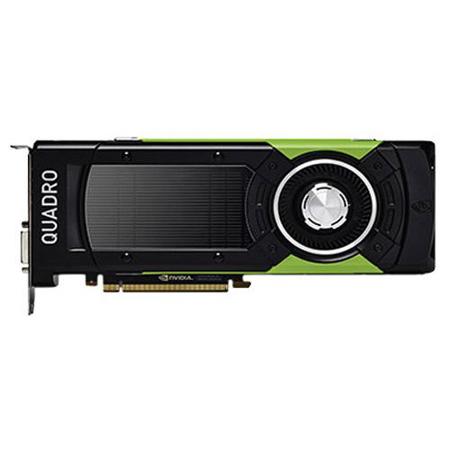

Nvidia Quadro GP100-The World's Most Powerful Workstation Graphics And Compute Card.
The NVIDIA Quadro GP100, powered by NVIDIA's Pascal GPU architecture, is equipped with the most advanced visualization and simulation capabilities to meet the needs of the most demanding professional workflows. A single GP100 with 3580 FP32/1792 FP64 CUDA Cores has incredible horsepower to render photorealistic design concepts interactively, create extremely detailed 3D models, run intensive CAE simulations to validate designs, and evaluate design prototypes in immersive VR. You can even connect two GP100's with NVIDIA NVLink technology to scale performance with an amazing 32GB of combined HBM2 ultra-high bandwidth memory.
Designs are becoming more complex. Media is becoming richer, higher fidelity, combining greater resolutions and complex visual effects. Scientific visualization and compute problems are larger than ever. NVIDIA Quadro Sync II compatibility enables the GP100 to build massive and sophisticated visualization, simulation and rendering environments. VR is changing all facets of entertainment, design, engineering, architecture and medicine. AI and deep learning are changing the way professionals are solving the most complex and challenging computing problems. Customers want to experience ideas, validate designs, test ideas, and simulate solutions and visualize the results as quickly as possible.
The GP100 is an excellent choice for developers who want to tap into the power of NVLink and Unified Memory to maximize their application performance. Additionally, its fast FP16 performance makes it an ideal desktop workstation solution for developers working on the latest Deep Learning/AI algorithms and frameworks.
Image Quality
Full-Scene Antialiasing (FSAA)
Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA (128X with SLI) for unparalleled image quality and highly realistic scenes.
16K Texture and Render Processing
Texture from and render to 16K x 16K surfaces to support applications that demand the highest resolution and quality image processing.
Pascal Memory Compression
Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.
Display Features
NVIDIA Quadro MOSAIC Technology
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.
DisplayPort 1.4
Support up to four 5K monitors at 60Hz, or dual 8K displays per card. Quadro GP100 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each DisplayPort connector is capable of driving ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.
NVIDIA NVIEW Advanced Desktop Software
Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments.
NVIDIA Quadro Sync II
Synchronize the display and image output of up to 32 displays from 8 GPUs (connected through two Quadro Sync II boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.
Frame Lock Connector Latch
Each frame lock connector is designed with a self-locking retention mechanism to secure its connection with the frame lock cable to provide robust connectivity and maximum productivity.
OpenGL Quad Buffered Stereo Support
Provide a smooth and immersive 3D Stereo experience for professional applications.
Ultra High Resolution Desktop Support
Get more MOSAIC topology choices with high resolution displays devices with a 32K Max desktop size.
Professional 3D Stereo Synchronization
Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to a Quadro graphics card.
Software Support
NVIDIA CUDA Parallel Computing Platform
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.
Unified Memory
A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.
NVIDIA GPUDirect for Video
GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.
NVIDIA Enterprise-Management Tools
Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.
Multi-GPU Technology Support
NVIDIA NVLink High Speed Interface
Connect a pair of Quadro GP100 cards with NVLink to increase the effective memory footprint and scale application performance by enabling GPU-to-GPU data transfers at rates up to 80 GB/s (bidirectional).
NVIDIA SLI HB Technology
Leverage multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system.
Supported Platforms
• Microsoft Windows 10 (64-bit and 32-bit)
• Microsoft Windows 8.1 and 8 (64-bit and 32-bit)
• Microsoft Windows 7 (64-bit and 32-bit)
• Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit)
Minimum System Hardware Requirements
• Intel Core i5, i7, Xeon or later
• AMD Phenom or Opteron-class or later
• PCIe x16 Gen 3 (preferred) expansion slot
• 2 GB or more of system memory, 8 GB recommended
• 200MB of available disk space for full driver installation
• Blu-ray or DVD-ROM drive
• Internet connection (if preferred for driver installation)
• DisplayPort (preferred) or DVI compatible displays
• HDMI display(s) with purchase of optional DP to HDMI adapter(s)
3D Graphics Architecture
• Scalable geometry architecture
• Hardware tessellation engine
• NVIDIA GigaThread engine with dual copy engines
• Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
• Up to 32K x 32K texture and render processing
• Transparent multisampling and super sampling
• 16x angle independent anisotropic filtering
• 32-bit per-component floating point texture filtering and blending
• 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
• Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later),
• and Flash (10.1 and later)
• Dedicated H.264 & HEVC Encoder
• Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback
• NVIDIA GPU Boost 3.0 (Automatically improves GPU engine throughput to maximize application performance)
NVIDIA CUDA Parallel Processing Architecture
• Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
• Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
• Mixed-precision (16-, 32- and 64-bit) computing
• API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
• Error correction codes (ECC) on graphics memory
• 64 KB of RAM (dedicated shared memory per SM)
Advanced Display Features
• Support for any combination of four connected displays
• Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
• DVI-D Dual Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz), internal 400 MHz DAC DVI-D output (analog display up to 2048 x 1536 at 85Hz)
• DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI adapters optionally available (resolution support based on dongle specifications)
• HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
• HDCP 2.2 support over DisplayPort, DVI and HDMI connectors
• 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
• NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
• Full OpenGL quad buffered stereo support
• Underscan/overscan compensation and hardware scaling
• NVIDIA NVIEW multi-display technology
• Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA MOSAIC, NVIDIA
• Quadro Sync II and NVIDIA Warp/Blend technologies
• Turnkey Quadro GP100 + Quadro Sync II bundles available
Displayport and HDMI Digital Audio
• Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
• Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
• Word sizes of 16-bit, 20-bit, and 24-bit
