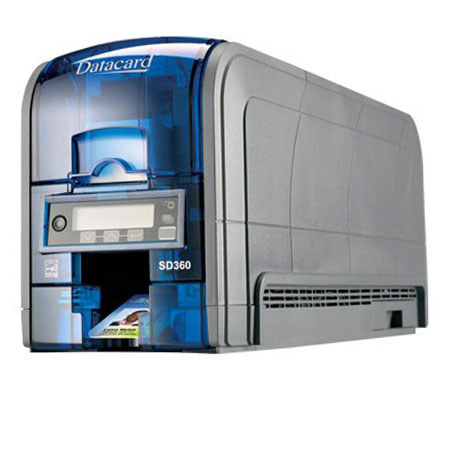

Datacard SD360 Duplex ID Card Printer, 300 dots Print Resolution, Upto 200 Cards per Hour Print Speed, 100-card Input, ISO Magnetic Stripe

SKU: DCSD360MS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Angel A : Best on the market yet

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datacard SD360 Specifications

  • Print technology

    Direct-to-card dye-sublimation/resin thermal transfer

  • Print capabilities

    One- or two-sided, edge-to-edge printing
    Full-color and monochrome printing capability
    Alphanumeric text, logos and digitized signatures; 1D/2D bar code images
    Printer pooling/sharing (available soon)

  • Print resolution

    300 dots per inch, 256 shades per color panel

  • Print quality

    Ability to conform to sRGB standard
    Flexible color management options

  • Print speed

    Full-color: up to 200 cards per hour, one-sided (YMCKT); up to 155 cards per hour, two-sided (YMCKT-K)
    Monochrome: up to 830 cards per hour, one-sided (black HQ)

  • Printer memory

    128 MB standard

  • Card capacity

    Automatic feed: 100-card input for 0.030 in.
    (0.76 mm) cards; 25-card output standard
    Manual feed: 1-card input; 5-card output for 0.030 in.
    Front exception card slot
    Separate reject location and holding tray (SD360)
    Input hopper empty detection (SD360)

  • Printer display

    Printer status messages
    Multiple backlight settings
    International languages available: English, Spanish, German, Italian and Japanese

  • Printer driver

    Adjustable color controls with image preview
    Pre-set area to block printing on magnetic stripe, with escapes for custom areas
    Utilizes Windows XPS-based technology for high-fidelity printing
    Secure disabling of card remake
    Software Development Kit (SDK) for Windows operating system printer driver
    User interface languages available: English, Spanish, German, Italian, Japanese, Traditional Chinese, Portuguese, Korean and Arabic

  • User-friendly operation

    Printer messages display on LCD panel
    Graphical display on Windows 7 and Windows Vista operating systems
    Easy, fast installation
    Card remake standard with cancel option
    Operator-replaceable printhead
    Front panel soft power button

  • Supplies Technology

    Automatic identification and validation for ribbons
    Adjustable low ribbon and cleaning cycle alerts
    Ribbon saver

  • Magnetic stripe encoding

    ISO 7811 three-track option (high- and low-coercivity)
    JIS Type II single-track option
    Support for standard and custom data formats

  • Smart card personalization

    Field upgradeable
    Contact/contactless all-in-one reader
    iCLASS by HID, read/write encoder
    Third-party OEM smart card option-ready

  • End-user upgradeable options

    Extended 200-card input hopper

  • Print ribbon kits - color

    Full-color with resin black and topcoat panel on front, resin black on back, YMCKT-K, 375 images (SD360)
    Resin black with inline double topcoat, KTT, 750 images

  • Print ribbon kits - monochrome

    Resin black HQ (high quality), 500 images
    Resin black HQ (high quality), dark blue, white, red, green, silver, gold, metallic silver, metallic gold, 1500 images

  • Electronic requirements

    100/120V, 50/60 Hz
    220/240V, 50/60 Hz

  • Plastic cards accepted

    ISO ID-1/CR-80 size cards;
    3.370 in. x 2.125 in. (85.6 mm x 53.98 mm)
    PVC with glossy laminate surface
    Select key fob cards (ISO ID-1/CR-80 size cards)
    Datacard StickiCard adhesive-backed plastic cards

  • Card thickness accepted

    0.010 in. to 0.037 in. (0.254 mm to 0.939 mm)

  • Operating environment

    60deg.F to 95deg.F (15deg.C to 35deg.C)
    20% to 80% non-condensing humidity

  • Storage environment

    5deg.F to 140deg.F (-15deg.C to 60deg.C)
    10% to 90%, non-condensing humidity

  • Connectivity

    Bidirectional USB 2.0 high speed
    Ethernet 10 Base-T/100-Base-TX (with activity light)

  • Operating system support

    Windows 7 / Windows Vista (32 and 64 bit)
    Windows Server 2008 (64 bit)
    Windows XP SP3 / Windows Server 2003 R2 (32 bit)
    Microsoft Windows Hardware Quality Labs (WHQL) certified

  • Dimensions (LxWxH)

    21.2x6.9x8.8" (53.9x17.5x22.4 cm)

  • Weight

    12 lbs (5.4 kg)

About Datacard SD360

The Datacard SD360 Duplex ID Card Printer (ISO Magnetic Stripe) is packed with industry-leading innovations that make desktop ID card printing simple and economical. The SD360 is ideal for small to medium sized businesses, schools, hospitals, fitness clubs and anyone who prints ID cards as part of their busy workday. With the SD360 you are able to print more cards in less time and is significantly faster than any other desktop card printers in their class.

The TruePick, anti-jam card handling accurately picks cards, standard and thin, with no adjustments. The SD360 also features the new TrueMatch printing technology which ensures the colors on your screen closely match the colors on your card. Batch after batch, you get consistently crisp, clean printing results from the first card to the last.

The Datacard SD360 also allows for easy operation that anyone can master. Intuitive icons guide you through the soft-touch control panel and LCD screen. Cards and supplies are easy to load and the ergonomically designed ribbon cartridge includes a drop-in cleaning roller.

Datacard SD360 Features

  • Issue secure credentials more easily with automatic two-sided printing: Create customized cards and badges with automatic two-sided printing. The SD360 card printer produces outstanding, dual-sided ID cards that are both visually impressive and easy to produce
  • Superior speed for higher productivity: Reduce the hassle of jamming with Datacard's exclusive TruePick card handling. Work time and efficiency can both be increased with the SD360 card printer, which produces clean credentials at industry-leading speeds
  • New technology prints brighter, high-quality images: Impress cardholders with the crisp, clean images and vibrant colors printed by the SD360 card printer. Datacard's exclusive TrueMatch printing technology closely matches the colors on your card to the colors on your screen
  • Intuitive operation simplifies card printing: There's very little learning curve with the SD360 card printer. Printer operations are easy to understand with the help of the intuitive soft-touch LCD panel
  • All the right connections for easy set-up: Standard, built-in Ethernet and US ports and the browser-based Printer Manager, help you integrate the SD360 printer into just about any application or typical IT environment

Key Features

  • New technology prints brighter, high-quality images
  • Intuitive operation simplifies card printing
  • All the right connections for easy set-up
  • Superior speed for higher productivity
  • Issue secure credentials more easily

What's in the box:

  • Datacard SD360 Duplex ID Card Printer
  • Printer Driver CD -Quick Install Guide
  • Free ID Works Intro Identification Software
  • Cleaning Pen
  • Cleaning Roller Spindle
  • USB Cable
  • Power Supply
  • Power Cord
  • Datacard 30 Months Warranty
