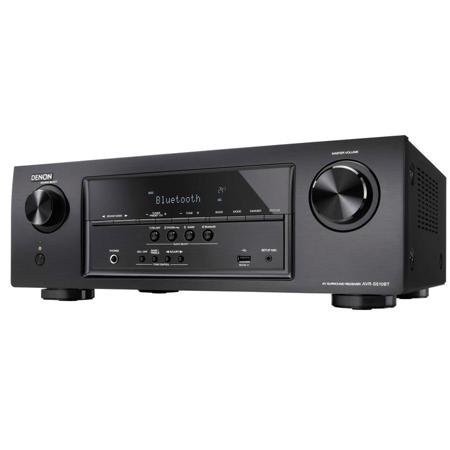

Denon AVR-S510BT Powerful 5.2 Channel Full 4K Ultra HD A/V Receiver with Wireless Bluetooth Streaming

SKU: DEAVRS510BT

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

CHARLIE V : is the a surround sound system, meaning can you use five speaker? Also is it a DolbyANDREW R : "5.2" indicates that, yes, this receiver can be set up to use 5 speaker surround. Sound Modes DTS HD Master Dolby TrueHD Multi-channel Stereo
Bernard M : Can you confirm if this AVR works with 240V current?ANDREW R : Manufacturer supplied specs indicate 120VAC/60HZ only.

Reviews about this item

Review Summary

2017-10-09T20:00:00

Rated 5 out of 5

1 year in and best unit I ever bought

SO.... Full disclosure, I used to be a Yamaha, and Onkyo guy. Yamaha got so darn expensive I quit buying their stuff. Onkyo's quality got so poor on entry level stuff I went through 2 receivers in 3 years for a grand total of about $1000 dollars of electronics in the garbage. I purchased the S510bt because it had everything I needed for my 5.1 mid to high end speaker setup (Klipsch sub, mission towers, yamaha center and rears) Long story short it sounds amazing, distortion is null, and it is super easy to use. DTS HD Master Audio, and Dolby TrueHD tracks with movies sound better than the theatre due to the close proximity and quality of the speakers attached. This unit can drive some higher end equipment and still sound fantastic. I would highly reccomend this unit to ANYONE. Obviously if your speakers are junk it doesn't matter what receiver you hook them into they will sound bad, but if you have decent equipment and are on a budget, go out and buy this unit already. The dual subwoofer outputs are both plugged into my klipsch 12 inch sub, and bass output from this unit is mind blowing. Now that the 530BT is out I would like to try dolby atmos, but honestly the master audio and trueHD sounds so good I cant imagine it making much of a difference on audio tracks for 4k bluray audio or regular 1080p bluray audio tracks. BUY IT BUY IT BUY IT..... Best bang for your buck period. If you have monster klipsch or paradigm towers this obviously might fall a little flat on power output, but lets be honest, no one pairs $4000 dollars worth of speakers with a $300 dollar amp anyways. Sweet amp, cant praise it enough. I wish Denon would hire me to go around to trade shows to tell everyone to drop onkyo and yamaha gear in the midrange setup segment.

mwright19832

2017-06-16T20:00:00

Rated 1 out of 5

Can't setup without remote

I purchased this as an 'out of box' deal from Best Buy, and therefore, it didn't come with a remote. When I got home, I couldn't get past the 'Language' setting on the display. I called customer support, and discovered there was no way to set up the unit without the remote control. I've never had any other piece of equipment, of any kind, which didn't function as a stand alone device. I can't understand why anyone would design something which will only work if you have the remote. There is a way to pair a phone to the unit, using bluetooth, and use an app as a remote. BUT, you need the original device remote to set it up (to pair it.) Incredible.

Shawn2

2017-01-07T19:00:00

Rated 5 out of 5

Great and amazing

Its just amazing make my room like a cinema!!! Awesome performance.

Gil C.

2016-12-31T19:00:00

Rated 5 out of 5

great sound

just hook up my new s510 best sound ever!! blows away my sony750. the online instructions were such simple to follow and understand the sony does not tell you much denon makes it easy

dump t.

2016-09-03T20:00:00

Rated 5 out of 5

firmware update

very nice product and very satisfied, not sure if I need to update the units firmware and not much info provided,would like to know if my unit is current or needs updated.

eddie555

2016-08-11T20:00:00

Rated 5 out of 5

Great sound

so glad I purchased the denon 500 series receiver, it has turned my home theatre into a masterpiece.

tallonebrownme

2016-01-06T13:09:56

Rated 5 out of 5

Denon

Set up was a snap with on screen menu cues. Great sound from to monitor B&W 610 speakers. Haven't tried surround sound or Blue tooth yet.

Lewis B.

Denon AVR-S510BT Specifications

  • Number of power amps5

    5

  • Power output

    70W per channel (8 Ohms, 20Hz - 20kHz, THD 0.08%, 2ch driven)

  • Output connectors

    6 - 16Ohms

  • Video: Input sensitivity/Impedance

    200mV / 47kOhms

  • Video: Frequency response

    10Hz - 100kHz - +1, -3 dB (DIRECT mode)

  • Video : S/N Ratio

    98 dB (IHF-A weighted, DIRECT mode)

  • Video: HDMI

    HDMI pass-through in standby mode
    GUI overlay on HDMI

  • Video: HDCP Support

    HDCP 2.2

  • Video: Pass-Through

    3D, 4K

  • Sound Modes

    DTS HD Master
    Dolby TrueHD
    Multi-channel Stereo

  • Sound Enhancement

    Discrete power amplifier
    Compressed Audio Restorer

  • Bluetooth Specification

    Version: 2.1 + EDR (Enhanced Data Rate), 2.4GHz band, Codecs Supported: SBC, AAC

  • Bluetooth Range

    32.8' / 10m with line of sight

  • Bluetooth Profile Support

    A2DP (Advanced Audio Distribution Profile) 1.2
    AVRCP (Audio Video Remote Control Profile) 1.5

  • FM section

    Tuning frequency range: 87.5 - 107.9MHz

  • AM section

    Tuning frequency range: 520 - 1710kHz

  • Inputs

    5x HDMI
    2x Composite Video (1 front)
    2x Analogue Audio
    2x Digital Optical
    Digital Coaxial

  • Outputs

    HDMI Monitor
    Composite Monitor
    Phones
    0.2 ch Audio Preout (SW)

  • Other Ports

    USB Port
    AM Tuner Antenna
    FM Tuner Antenna
    Microphone Port

  • Speaker Connectors

    Front Left and Right
    Center
    Surround Left and Right

  • Remote Control

    Preprogrammed

  • Power supply

    AC 120 V, 60Hz

  • Power consumption

    310W (Standby 0.1W, Bluetooth Standby 1W)

  • Dimensions (W x H x D)

    17.1 x 5.9x 12.6" / 43.4 x 15.1 x 31.9cm

  • Weight

    16.5lbs / 7.5kg

  • UPC Code

    883795003674

About Denon AVR-S510BT

FEATURED REVIEWS

Great sound

By tallonebrownme

so glad I purchased the denon 500 series receiver, it has turned my home theatre into a masterpiece.

firmware update

By eddie555

very nice product and very satisfied, not sure if I need to update the units firmware and not much info provided,would like to know if my unit is current or needs updated.

The perfect combination of high performance and high value, the Denon AVR-S510BT delivers superb sonic fidelity along with a host of advanced features that includes compatibility with the latest HDMI 2.0 specification, along with the latest HDCP 2.2 specification that's required for 4K Ultra HD copy-protected content. The video section features 5 HDMI inputs, 3 of which feature 4K Ultra HD/60 Hz full frame rate and 4:4:4 Pure Color sub-sampling pass-through for the ultimate home theater experience.

Manufacturer's exclusive Denon Setup Assistant quickly and easily guides you through the setup process, which includes automated speaker configuration and optimization using the supplied measuring microphone. Featuring Bluetooth wireless audio streaming, the AVR-S510BT is also equipped with a convenient USB port on the front panel for streaming your favorite tracks and charging your portable device and the Denon 500 Series Remote App lets you control the unit via your Bluetooth device.

Built-in Wireless Bluetooth Streaming
The AVR-S510BT features Bluetooth streaming, supporting Bluetooth-equipped devices that support the A2DP (Advanced Audio Distribution Profile). Simply select the AVR-S510BT from your device's Bluetooth menu to turn on the receiver and start playing your music. The AVR-S510BT can remember up to 8 paired Bluetooth devices, so family and friends can listen to their favorite tracks.

Latest HDMI 2.0 and HDCP 2.2 Specifications
Equipped with 5 HDMI inputs, the AVR-S510BT features support for 4K Ultra HD full frame rate 60 Hz pass-through on 3 inputs along with 4:4:4 Pure Color sub-sampling pass-through, along with 3D compatibility on all HDMI inputs. It's also equipped with HDCP 2.2 signal handling, a requirement for 4K Ultra HD copy-protected content.

Easy To Setup, Easy To Use
With their exclusive Setup Assistant along with the Quick Start Guide, you can connect and configure your home theater system quickly and easily. The AVR-S510BT comes with a setup measuring microphone that adjusts critical system parameters for top audio fidelity custom-tailored for your speaker system and listening space.

Dual Subwoofer Outputs
The AVR-S510BT features dual subwoofer outputs, which lets you place 2 subwoofers in different locations in the room. That allows for smoother deep bass response, helping to eliminate room-induced acoustical interference, a common problem with single subwoofer setups.

Discrete Power Output Stage
All 5 power amplifier stages feature true Class AB amplification and are configured with discrete high current power transistors that can easily drive lower impedance 6 ohm speakers and each channel is rated at a maximum of 140 watts of power.

Easy To Use Quick Select Functions
Featuring a clean front panel design, the AVR-S510BT comes equipped with 4 Quick Select function buttons that let you choose from your most popular input sources and the ergonomically designed remote also includes Quick Select buttons. With Quick Select, the AVR-S510BT remembers your preferred sources as well as your preferred audio settings for each source so you can enjoy precisely tailored sound with each one.

Bluetooth Remote App
Download the 500 Series Denon Remote app and control your AVR-S510BT from your Bluetooth device. Functions include On/Off, Volume Up/Down, Mute and Source Selection. The app is available now in an Android version and will soon be offered in an iOS version.

Compatible With Denon HEOS Link
Denon's HEOS whole-home wireless audio sound system delivers the ultimate in sound quality, ease-of-use and system flexibility and the AVR-S510BT features compatibility with their HEOS Link for easy remote control via the HEOS app.

Color Coded Speaker Terminals
The AVR-S510BT features color coded loudspeaker terminals and comes with color coded speaker labels that help ensure correct speaker cable hookups the very first time.

USB Connectivity
In addition to numerous analog and digital A/V connectors, the AVR-S510BT features a convenient USB port on the front panel that's compatible with portable USB devices and can play back a wide range of audio file types including MP3, WMA, FLAC and MPEG-4/AAC tracks.

What's in the box:

  • Denon AVR-S510BT Powerful 5.2 Channel Full 4K Ultra HD A/V Receiver
  • Notes on Radio
  • Sound Calibration Microphone
  • Remote Control Unit (RC-1196)
  • R03/AAA Batteries
  • FM Indoor Antenna
  • AM Loop Antenna
  • Quick Start Guide
  • Safety Instructions
  • Denon 2 Year Limited Warranty
