Review Summary
Mic: XLR with switchable phantom power
Line: 1/4" Mono
Insert: 1/4" TRS
Front: XLR+1/4" combo jacks
(Channels 1 and 2 only-overrides rear jacks
Line: 1/4" Left, Right
Line: 1/4" Left, Right
RCA: Left, Right
Bluetooth: Stereo Streaming In
Ext: 1/8" Stereo (front panel)
Aux Return: 1/4" TRS Balanced Left, Right
Main: 1/4" TRS Balanced Left, Right
Monitor: 1/4" Left, Right
Aux Send 1: 1/4"
Aux Send 2: 1/4"
Headphones: Stereo 1/4"
Ext: 1/8" Stereo (front panel)
3U Rackmount chassis
Detachable power cable
20Hz-50KHz, +/-0.5dB
108dB
< 0.005% (Mic/Line Input to Main Out)
70dB (Mic Input to Main Out)
24dB
Version: 3.0
Maximum Transmission Power: Class 3, +4dBm
Transmission Frequency: 2.4GHz
Transmission Range: Up to 100' / 30.48m
Receiver Sensitivity: < -70dBm at 0.1% BER
Supported Profiles: A2DP
115 VAC, 60Hz; 230 VAC, 50Hz
Rear panel voltage selector
115 VAC, 60Hz: T630 mAL 250 V
230 VAC, 50Hz: T315 mAL 250 V
19.0 x 6.25 x 5.25" / 48.3 x 15.9 x 13.3cm
8.9 lbs / 4.0 kg
694318017616
Perfect control and mixing of every source, every time

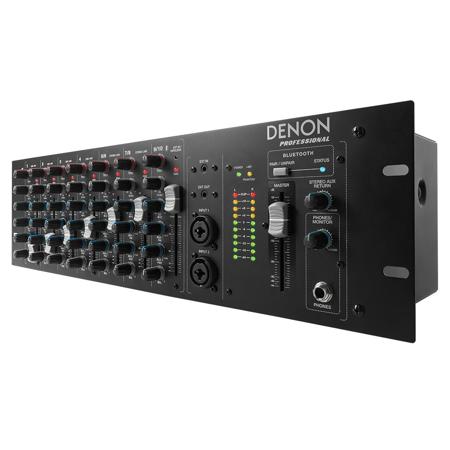

The Bluetooth-enabled DN-410x 3RU rackmount mixer is ideal for event spaces, restaurants, night clubs and hospitality use. It enhances any audio system's capabilities with premium sound quality, flexible signal routing and wireless streaming capability, letting you quickly play back virtually any audio source, including content from smartphones and tablets-ideal in this 'Bring Your Own Device' (BYOD) era.
4 XLR inputs; 2 in the front for convenience
Pre-fader and post-fader aux sends; stereo aux return
Dual multi-segmented LED meters and a Master output fader allow you to easily monitor and control your levels
Convenient front panel jacks add versatility
Space-saving 3U rackmount design is perfect for venues and mobile rigs
Bluetooth streaming with simple single-button pairing
4 high-gain mic/line preamps with inserts
2-band high and low shelving EQ on every channel
Comprehensive Input Facilities
The DN-410x provides you with a wealth of inputs to accommodate every popular type of audio device including A/V sources, microphones and instruments. Channels 1-4 each provide an XLR mic input with available +48v phantom power; a balanced 1/4-inch (6.3mm) TRS line input, plus a TRS 1/4-inch insert jack for incorporating additional effects (optional). Channels 5-8 have been set as stereo pairs, offering 1/4-inch left and right inputs. Channels 7-8 also provide left and right RCA inputs.
Bluetooth Flexibility
You can stream a wireless stereo audio signal from any Bluetooth device to Channels 9-10 of the DN-410x. Single-button pairing makes connecting an audio source simple, so you can play music during breaks in the presentation, stream audio from a computer during a multimedia event or even play a specific track from a smartphone to handle a special situation. The articulating Bluetooth antenna provides optimum reception while a dedicated volume control conveniently integrates additional audio sources at the touch of a button.
Input/Output Convenience
This is a mixer with a "flexibility-first" approach. With two front-panel XLR inputs, you can quickly adapt to performance changes on the fly without reaching behind their rack of A/V equipment. The DN-410x puts an end to snaking cables from front to back, reaching around to the back and blindly guessing at the input or worst of all, un-mounting the mixer to get at the jacks you need.
The wealth of input and output types ensure adapter-free connection to loudspeakers or amplification systems: XLR, balanced 1/4-inch and RCA. An internal power supply and rigid metal construction complement the intuitive layout with long-term reliability.
Your Reliable Solution
Until now, commercial A/V professionals had limited choices for integrating the countless audio sources they run into on a daily basis. However, the Bluetooth-enabled DN-410x is the reliable solution that will confidently handle every audio switching and integration requirement that comes along.
