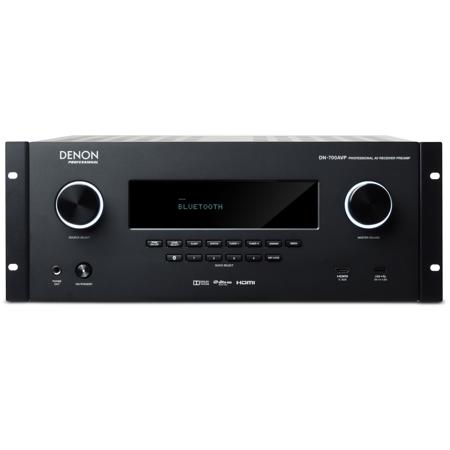

Denon Pro DN-700AVP 7.1-Channel Professional AV Receiver Pre-Amplifier

SKU: DENDN700AVP

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Huna H : only xlr out 7.1 preamp i could find

Reviews about this item

Review Summary

Denon Pro DN-700AVP Specifications

Bluetooth

Bluetooth

Jump to...
  • Version

    4.0

  • Profile

    A2DP, AVRCP

  • Maximum Transmission Power

    -6dB +/- 4dB, Class 2

  • Frequency

    2.4GHz - 2.48 GHz

FM Tuner

Jump to...
  • Frequency Range

    87.5 MHz - 108 MHz

  • File System

    FAT 16/32

  • Media Type

    USB Flash Drive

  • Preamp Outputs

    7.1 Surround Sound

  • Level

    -10dB or +4dB

  • Frequency Response

    10Hz - 20kHz +/- 1.0dB

  • Dynamic Range

    10kHz - 20kHz, A-weighted >90dB

  • Signal-to-Noise

    1 kHz, 0 dB, A-weighted >90dB

  • Distortion

    <0.006%

  • T.H.D

    1 kHz, 0 dB, A-weighted <0.01%

  • Supported Surround Formats

    Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS ES

  • Supported File Types

    WMA, MP3, WAV, MPEG-4 AAC and FLAC files

Analog Input

Jump to...
  • Unbalanced RCA

    Nominal level -10 dBV (at full scale: -16dB)

  • Minimum Input Level

    -19 dBV or higher

  • Input Impedance

    47 KOhms +/- 10%, unbalanced

Digital Inputs

Jump to...
  • Coaxial

    RCA (IEC-60958 Type II)

  • Optical

    TOSLINK (IEC-60958 Type II)

Composite Video

Jump to...
  • Input/Output Level

    1V/p-p

  • Impedance

    75Ohms

  • Frequency Response

    5 Hz - 10 MHz

Component Video

Jump to...
  • Input Level

    Y signal, 1Vp-p
    Pb/Cb signal, 0.7Vp-p
    Pr/Cr signal, 0.7Vp-p

Impedance

Jump to...
  • Impedance

    Y signal, 75Ohms
    Pb/Cb signal, 75Ohms
    Pr/Cr signal, 75Ohms

Frequency Response

Jump to...
  • Frequency Response

    5 Hz - 60 MHz

  • HDMI

    Version 1.4b (3D and ARC supported)

  • Connection

    IEC

  • Input Voltage

    100 - 120V / 220-240V

  • Consumption

    30W

General

Jump to...
  • Operating Temperature

    41 to 113 deg. F (5 to 45 deg. C)

  • Operating Humidity

    25 - 85%, non-condensing

  • Dimensions (WxDxH)

    19 x 13.66 x 6.93" (48.26 x 34.70 x 17.60cm)

  • Weight

    19.1 lbs (8.66kg)

  • UPC Code

    694318023198

About Denon Pro DN-700AVP

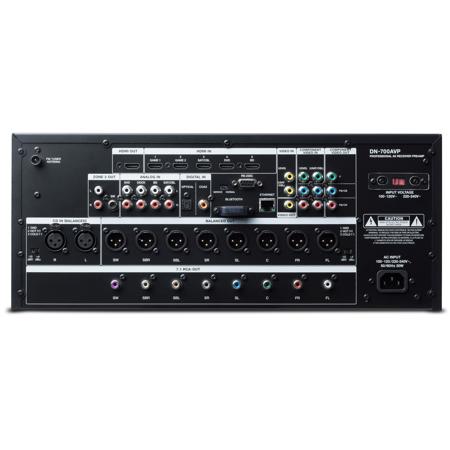

With comprehensive in/out connections and the latest Bluetooth 4.0 wireless technology, the DN-700AVP is the ideal surround preamp for any commercial audio-video system. Featuring six HDMI inputs, component/composite ins/outs, XLR balanced and RCA unbalanced 7.1 pre-outs and RS-232C, the 700AV is uniquely capable of handling virtually any installation requirement.

The unit is compatible with many of today's multi-channel formats, including TrueHD/Dolby Digital Plus/Dolby Digital/ DTS-HD/MasterAudio/DTS ES. Plus, it's HDCP-compatible and has network streaming via DLNA. With a rackmount chassis, the DN-700AVP was designed with the contractor in mind. A balanced XLR stereo input rounds-off the feature set aimed at the professional installer.

Denon Pro DN-700AVP Features

  • Six HDMI inputs and one output
  • Component & composite video inputs and outputs
  • Dolby TrueHD / Dolby Digital Plus / Dolby Digital/ DTS-HD Master Audio/ DTS ES
  • XLR balanced 7.1 preamp outputs
  • RCA unbalanced 7.1 preamp outputs
  • Bluetooth 4.0
  • FM tuner with 20-channel memory
  • HDCP compatible and network streaming via DLNA

What's in the box:

  • Denon Pro DN-700AVP 7.1-Channel Professional AV Receiver Pre-Amplifier
  • Power Cable
  • FM Antenna
  • Remote Control
  • User Guide
  • Safety & Warranty Manual
  • Denon Pro 1 Year Limited Warranty
