Draganfly Innovations Commander2 Ready to Fly System

SKU: DFCMDR2

This item is no longer available.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Draganfly Innovations Commander2 Specifications

  • Automated Mission Types

    Grid and 90degree double grid
    Corridor Mapping
    Target Stare Point
    Waypoint

  • Max climb rate

    393'/min (2m/s)

  • Max descent rate

    393'/min (2m/s)

  • Max turn rate

    90 degrees/sec

  • Max mission speed

    64km/hr (18m/s)

  • Minimum air speed

    0kmr/hr (0m/s)

  • Launch type

    VTOL

  • Typical flight time

    30 min (with payload)

  • Ceiling ASL

    8,000' Density Altitude (2,438m)

  • Top Diameter

    42" (107cm)

  • Payload Capacity

    2.2 lbs (1kg)

  • Max Take-off Weight

    8.26 lbs (3.75kg)

  • Battery Info

    Required, included

  • Battery Material

    lithium

  • Battery Quantity

    2

  • Battery Type

    non-universal

  • Dimensions (L x W x H)

    34.4 x 34.4 x 11.6" (87.3 x 87.3 x 29.4cm)

  • Weight

    6 lbs (2.75kg) (with battery)

3 Accessories for Draganfly Innovations Commander2 Ready to Fly System

  • All Accessories (3)
  • Landing Gear (1)
  • Flash & Lighting (1)
  • Safety & Security Accessories (1)

About Draganfly Innovations Commander2

The fully redesigned Commander2 is more capable than ever, including powerful interchangeable payloads and flexible mission planning options.

The Draganflyer Commander2 is a high endurance, dual battery, small Unmanned Aerial System (sUAS). The dual battery system provides extended flight time and increased safety. The Commander is ideal for Agriculture, Surveying, Aerial 3D modeling, Mapping, Search and Rescue or high endurance Public Safety applications using the10x optical zoom RGB sensor or FLIR Thermal imaging camera.

Flexible Mission Planning
Equipped with a new flight controller the Commander2 operates with MavLink based mission planning software to provide powerful and easy to operate flight planning options.

Custom Integration and Design
The Commander2 is not just a hardware package, this system is available for customization and development to best fit your needs and applications. Backed by over 22 years of UAV development experience you can be confident in a system that is truly tailored for your mission.

RTK Ready
Commander2 is available with an optional PPK/RTK enabled GPS system and basestation to provide improved absolute accuracy during data collection.

Interchangeable Payload
Offered with a range of RGB 10x zoom, RGB,Multispectral, Thermal IR, and Hyperspectral sensors the Commander2 has a wide selection of tightly integrated payloads to meet your data collection needs. All payloads are quickly interchangeable between flightand include sensors from MicaSense, FLIR, Sony, and Corning. As always, Draganfly continues to offer custom payload integration for specialized sensors.

Draganfly Innovations Commander2 Features

  • Designed, Manufactured, and Supported in North America
  • Flexible mission planning and automated flight
  • Supporting easily interchangeable payloads and automated flights of up to 30 minutes

Key Features

  • Designed, Manufactured, and Supported in North America
  • Flexible mission planning and automated flight
  • Supporting easily interchangeable payloads and automated flights of up to 30 minutes

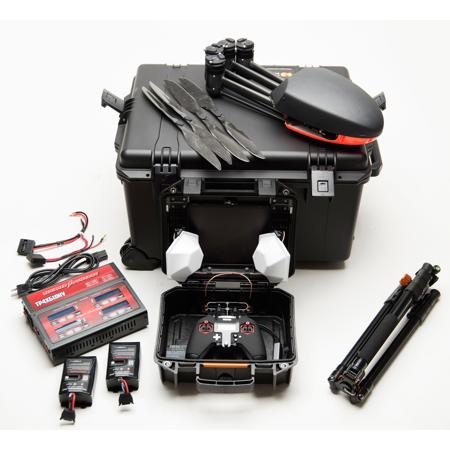

What's in the box:

  • Draganfly Commander2 Ready to Fly Airframe
  • Ground Control Basestation with and Held Controller and Display Tablet
  • DGround Control Mission Planning Software
  • 2x Draganfuel 6750mAh 4S Flight Batteries
  • 4 Port Flight Battery Charger
  • Hardshell Transport Case
  • Real Time Video Link
  • Spare Propeller Pair
  • Draganfly 1 Year Limited Warranty
