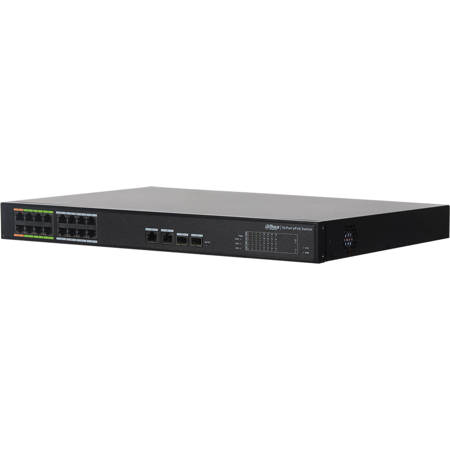

Dahua DH-LR2218-16ET-240 240W 16-Port Long-Distance ePoE Switch
See all dahua items

Dahua DH-LR2218-16ET-240 240W 16-Port Long-Distance ePoE Switch

SKU: DHDHLR6ET240

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Dahua DH-LR2218-16ET-240 Specifications

General

General

Jump to...

  • Ethernet Port

    2x 10/100/1000 Base-T
    2x 1000 Base-X (Combo ports)
    16x 10/100 Base-T (PoE power supply)

  • PoE Power Consumption

    Port1 and port 2 support Hi-PoE 60W
    Each power<=30W, Total<=240W

  • PoE Protocol

    IEEE802.3af, IEEE802.3at, Hi-PoE

  • Switching Capacity

    8.8Gbps

  • Packet Forwarding Rate

    5.36Mpps

  • Packet Buffer Memory

    2.75Mb

  • Application Humidity

    10%-90%

  • Power

    AC100-240V, 50/60Hz

  • Lightning Protection

    Common Mode 4KV
    Differential Mode 2KV

  • Working Temperature

    14 to 131 F (-10 Degree to 55 DegreeC)

  • PoE Budget

    240W

  • MAC Table

    4K

  • VLAN

    802.1Q Standard VLAN

Physical

Jump to...

  • Weight

    6.87 lb (3.12kg)

  • Dimension (W x D x H)

    17.32 x 11.81 x 1.73" (440 x 300 x 44mm)

Service Characteristics

Jump to...

  • System

    Username/password: admin/User Define
    IP Address: 192.168.1.110/24

  • Spanning Tree

    STP, RSTP

  • Port Aggregation

    Static link aggregation, LACP

  • Mirroring

    Support many-to-one port mirroring

  • DHCP

    Support DHCP-Client

  • Long Distance Mode

    Extend the maximum distance from 328.04' (100m) to 2624.67' (800m)

  • Flow Control

    Support half-duplex based on back pressure type control
    Support full duplex based on PAUSE frame

  • Security Features

    Hardware supports IP+MAC binding based on port
    Support IEEE802.1x port authentication

  • System Maintenance

    one-key recovery of default
    Support the updated packet upload
    Support system logs

  • QoS

    Support high and low priority, WRR
    Support 802.1P, DSCP
    Support priority according to protocol

  • Network Management

    WEB(http and https protocol)
    Support SNMP V1/V2C/V3

  • PoE Management

    Support PoE power consumption, PoE on/off of IPC configura-tion, power down when exceeding the value of overload power
    Support PoE event statics
    Support Green PoE
    Support Legacy Support

ePoE Power Supply (CAT)

Jump to...

  • Bandwidth: 100Mbps, Cable: 100m

    Poe Load Capacity: 25.5W
    Hi-PoE Load Capacity: 53W
    Working Mode: IEEE/E100

  • Bandwidth: 100Mbps, Cable: 200m

    Poe Load Capacity: 25.5W
    Hi-PoE Load Capacity: 47W
    Working Mode: E100

  • Bandwidth: 100Mbps, Cable: 300m

    Poe Load Capacity: 25.5W
    Hi-PoE Load Capacity: 32W
    Working Mode: E100

  • Bandwidth: 10Mbps, Cable: 400m

    Poe Load Capacity: 23W
    Hi-PoE Load Capacity: 26W
    Working Mode: E10

  • Bandwidth: 10Mbps, Cable: 500m

    Poe Load Capacity: 20W
    Hi-PoE Load Capacity: 20W
    Working Mode: E10

  • Bandwidth: 10Mbps, Cable: 800m

    Poe Load Capacity: 13W
    Hi-PoE Load Capacity: 13W
    Working Mode: E10

ePoE Power Supply (RG59 Coaxial Cable)

Jump to...

  • Bandwidth: 100Mbps, Cable: 100m

    PoE Load Capacity: 25.5W
    Hi-PoE Load Capacity: 52W
    Working Mode: IEEE/E10

  • Babdwidth: 100Mbps, Cable: 200m

    PoE Load Capacity:25.5W
    Hi-PoE Load Capacity: 48W
    Working Mode: E100

  • Bandwidth:100Mbps, Cable:300m

    PoE Load Capacity: 25.5W
    Hi-PoE Load Capacity: 30W
    Working Mode: E100

  • Bandwidth: 100Mbps, Cable: 400m

    PoE Load Capacity: 20W
    Hi-PoE Load Capacity:23W
    Working Mode: E100

  • Bandwidth: 10Mbps, Cable: 500m

    PoE Load Capacity: 16W
    Hi-PoE Load Capacity: 16W
    Working Mode: E10

  • Bandwidth: 10Mbps, Cable: 800m

    PoE Load Capacity: 10W
    Hi-PoE Load Capacity: 10W
    Working Mode: E10

  • Bandwidth: 10Mbps, Cable: 1000m

    PoE Load Capacity: 8W
    Hi-PoE Load Capacity: 8W
    Working Mode: E10

Other

Jump to...

  • UPC Code

    819290024074

About Dahua DH-LR2218-16ET-240

DH-LR2218-16ET-240 is a 16-Port web managed ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Dahua DH-LR2218-16ET-240 Features

  • Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
  • Layer-two web managed ePoE switch
  • Port 1-8 support three self-adaptive transmission modes which are IEEE, E100 and E10
  • Port 1-8 support both twisted-pair transmission and coaxial cable transmission
  • Support web management: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
  • Support PoE management, Green PoE, Legacy Support
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
  • Layer-two web managed ePoE switch
  • Port 1-8 support three self-adaptive transmission modes which are IEEE, E100 and E10
  • Port 1-8 support both twisted-pair transmission and coaxial cable transmission
  • Support web management: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
  • Support PoE management, Green PoE, Legacy Support

What's in the box:

  • DH-LR2218-16ET-240 240W 16-Port Long-Distance ePoE Switch
  • Dahua 3 Year Limited Warranty
