Dahua Pro 8 Channel Tribrid 1080P 1U HDCVI DVR, 2 SATA, HDD Not Included
See all dahua items

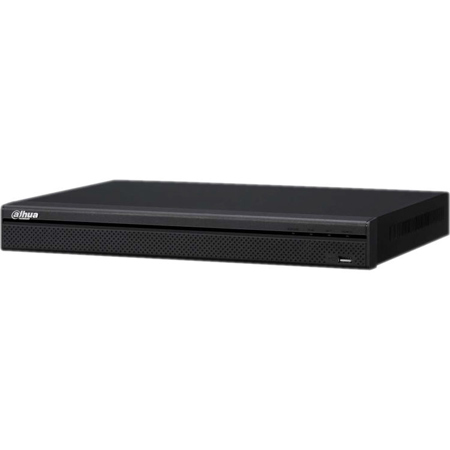

Dahua Pro 4 Channel Tribid 1080P 1U HDCVI DVR, 2 SATA, HDD Not Included

SKU: DHH7204S3

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Dahua DHI-HCVR72A08A-S3 Specifications

  • Main Processor

    Embedded processor

  • Main Processor

    Embedded processor

  • Operating System

    Embedded LINUX

  • Operating System

    Embedded LINUX

  • Input

    4 Channel, BNC

  • Input

    4 Channel, BNC

  • Input

    4 Channel, BNC

  • Input

    4 Channel, BNC

  • Standard Analog

    NTSC/PAL

  • Standard Analog

    NTSC/PAL

  • Standard HDCVI

    1080P/720P HDCVI Camera

  • Standard HDCVI

    1080P/720P HDCVI Camera

  • Standard IP

    4+2 up to 5MP

  • Standard IP

    4+2 up to 5MP

  • Output

    1 Channel, RCA

  • Output

    1 Channel, RCA

  • Two-way Talk

    Reuse audio input/output Channel 1

  • Two-way Talk

    Reuse audio input/output Channel 1

  • Interface

    1 HDMI, 1 VGA

  • Interface

    1 HDMI, 1 VGA

  • Resolution

    1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Resolution

    1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Display Split

    1 / 4 / 6

  • Display Split

    1 / 4 / 6

  • Privacy Masking

    4 rectangular zones (each camera)

  • Privacy Masking

    4 rectangular zones (each camera)

  • OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • Video/Audio Compression

    H.264/G.711

  • Video/Audio Compression

    H.264/G.711

  • Record Rate Main Stream

    1080P / 720P / 960H / D1 / HD1 / BCIF / CIF / QCIF (1 - 30fps)

  • Record Rate Main Stream

    1080P / 720P / 960H / D1 / HD1 / BCIF / CIF / QCIF (1 - 30fps)

  • Record Rate Extra Stream

    D1 / CIF / QCIF (1 - 30fps)

  • Record Rate Extra Stream

    D1 / CIF / QCIF (1 - 30fps)

  • Bit Rate

    1 - 6144Kb/s

  • Bit Rate

    1 - 6144Kb/s

  • Record Mode

    Manual, Schedule (Regular(Continuous), MD), Stop

  • Record Mode

    Manual, Schedule (Regular(Continuous), MD), Stop

  • Record Interval

    1 - 60 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

  • Record Interval

    1 - 60 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

  • Trigger Events

    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

  • Video Detection

    Motion Detection, MD Zones: 396(22 x 18), Video Loss & Camera Blank

  • Video Detection

    Motion Detection, MD Zones: 396(22 x 18), Video Loss & Camera Blank

  • Alarm Input

    8 Channel

  • Alarm Input

    8 Channel

  • Relay Output

    3 Channel

  • Relay Output

    3 Channel

  • Sync Playback

    1 / 4

  • Sync Playback

    1 / 4

  • Search Mode

    Time/Date, MD & Exact search (accurate to second)

  • Search Mode

    Time/Date, MD & Exact search (accurate to second)

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/Internal SATA burner/Network

  • Backup Mode

    USB Device/Internal SATA burner/Network

  • Ethernet

    RJ-45 port (10/100M)

  • Ethernet

    RJ-45 port (10/100M)

  • Network Functions

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P

  • Network Functions

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P

  • Max. User Access

    128 users

  • Max. User Access

    128 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Internal HDD

    2 SATA ports, HDD not included

  • Internal HDD

    2 SATA ports, HDD not included

  • USB Interface

    2 ports(1 Rear), USB2.0

  • USB Interface

    2 ports(1 Rear), USB2.0

  • RS485

    1 port, For PTZ control

  • RS485

    1 port, For PTZ control

  • Power Supply

    DC12V/4A

  • Power Supply

    DC12V/4A

  • Power Consumption

    15W (without HDD)

  • Power Consumption

    15W (without HDD)

  • Working Environment

    -10 Degree C G55 - +55 Degree C / 10% - 90%RH / 86 - 106kpa

  • Working Environment

    -10 Degree C G55 - +55 Degree C / 10% - 90%RH / 86 - 106kpa

  • Dimension(WxDxH)

    1U, 375mm x 285mm x 55mm (14.76" x 11.22" x 2.17")

  • Dimension(WxDxH)

    1U, 375mm x 285mm x 55mm (14.76" x 11.22" x 2.17")

  • Weight

    2.35KG (without HDD)

  • Weight

    2.35KG (without HDD)

  • UPC Code

    816116021644

1 Accessories for Dahua Pro 4 Channel Tribid 1080P 1U HDCVI DVR, 2 SATA, HDD Not Included

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Dahua DHI-HCVR72A08A-S3

Dahua DHI-HCVR72A08A-S3 Features

  • Supports HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • HCVR72A04/72A08/78A16A-S3: All channel 1080P realtime recording
  • 4 channel synchronous realtime playback, GRID interface & smart search
  • HDMI/VGA simultaneous video output
  • Supports 2 SATA HDDs up to 12TB, 1 USB2.0 and 1 USB3.0
  • Supports Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ dome camera
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports HDCVI/Analog/IP Video input
  • Supports HDCVI/Analog/IP Video input
  • Supports HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • H.264 dual-stream video compression
  • H.264 dual-stream video compression

What's in the box:

  • HDCVI DVR
  • Dahua 3 Year Limited Warranty
