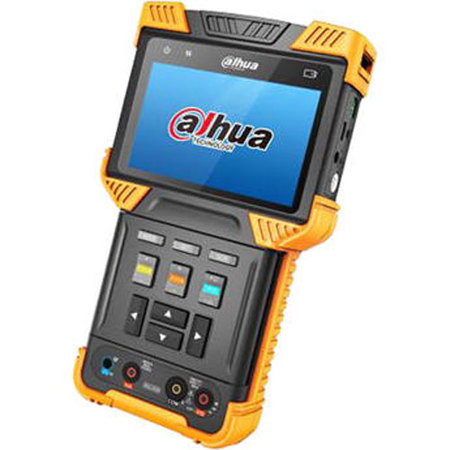

Dahua DH-PFM900-E Integrated Mount Tester, 4" IPS TFT Screen, 800x480 Resolution
SKU: DHPFM900E
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Failure Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
Dahua DH-PFM900-E Integrated Mount Tester, 4" IPS TFT Screen, 800x480 Resolution Specifications
Physical Port
Physical Port
Jump to...Network Ports
Two (2) 10/100/1000 Mbps RJ45(LAN/PSE, PD)
BNC Port
One (1) Video In (HDCVI, TVI, AHD, CVBS)
One (1) Video OutFunctional Ports
One (1) RS485 Output
One (1) 12 VDC Output (charge)
One (1) Mini USB Connector
One (1) Audio Input (3.5 mm)
One (1) Reset Button
One (1) Power Switch
IP Camera Tests
Jump to...IP Camera Type
ONVIF (with PTZ control), RTSP, RTP
IP Camera Test
ONVIF Camera Auto-scan
Manual IP Camera Add
UDP/TCP Real-time Video Display
8x Digital Zoom
Snapshot, Record, Photo View and Playback
Analog Video Test
Jump to...Format
HDCVI, AHD, TVI, CVBS
Video Input
One (1) BNC
Supported Video Formats
HDCVI: 1280 x 720p at 25 fps, 30 fps, 50 fps, 60 fps1920 x 1080p at 25 fps, 30 fps2560 x 1440p at 25 fps, 30 fps
TVI: 1280 x 720p at 25 fps, 30 fps, 50 fps, 60 fps1920 x 1080p at 25 fps, 30 fps2048 x 1536 at 18 fps, 25 fps, 30 fps2560 x 1440 at 15 fps, 25 fps, 30 fps2592 x 1944 at 12 fps, 20 fpsSupported Video Formats (Contd.)
AHD: 1280 x 720p at 25 fps, 30 fps1920 x 1080p at 25 fps, 30 fps2560 x 1440p at 15 fps, 18 fps, 25 fps, 30 fps
CVBS: One (1) Channel In, One (1) Channel Out, Supports Auto-adapting PAL/NTSC formats
Camera Test: Real-time Video, HD Coaxial PTZ and RS485 ControlAudio TestFull-screen preview and 8x Digital ZoomSnapshot, Record, Photo View and Video Playback
PTZ Control
Jump to...Protocol
Compatible with over 30 protocols, including Pelco D/P, Samsung, and Panasonic
Baud Rate
150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps
Cable Tester
Jump to...Network Cable
TDR Method
Measurement Resolution: 0.1 m
Accuracy: <= 1 m
Tools
Jump to...Network Tool
IP Address Scan, Ping Test, DHCP Server, Ethernet Link Detection, Ethernet Loop Detection, Data Link Quality Detection, Ethernet Flow Detection
Digital Multimeter (DMM)
AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Forward Voltage, Open and Short Testing
Data Monitor
Capture and analyze command data from controlling device via RS485 Port
LED Flashlight
Two (2) 35 lm LED Lights (Astigmatism)
Audio
Test Microphone or Other Audio Input Device (via 3.5 mm Audio Port)
USB Storage
Test USB Storage Devices (via Mini USB Port)
System Upgrade
Update PFM900-E Tester via Online Update
System Information
Jump to...Screen
4.0-in. TFT, 800 x 480 Resolution, 16.7 Million Colors,Backlight Brightness Adjustable
Storage Capacity
Built-in 8 GB Flash Memory
Language Support
English, Chinese, Czech, French, German, Hebrew, Romanian, Serbian, Spanish, Turkish and others
Automatic Power Off
Disable or 5 to 60 minutes
Keyboard Tone
On/Off
Power
Jump to...Charger
PoE Power Injector
Input: 100 VAC to 230 VAC, 50/60 Hz
Output: 48 V, 15 WBattery
7.4 V Polymer Lithium Ion Battery, 22 Wh
Working Time
8 Hours, after 3 to 4 hours charging
PoE+ Power Out
25.5 W, maximum (802.3at)
Power Out
12 VDC, 2 A, maximum
Certifications
Jump to...Safety
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2014
Electromagnet Compatibility (EMC)
EN 55032:2015
EN 55024:2010+A1:2015
EN 61000-3-2:2014
EN 61000-3-3:2013RoHS
EN 62321-1:2013
Environmental
Jump to...Working Temperature
14 Degree F to 131 Degree F (-10 Degree C to +55 Degree C), 30% to 90% RH
Casing
Plastic
Dimensions
7.48 x 4.53 x 1.47" (190 x 115 x 37.30mm)
Weight
1.10 lb (0.50kg)
Other
Jump to...UPC Code
819290021745
About Dahua DH-PFM900-E Integrated Mount Tester, 4" IPS TFT Screen, 800x480 Resolution
Dahua DH-PFM900-E Integrated Mount Tester, 4" IPS TFT Screen, 800x480 Resolution Features
- Ergonomic, Portable Design with One-hand Operation
- 4-in. IPS TFT Screen, 800 x 480 Resolution
- H.265 and H.264 Dual Codecs
- QWERTY Flip-open Keyboard with 45 Keys
- Supports IP, HDCVI, AHD, TVI, and CVBS Formats
- Audio and RS485 Control
- TDR Network Cable Tests and Digital Multimeter Functions
- PoE+ and 12 VDC, 2 A Power Output
- 7.4 W / 22 Wh Polymer Lithium Ion Battery, up to 8 Hours Normal Operation
- Dual LED Flashlight
Key Features
- Ergonomic, Portable Design with One-hand Operation
- 4-in. IPS TFT Screen, 800 x 480 Resolution
- H.265 and H.264 Dual Codecs
- QWERTY Flip-open Keyboard with 45 Keys
- Supports IP, HDCVI, AHD, TVI, and CVBS Formats
- Audio and RS485 Control
What's in the box:
- DH-PFM900-E Integrated Mount Tester (4 " IPS TFT Screen)
- Polymer Lithium Ion Battery
- Tool Bag
- Power Input Cable for PoE Power Injector
- Network Cable
- BNC Cable
- RS485 Test Connectors
- 12 V Power Output Cable
- Audio Test Leads
- Mini USB/USB Cable
- Digital Multimeter Probe
- 2x Lanyards
- User Manual
- Dahua 3 Year Limited Warranty
