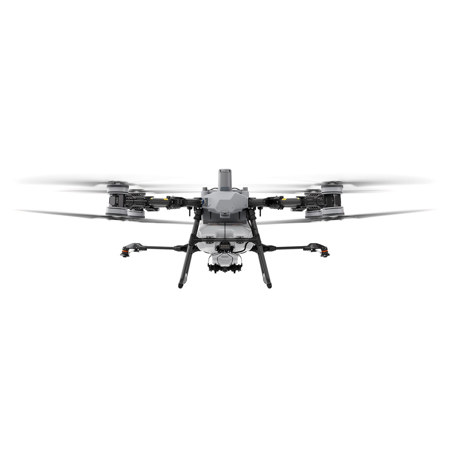

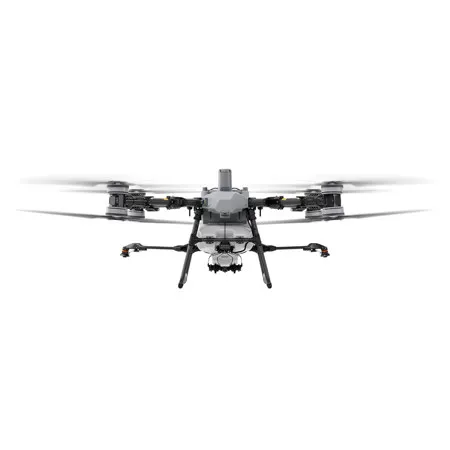

DJI Agras T100 Agricultural Drone with Remote Controller

The T100 Agricultural Drone, a groundbreaking creation twelve years in the making, boasts a maximum payload of 100 kg. Its operational efficiency is doubled, supporting multiple application scenarios, including spraying, spreading, and lifting tasks. Featuring industry-leading safety systems and advanced algorithms, it delivers unparalleled safety performance and an intelligent operational experience.

Spraying System: Efficient Operation, Outstanding Performance.
The T100 comes equipped with a 100 L tank and dual atomizing centrifugal sprinklers, enabling faster flight speeds, wider spray coverage, and higher operation efficiency for large-scale field applications. Orchard users can choose an optional mist sprinkler set, which upgrades flow rates and atomization effects to penetrate dense canopies and reach the undersides of leaves on tall, thickly-canopied trees, ensuring outstanding versatility and performance across various agricultural tasks.

Field Operations
• 36% Increase in Operation Efficiency
• 30L/min High Flow Rate
• 5-13m Effective Spray Width
• 20m/s Maximum Flight Speed

Orchard Operations
• 40 L/min Four Sprinklers
• 25% Increase in Effective Spray Width
• 65% Increase in Leaf Underside Coverage

Dual Atomization Centrifugal Sprinkler
New flow channel design, particle size range 50-500 microm, suitable for most operational scenarios.

Magnetic Drive Impeller Pumps
Corrosion-resistant, stable, and reliable, an optimized impeller structure and increased chamber volume meet the high flow demands of orchard scenarios.

Rear Four Sprinklers Array
It expands the spray width for orchard operations while maintaining uniform coverage. It also minimizes visual interference from mist, enhancing operational reliability and precision.

Dual-Channel Electromagnetic Flow Meter
Real-time precise flow detection and dynamic control ensures high-precision operations. It avoids direct contact with the liquid, preventing corrosion and enhancing durability.

Spreading System: Bigger Loads, Faster Flow, Better Efficiency
The T100 Spreading System has been fully upgraded, with double the load capacity, and a 270%increase in flow rate. Equipped with a brand-new screw feeder, it is suitable for various granulars and can handle spreading scenarios in large fields, orchards, aquaculture, and more.

• 150L (100kg) High Capacity Spreading Tank
• 66% Increase in Operation Efficiency
• 400kg/min Ultra-High Flow Rate
• 10m Effective Spreading Width
• 20m/s Maximum Flight Speed

Brand-New Screw Feeder
Spreading accuracy doubled, flow rate increased by 270%, and granulars applicability further enhanced.

High-Precision Weighing Sensor
Provides real-time, accurate display of granular quantity, allowing for precise usage and refilling, effectively minimizing waste. Automatic flow rate calibration and cloud-save operation templates, making spreading operation more accurate and convenient.

Centrifugal Spreader Disc
Ensures uniform spreading across the entire flow range with outstanding results. Features a stainless steel cap for durability and strength.

Large Loading Gate
Allows for easy and convenient bulk loading.

Four Feeder Types
Supports four interchangeable feeder sizes for precise flow and greater adaptability across seeding, fertilizing, and feeding.

Extra-Large Feeder
Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.

• Recommended application rate: 75-750 kg per hectare
• Recommended particle size: 0.5-10 mm

Medium Feeder
Suitable for granulars such as rice seeds.

• Recommended application rate: 22.5-120 kg per hectare
• Recommended particle size: 4-6 mm

Safety System: Industry-Leading Safety System, Safer With Every Flight

Omnidirectional Sensing, Precise Obstacle Detection
T100 is equipped with advanced technologies, including a new LiDAR, millimeter-wave radar, and a Penta-Vision system. These features enable comprehensive environmental awareness, allowing for precise obstacle detection.

LiDAR
Capable of capturing dense spatial point cloud up to 300,000 points per second, providing a detailed view of complex terrains.

Millimeter-Wave Radar
The front radar performs 5,000 vertical airspace scans per second combined with 360 Degree horizontal mechanical rotation scanning, along with a rear radar offering a more comprehensive detection range.

Penta-Vision System
The quad-vision system, paired with an FPV low-light full-color camera, facilitates unrestricted viewing of flight scenes in front, behind, left, right, and below, while intelligently detecting obstacles. The FPV camera employs virtual gimbal technology, offering an ultra-wide field of view complemented by stabilization algorithms, to achieve electronic image stabilization for smoother, more fluid footage.

Night Navigation Light
In addition to the existing low beam lights, new front-facing high beams and downward supplemental lighting have been added, ensuring safer nighttime operations.

Smarter Obstacle Bypassing

Obstacle Type Detection
The system can detect various obstacle types, including wires, poles, high-voltage towers, and trees. It intelligently selects the optimal path, ensuring smooth and seamless bypassing around obstacles.

Automatic Obstacle Position Memory
The system automatically remembers obstacle locations, enabling more precise bypassing during subsequent flights. Users can save obstacles to a field with a single click, increasing safety with every flight.

Terrain Following Without Mapping
The system can achieve Terrain Following of slopes up to 90 Degree without prior mapping. It also supports intelligent obstacle bypassing, addressing the operational requirements of most mountainous and orchard environments with efficiency and precision.

AR Safety Assistance

Real-Time LiDAR Point Cloud Display
Real-time LiDAR point cloud visualization offers clearer and more intuitive obstacle detection compared to FPV. This is especially valuable when dealing with small obstacles or operating at night, ensuring enhanced operational awareness and safety.

AR Display for People, Vehicles, and Obstacles
Detect utility pole and vehicles during takeoff and landing with AR visualization for enhanced safety. During flight, it further enables AR display of obstacle types and distances, ensuring precise and informed operations in real time.

AR Flight Route Prompts
The system generates AR flight paths to assist with route guidance, providing enhanced precision and efficiency for every operation.

AR Return-To-Home Projection
AR display of return-to-home point locations and safe landing projections assist with return and landing operations, ensuring greater accuracy and safety for every operation.

Enhanced Obstacle Avoidance Capabilities
With advanced multi-sensor fusion and upgraded algorithms, the T100 achieves a higher success rate in avoiding various obstacles. Its precision in detecting smaller obstacles is significantly improved, ensuring safer and more reliable operations.

Lift System: Your Transport Assistant
The T100 transforms into a transport solution. With a lifting maximum capacity of 100 kg. Features like auto balance control , weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.

Auto Balance Control
Utilizing a triaxial force sensor, the drone can automatically adjust its posture during flight to eliminate swinging, ensuring safer operations.

Real-Time Weighing
A triaxial force sensor provides real-time weight monitoring to prevent overloading and ensure operational safety.

Marking Loading and Unloading Points by Mobile
Operators can use their mobile phones, in conjunction with the RTK module, to add load and unload points, which are then synced to the remote controller. Pilots can quickly locate destinations using AR projection on the controller.

Automatic Flight
Freely select loading and unloading points and reach them with a single click.

Upgraded Lifting System
The optional dual battery version has a lifting capacity of 80kg, suitable for scenarios requiring long endurance. For extreme situations where hanging cargo gets trapped or tangled, you have the option to heat and cut the cable, freeing the drone.

Propulsion System: Powerful, Efficient, Reliable Under High Temperatures
The coaxial dual-rotor design, paired with carbon fiber propellers, delivers a comprehensive upgrade in performance, efficiency, and safety redundancy.

Powerful Performance
• 82 kg Single-Axis Max Thrust
• 20 m/s Max Speed
• Compact Size, High Load Capacity

Energy Efficiency
39% Increase in Full-Load Power Efficiency

Safety Redundancy
• Propeller Stop Protection
• Low battery performance under heavy load

Efficient Operations
• Increase in Spray Width
• Increase in Operation Speed
• Enhanced Penetration for Orchards

62-Inch Carbon Fiber Propellers
Carbon fiber propellers offer greater rigidity and lighter weight, resisting deformation even at high temperatures. With optimized airfoil and increased diameter, efficiency is improved by 32%.
