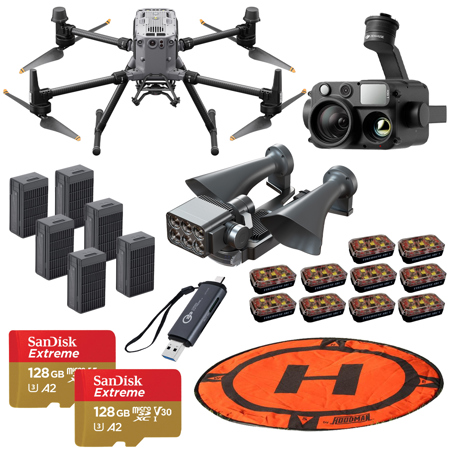

DJI Matrice 350 RTK Drone, Bundle with Zenmuse H30T Thermal Gimbal Camera, Care Enterprise Basic Plan, 6x Battery, 10x Strobe Light and 2x 128GB Memory Card

SKU: DJICPEN535BA

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

DJI Matrice 350 RTK Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Edition

    RTK

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated, FPV Flight Camera, Camera Included

  • Model

    DJI Matrice 350 RTK

  • Skill Level

    Enterprise

Aircraft

Jump to...
  • Color

    Gray

  • Maximum Flight Time

    55 minutes

  • Takeoff Weight

    20.28 lbs (9.2kg)

  • Max Ascent/Decent Speed

    Ascent: 6m/s
    Descent Speed (vertical): 5m/s
    Tilted Descent Speed: 7m/s

  • Max Horizontal Speed

    23m/s

  • Max Wind Speed Resistance

    12m/s

  • Max Takeoff Altitude

    16404.2' (5000m)

  • Max Pitch Angle

    30 Degree

  • Max Tilt Angle

    30 Degree

  • Max Angular Velocity

    Pitch: 300 Degree /s
    Yaw: 100 Degree /s

  • Global Navigation Satellite System

    Aircraft:
    GPS + GLONASS + BeiDou + Galileo

    Remote Controller:
    GPS + Galileo + BeiDou

  • Hovering Accuracy Range

    With moderate or no wind:

    Vertical:
    +/-0.1 m (with vision positioning)
    +/-0.5 m (with GNSS positioning)
    +/-0.1 m (with RTK positioning)

    Horizontal:
    +/-0.3 m (with vision positioning)
    +/-1.5 m (with GNSS positioning)
    +/-0.1 m (with RTK positioning)

  • Operating Temperature

    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

  • IP Rating

    Aircraft: IP55
    Remote Controller: IP54

  • Internal Storage

    No

  • Recommended microSD Cards

    TOSHIBA EXCERIA PRO 32GB micro SD HC II
    SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
    TOSHIBA EXCERIA PRO 64GB micro SD XC II
    SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
    SAMSUNG_EVO_128GB_micro SD 3 XC I
    TOSHIBA EXCERIA M303E 32GB micro SD HC I
    TOSHIBA EXCERIA M303E 64GB micro SD XC I
    TOSHIBA EXCERIA M303E 64GB micro SD XC I
    TOSHIBA EXCERIA M303 128GB micro SD XC I
    SAMSUNG_EVO_64GB_micro SD 3 XC I

Remote Controller

Jump to...
  • Operating Temperature

    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

  • Remote Controller

    with Remote Controller

  • Max Operating Time

    Built-in Battery: approx. 3.3 hours
    Built-in Battery + External Battery: approx. 6 hours

  • Camera Still Resolution

    Video Only

  • Video Resolution

    1080p

  • Lens

    FPV Camera: FOV: 142 Degree

  • Supported File System

    FAT32 (<= 32 GB), exFAT (> 32 GB)

  • Gimbal Option

    No Gimbal

Sensing

Jump to...
  • Sensing Type

    Omnidirectional

  • Forward

    Detection Range: 2.3 to 131.2' / 0.7 to 40 m
    Field of View: 65 Degree (Horizontal) / 50 Degree (Vertical)

  • Backward

    Detection Range: 2.3 to 131.2' / 0.7 to 40 m
    Field of View: 65 Degree (Horizontal) / 50 Degree (Vertical)

  • Lateral

    Detection Range: 2.3 to 131.2' / 0.7 to 40 m
    Field of View: 75 Degree (Horizontal) / 60 Degree (Vertical)

  • Upward

    Detection Range: 2.0 to 98.4' / 0.6 to 30 m
    Field of View: 75 Degree (Front-to-Back) / 60 Degree (Side-to-Side)

  • Downward

    Detection Range: 2.0 to 98.4' / 0.6 to 30 m
    Field of View: 65 Degree (Side-to-Side) / 50 Degree (Side-to-Side)

  • Operating Environment

    Vision Systems: Surfaces with clear patterns and adequate lighting (> 15 lux)
    Infrared Sensing Systems: Large, diffuse, and reflective obstacles (reflectivity >10%)

Video Transmission

Jump to...
  • Video Transmission System

    O3 Enterprise

  • Operating Frequency

    Aircraft:
    2.4000-2.4835 GHz
    5.150-5.250 GHz (CE: 5.170-5.250 GHz)
    5.725-5.850 GHz

    Remote Controller:
    2.4000-2.4835 GHz
    5.725-5.850 GHz

  • Transmitter Power (EIRP)

    Aircraft:
    2.4000-2.4835 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.150-5.250 GHz (CE: 5.170-5.250 GHz):
    < 23 dBm (CE)

    5.725-5.850 GHz:
    < 33 dBm (FCC/SRRC)
    < 14 dBm (CE)

    Remote Controller:
    2.4000-2.4835 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.725-5.850 GHz:
    < 33 dBm (FCC)
    < 14 dBm (CE)
    < 23 dBm (SRRC)

  • Max Transmission Distance

    Max Transmission Distance:
    20km (FCC)
    8km (CE/SRRC/MIC)
    (unobstructed, interference-free)

    Max Transmission w/Interference:
    Low Interference, Obstructed by Buildings: 0-0.5 km
    Low Interference, Obstructed by Trees: 0.5-3 km
    Strong Interference, Unobstructed: 1.5-3 km (urban)
    Medium Interference, Unobstructed: 3-9 km (suburban)
    Low Interference, Unobstructed: 9-20 km (suburb/seaside)

Battery

Jump to...
  • Capacity

    Intelligent Flight Battery: 5880 mAh

    Remote Controller:
    Internal Battery: 6500 mAh
    External Battery: 4920 mAh

  • Voltage

    Intelligent Flight Battery: 44.76 V

    Remote Controller:
    Internal Battery: 7.2 V
    External Battery: 7.6 V

  • Battery Material

    Lithium ion

  • Energy

    Intelligent Flight Battery: 263.2 Wh
    Remote Controller:
    External Battery: 37.39 Wh

  • Battery Quantity

    6

Physical

Jump to...
  • Dimensions

    Aircraft:
    Unfolded, Without propellers: 31.88 x 26.37 x 16.92" (810 x 670 x 430mm)
    Folded, With propellers: 16.92 x 16.53 x 16.92" (430 x 420 x 430mm)
    Diagonal Wheelbase: 35.23" (895mm)

  • Weight

    Remote Controller:
    Without WB37 battery: Approx. 2.75 lbs (1.25kg)
    With WB37 Battery: Approx. 3.13 lbs (1.42 kg)

    Intelligent Flight Battery:
    Approx. 2.97 lbs (1.35kg)

  • UPC Code

    192223281608

3 Accessories for DJI Matrice 350 RTK Drone, Bundle with Zenmuse H30T Thermal Gimbal Camera, Care Enterprise Basic Plan, 6x Battery, 10x Strobe Light and 2x 128GB Memory Card

  • All Accessories (3)
  • Landing Gear (1)
  • Drone Accessories (2)

About DJI Matrice 350 RTK

Be at the forefront of aerial technology with the Matrice 350 RTK Drone, a state-of-the-art drone platform that sets new industry standards. This next-generation drone is equipped with an advanced video transmission system, an efficient battery system, and comprehensive safety features. Its robust payload and expansion capabilities make it a powerhouse for any aerial operation.

Experience effortless flight performance with the Matrice 350 RTK Drone. Built to withstand tough conditions, it boasts powerful propulsion, an enhanced protection rating, and superior flight performance. With a maximum flight time of 55 minutes, an IP55 protection rating, a maximum payload of 2.7 kg, a maximum flight altitude of 5000m, and a maximum wind speed resistance of 12 m/s, this drone is designed to tackle a wide array of challenges. It operates efficiently in temperatures ranging from -4 degrees to 122 degrees Fahrenheit.

The Matrice 350 RTK Drone features the DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds and a maximum transmission distance of 20 km. Its four-antenna transceiver system on both the aircraft and the remote controller intelligently selects the optimal antennas for signal transmission, significantly improving anti-interference capabilities and optimizing transmission stability.

The DJI RC Plus controller, equipped with a 7-inch high-bright screen, supports Dual Operator Mode and offers an operating time of up to six hours. It's IP54 rated, making it dustproof and waterproof for reliable operation in adverse weather conditions. The controller's buttons and dials can be customized to fit users' habits, delivering an intuitive and flexible experience.

The Matrice 350 RTK Drone is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport.

Enhanced flight safety features include an arm lock detection function, a night-vision FPV camera, a six-directional binocular vision system, and a CSM Radar for obstacle detection. The drone's multi-layered redundancy design ensures maximum flight safety.

The Matrice 350 RTK Drone supports a variety of payloads and comes with an E-Port open interface. It can carry up to three payloads simultaneously, making it ideal for different operation scenarios like public safety, inspection, and mapping.

The drone supports high-precision mapping and air-to-ground coordination. Through Live Mission Recording, it can generate and store flight route files for automated operation. It also supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.

The Matrice 350 RTK Drone also prioritizes user data security with features like media data encryption, local data mode, one-tap clear all device data, AES-256 video transmission encryption, and a cloud API ecosystem.

With the Matrice 350 RTK Drone, you can integrate a variety of third-party payloads like gas detectors, loudspeakers, multispectral sensors, computing modules, and more. It supports highly customizable mobile app development and can directly connect to third-party cloud platforms via the DJI Pilot 2 app.

Experience the future of drone technology with the Matrice 350 RTK Drone, a drone designed to inject innovative strength into any aerial operation.

DJI Matrice 350 RTK Features

  • Discover unparalleled precision with the Matrice 350 RTK's advanced RTK module, ensuring centimeter-level accuracy for surveying, mapping, and inspection needs
  • Elevate your flying experience with the Matrice 350 RTK's six-directional obstacle avoidance system, providing enhanced safety and security during every flight
  • Embark on extensive missions with confidence, thanks to the Matrice 350 RTK's remarkable flight time of up to 55 minutes, perfect for long-range endeavors
  • Unleash your creativity with the Matrice 350 RTK's adaptable payload compatibility, empowering you to equip cameras, sensors, and LiDAR for a vast array of applications
  • Conquer challenging environments effortlessly, as the Matrice 350 RTK boasts a rugged design that withstands dust, water, and shocks, ensuring durability in any conditions
  • Seamlessly take flight, regardless of experience level, with the user-friendly Matrice 350 RTK, designed for effortless operation even by beginners
  • Rely on the Matrice 350 RTK's commitment to safety and reliability, featuring essential features that prevent accidents and safeguard the aircraft during operation
  • Unlock limitless potential with the Matrice 350 RTK's expandable capabilities, allowing compatibility with a wide range of accessories for enhanced performance and versatility
  • Plan intricate missions effortlessly using the Matrice 350 RTK's advanced flight planning system, empowering users to create waypoints, flight paths, and adjust altitude and speed with precision
  • Harness the power of data analysis using the Matrice 350 RTK's comprehensive suite, enabling the processing, visualization, and tracking of progress through 2D and 3D maps, reports, and more

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Advanced Matrice 350 RTK Drone with 55-minute max flight time and IP55 protection
  • Enhanced DJI O3 Enterprise Transmission for triple-channel 1080p live feeds up to 20 km
  • Dual-Battery System with TB65 batteries for extended, uninterrupted flights
  • Comprehensive safety with arm lock indicator, night-vision FPV, and six-directional sensing
  • Versatile payload capacity supporting up to three devices for diverse operational needs
  • Integrated data security with encryption and customizable control via DJI Pilot 2 app

What's in the box:

  • DJI Matrice 350 RTK Drone
  • RC Plus Remote Controller
  • 2x Landing Gear
  • Propeller (Pair)
  • WB37 Controller Battery
  • 4x Spare Gimbal Damper
  • Cleaning Tools
  • Rubberport Cover (Set)
  • Carrying Case
  • Screws and Tools
  • DJI 1 Year Limited Warranty
  • Bundle Includes:
  • DJI Zenmuse H30T Gimbal Camera
  • Care Enterprise Basic Plan
  • 6x TB65 Intelligent Flight Battery
  • LP35 96W Searchlight & Broadcasting System
  • 10x Strobe Light
  • 2x 128GB Memory Card
  • OTG Card Reader
  • 5' Launch Pad
