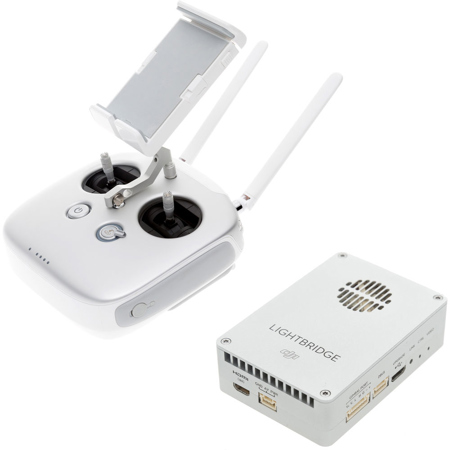

DJI Lightbridge 2 Full HD Video Downlink with OSD and Control

DJI Lightbridge 2 breaks technical limits to allow you to travel further and see more clearly. The integrated controller and intelligent algorithms set a new standard for wireless HD image transmission by lowering latency and increasing maximum range and reliability.

Professional HD Broadcasting
Broadcast everything live - from global news events to sports to your local concerts and gatherings, all directly to large-screen displays, multi-million YouTube audiences and standard TV channels. The Lightbridge 2 has been designed from the ground up to meet the requirements of professional broadcasting at high frame rates and HD clarity. USB, mini-HDMI and 3G-SDI ports support video output at up to 1080p/60fps or broadcast standard output of 720p/59.94fps and 1080i/50fps.

Responsive Navigation, Real-time Video
With a new, powerful hardware encoder and advanced algorithms, total latency has been significantly reduced to as low as 50ms. So fly FPV, see what your camera sees and capture footage as never before. Aircraft and camera control signals are also transmitted over Lightbridge 2 at lightning fast speeds, giving you smooth, responsive navigation as you fly or direct your camera.

Incredible Range
Lightbridge 2 wirelessly transmits HD video at a range of up to 1.2 miles (2 km).All this to ensure that you will be able to explore distant locations and capture any perspective, always receiving a crystal clear image of your camera's sight.

Integrated Design
Start broadcasting within seconds. The Lightbridge 2 greatly reduces the number of parts you must carry, mount and set up. With the receiver fully integrated into a new remote controller, simply connect your display equipment, power your system on and you are ready to go. The included remote provides easy access to vital functions. It has dedicated hardware controls for photo and video capture, gimbal pitch control, sensitive flight control sticks and dedicated Return To Home and customizable buttons. Additionally, an internal, rechargeable 6,000mAh battery lets you fly longer and makes charging easy and quick.

Intelligent, Dynamic Transmission
Lightbridge 2 is intelligent. It automatically adapts in real time to keep latency low while maintaining a strong signal. For uninterrupted transmission, a high-speed processor chooses the best channel and bandwidth based on current distance and electromagnetic environment. When using the DJI GO app, you can choose to maximize video quality or focus on lower latency and manually change to your desired transmission channel.

Team Up
Transmit the same live HD view wirelessly to several devices by connecting multiple remote controllers in Master-Slave mode. Increase efficiency by working together to accomplish complex imaging and broadcasting tasks. Lightbridge 2 supports up to one Master and three Slave devices at the same time, so the pilot, gimbal operator, director and broadcast team can all receive the video signal and monitor the shooting process from different places.

Absolute Control on Your Device
Use the powerful DJI GO app to control your camera, access intelligent navigation settings and receive a live HD view of what the camera sees, on your paired mobile device. Flight information including current status, full telemetry, location, heading and more is displayed and updated live, making every flight safe and convenient.

Ready To Go
Lightbridge 2 supports a range of professional-level DJI products. This means that you can build your custom system out of parts that work perfectly together, because they were designed to. If you have an existing system based on the previous version of Lightbridge or are currently using an analog or Wi-Fi-based video downlink, you can easily upgrade to the Lightbridge 2.

Stream To Anything
Output full HD video to almost any type of display mobile phones and tablets, desktop displays and TVs can all receive live video output. You can even output video to several devices simultaneously through a combination of ports, either USB and 3G-SDI or USB and mini-HDMI.

Dual Video Stream
Lightbridge 2 can transmit video from two cameras simultaneously: the main camera used to capture video and photographs and a second camera showing the First Person View (FPV).Output a Picture-In-Picture view via mini-HDMI or 3G-SDI to a TV or other external display, where the FPV is layered with the main camera view. The views and controls are completely independent so that the gimbal control will not affect the pilot view or the aircraft's navigation and vice versa.
