DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens

SKU: DJIRONIN48K MFR: CP.RN.00000351.01
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the Ronin 4D's 8K full-frame CMOS sensor for unmatched image quality.

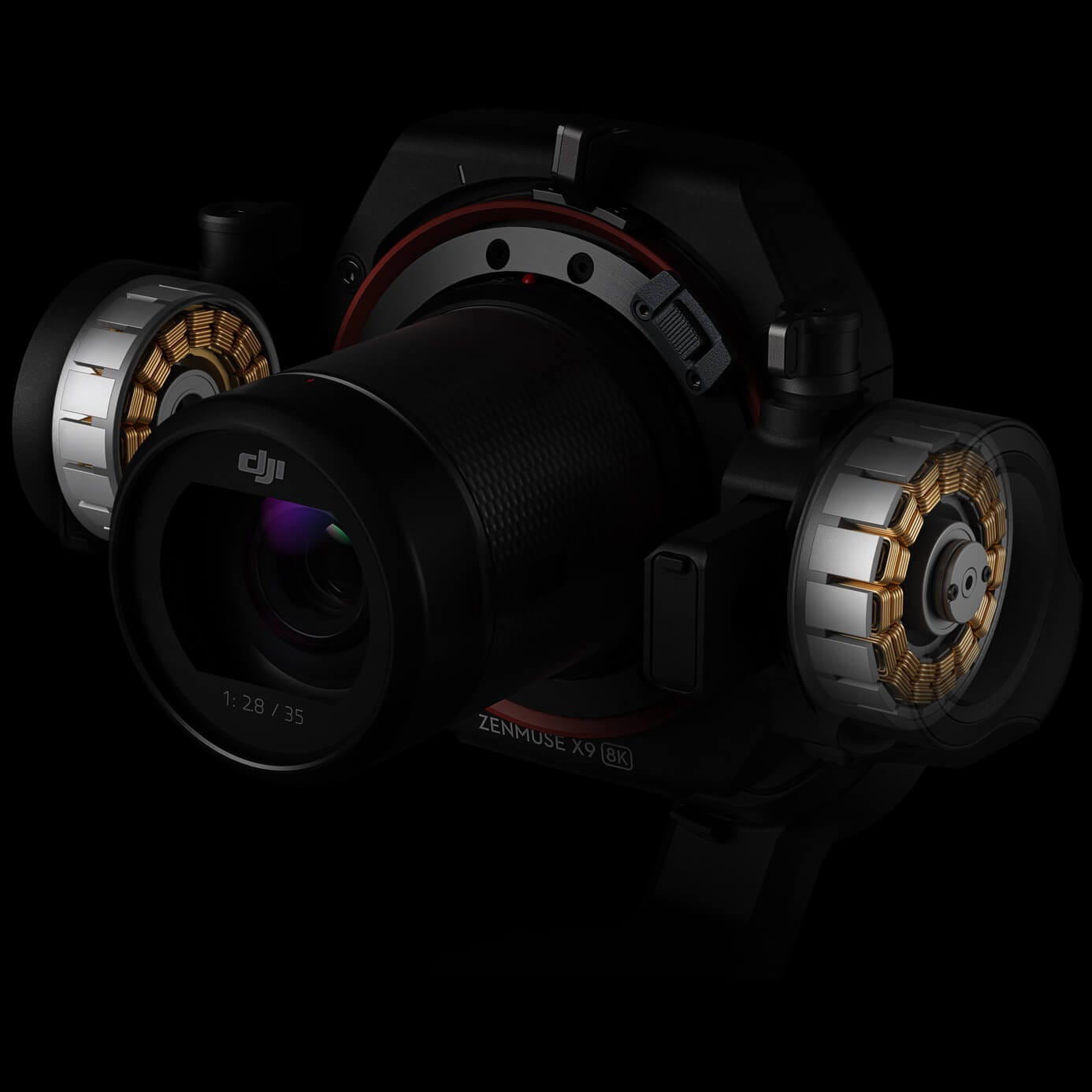

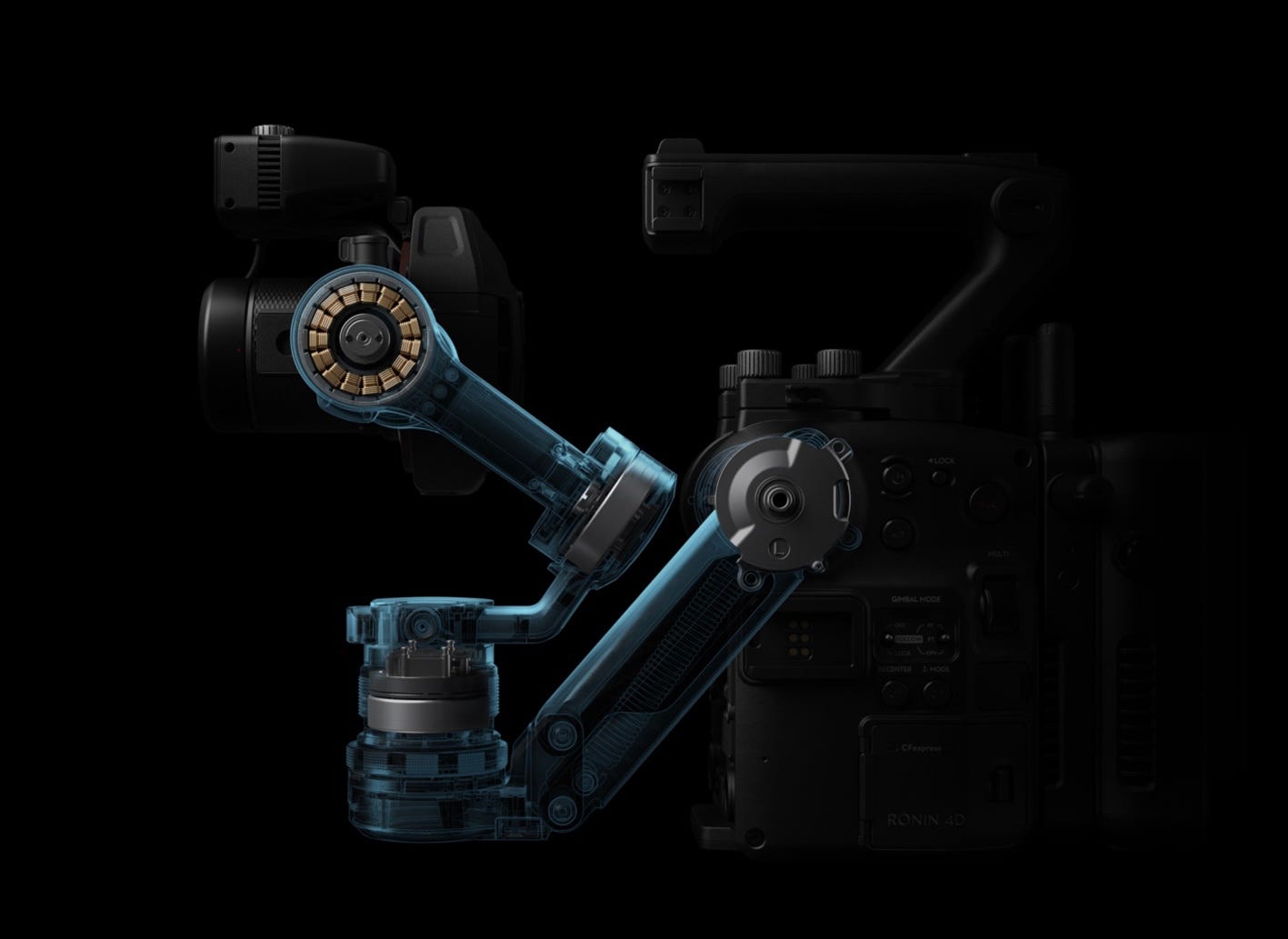

  • Achieve cinematic shots using the integrated 4-axis stabilization, perfect for smooth, professional video.
  • Enjoy versatile shooting with the DL PZ 17-28mm lens, ideal for various scenarios from wide to telephoto.
  • Experience superior low light performance with dual native ISO, ensuring clear footage in any setting.
  • Record in Apple ProRes RAW for ultimate flexibility in post-production and color grading workflows.
  • Utilize the LiDAR Range Finder for precise autofocus, ensuring your subject is always sharp and in focus.
See More Product Details

Product Options

On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DJI Ronin 4D Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    X9 Gimbal Base Cap
    Ronin 4D Gimbal Base Cap
    Hand Grip Extended Control Stick
    Top Handle
    Left Hand Grip Strap
    Right Hand Grip Strap
    LiDAR Range Finder/Focus Motor Cable
    Power Adapter
    8x AC Power Cable
    TB50 Charging Adapter
    Base Plate
    USB-A to USB-C Data Cable
    Flat Head Screwdriver
    3mm Ball-End Hex Key
    2.5mm Ball-End Hex Key

  • Additional Included Items (Contd.)

    1.5mm Ball-End Hex Key
    3x 10mm 1/4"-20 Screw
    X9 Counterweight (106g)
    Ronin 4D Carrying Case

General

Jump to...
  • Max Operating Time

    150 minutes (Approx.)

  • Intelligent Features

    ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Operating Temperature

    14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

  • Dimensions (L x W x H)

    Main Body: 9.25 x 4.52 x 6.29" (235 x 115 x 160mm)
    Overall: 12.16 x 11.41 x 10.9" (309 x 290 x 277mm)

  • Weight

    Gimbal: 2.29 lbs (1.04kg) (Approx.)
    Main Body: 3.19 lbs (1.45kg) (Approx.)
    Overall: 10.29 lbs (4.67kg) (Approx.) (after installing all modules in the combo, excluding lens and storage card)

  • Sensor Size

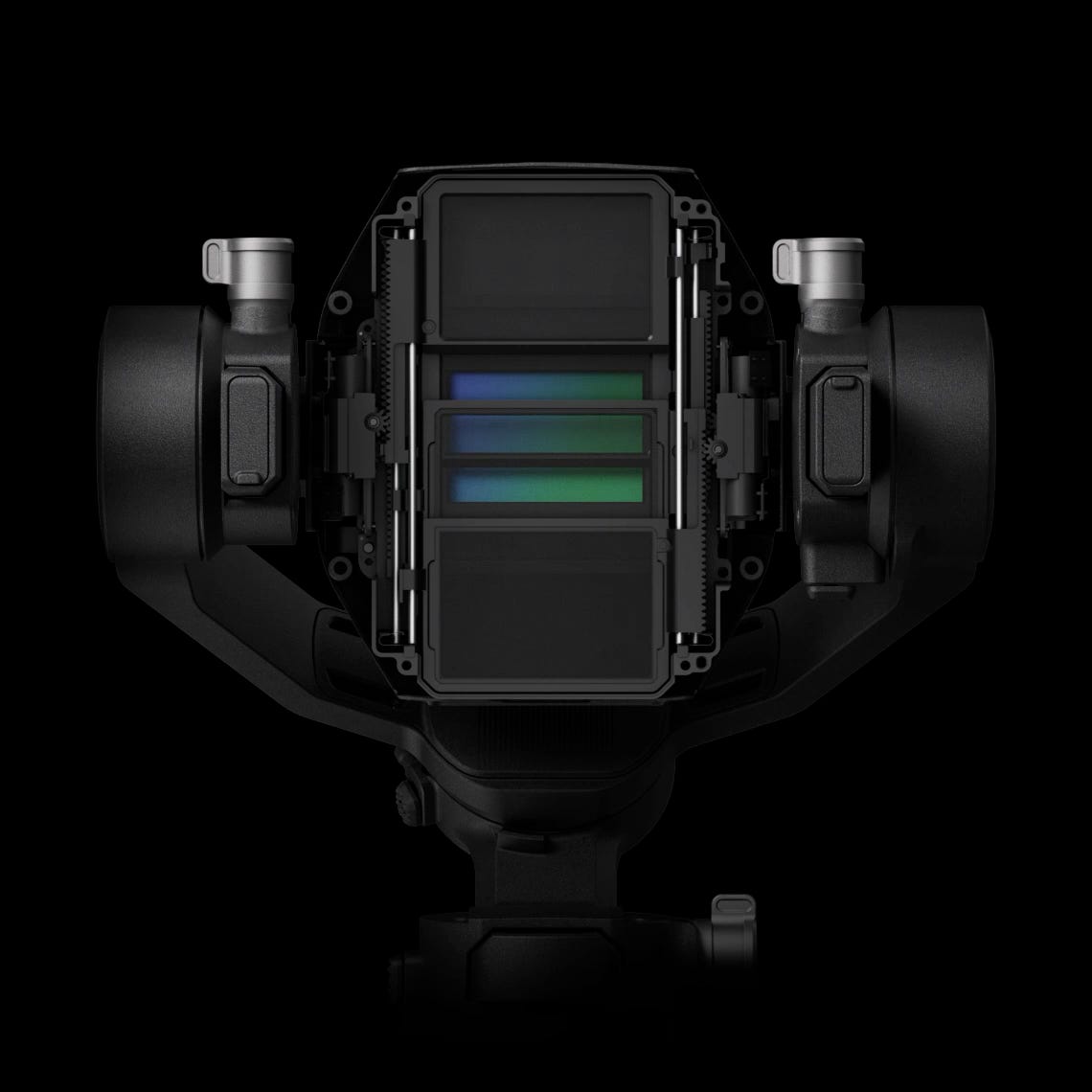

    35mm full-frame CMOS image sensor

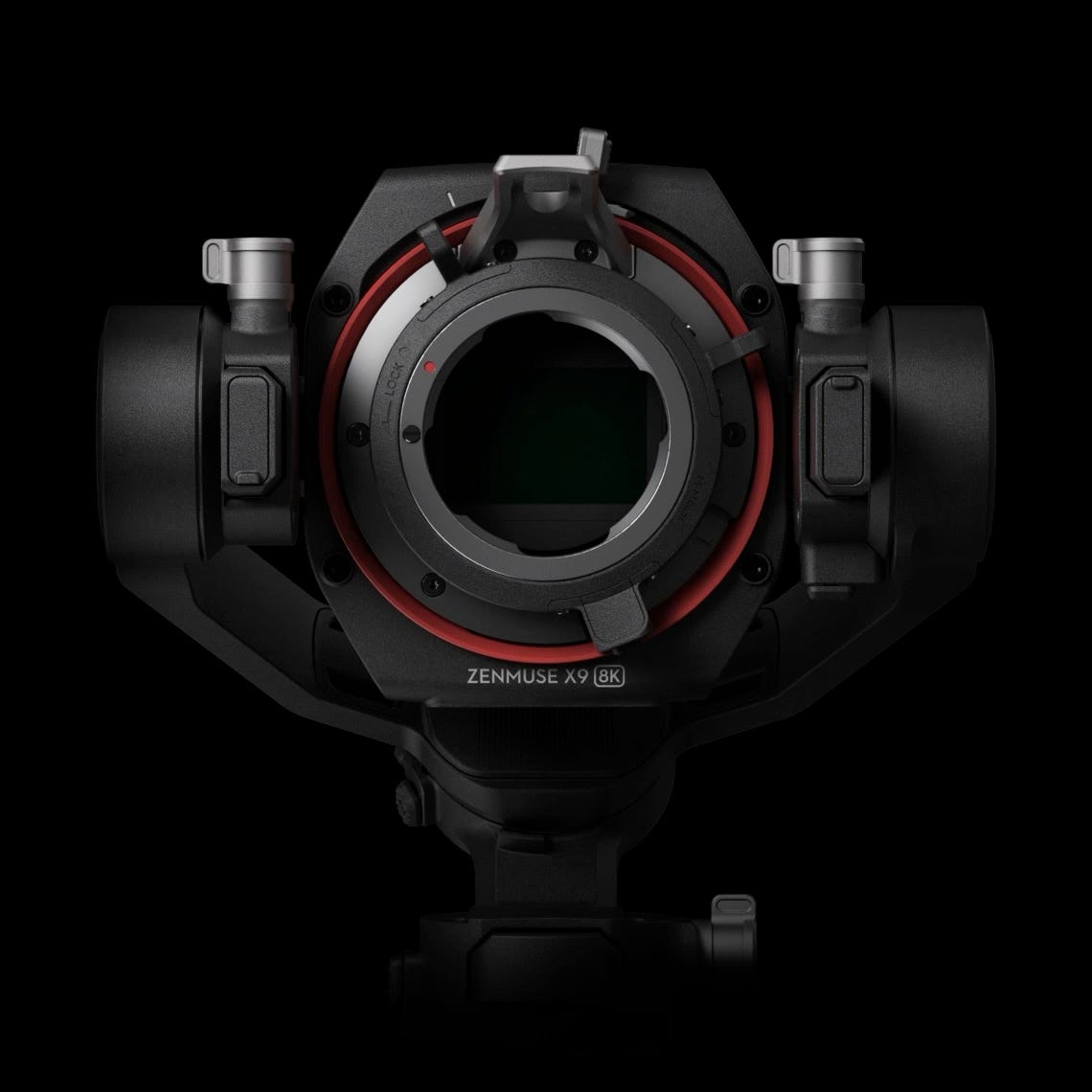

  • Base Lens Mount

    DX Mount, and support for other mount units

  • Supported Lens Mounts

    DL mount (included), L mount, M mount, E mount (third-party), PL mount (third-party)

  • DL Lens

    DJI DL 18mm F2.8 ASPH
    DJI DL 24mm F2.8 LS ASPH
    DJI DL 35mm F2.8 LS ASPH
    DJI DL 50mm F2.8 LS ASPH
    DJI DL PZ 17-28mm T3.0 ASPH Lens

  • Dynamic Range

    14+ stops

  • White Balance

    Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB

  • Gamma

    D-Log, Rec.709, HLG

  • EI Range

    X9-8K: EI 200 to EI 6400
    With Dynamic Range Expansion off: Dual native ISO 320/1600
    With Dynamic Range Expansion on: Dual native ISO 800/4000

  • Shutter Speed

    Electronic Rolling Shutter 1/24s-1/8000s

  • ND

    Built-in 9-stop ND filters:
    Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)

  • Focus Control

    Autofocus, Manual Focus, Automated Manual Focus

  • Supported File System

    exFAT

  • Recording Format

    Apple ProRes RAW HQ/Apple ProRes RAW
    H.264 (4:2:0 10-bit)

  • Storage Media

    DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD

  • DJI PROSSD 1TB Recording Format

    No restriction on recording format

  • CFexpress 2.0 Type B Recording Format

    ProRes 422 HQ/LT:
    6K: 23.976/24/25/29.97/30fps
    C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
    2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

    H.264:
    C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
    2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

  • USB-C SSD Recording Format

    ProRes 422 HQ/LT:
    C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
    2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

    H.264:
    C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
    2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

  • Built-in Mic

    Built-in 2-ch stereo

  • Audio Format

    LPCM 2-ch, 24-bit 48kHz

  • Mechanical Range

    Pan: +/-330 Degree
    Tilt: -75 Degree to 175 Degree
    Roll: -90 Degree to 230 Degree
    Z-Axis Range: approx. 130mm

  • Controllable Range

    Pan: +/-285 Degree
    Tilt: -55 Degree to +155 Degree
    Roll: +/-35 Degree

  • Max Control Speed ( Degree /s)

    DJI Master Wheels or DJI Force Pro:
    Tilt: 360 Degree /s
    Roll: 360 Degree /s
    Pan: 360 Degree /s
    Ronin 4D Hand Grips:
    Tilt: 120 Degree /s
    Roll: 120 Degree /s
    Pan: 120 Degree /s

  • Maximum Z-Axis Payload

    4.4 lbs (2kg) (Including 2.29 lbs (1.04kg) gimbal)

  • Angular Vibration Range

    +/-0.01 Degree

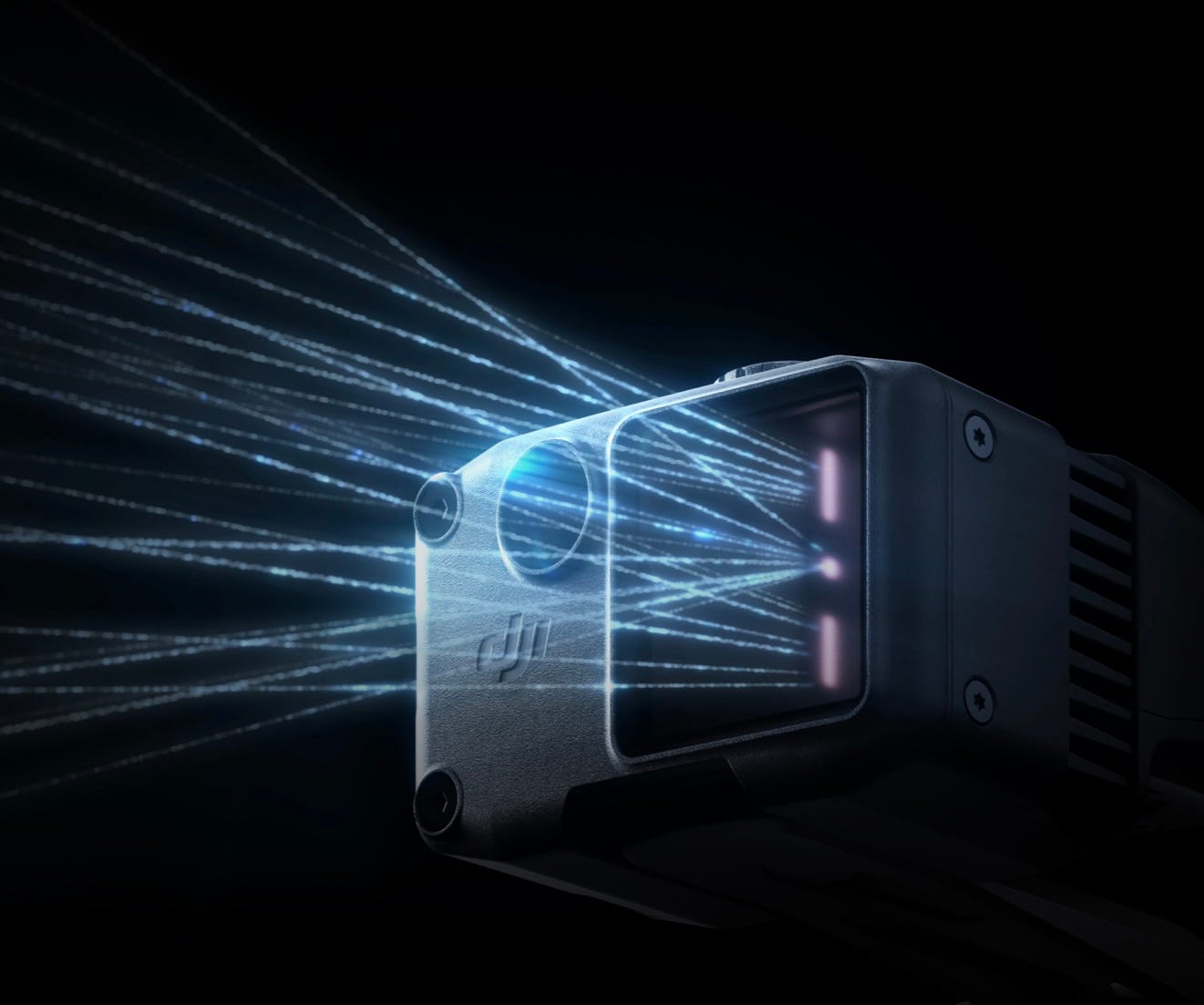

LiDAR Range Finder

Jump to...
  • Operating Temperature

    -10 Degree to 40 Degree C (14 Degree to 104 Degree F)

  • LiDAR Range Measurement Precision

    0.3-1m ( +/-1%)
    1-10m ( +/-1.5%)

  • FOV

    30cm to 3m @>18% reflectivity 60 Degree (horizontal) x 45 Degree (vertical)
    30cm to 10m @>18% reflectivity 60 Degree (horizontal) x 7 Degree (vertical)

  • Safety Rating

    Class 1 (IEC 60825-1:2014) (safe for human eyes)

  • Operating Environment

    Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
    DO NOT use in environments with dense fog or aim it at or through glass surfaces.

  • Laser Wavelength

    940 nm

  • Single Pulse Width

    Two kinds of pulses emit in circulation: 5ns and 33.4ns.

  • Max Laser Power

    6 W

  • Dimensions (L x W x H)

    2.79 x 1.85 x 1.33" (71 x 47 x 34mm)

  • Weight

    3.1 oz (88g)

Main Monitor

Jump to...
  • Screen Size

    5.5" (13.97cm) (diagonal)

  • Resolution

    1920 x 1080

  • Refresh Rate

    60 Hz

  • Max Brightness

    1000 cd/sq. m

  • Screen

    Rotational LCD touchscreen

Battery

Jump to...
  • Battery

    TB50 Intelligent Battery

  • Capacity

    4280 mAh

  • Energy

    97.58 Wh

  • Voltage

    22.8 V

  • Max Charging Voltage

    26.1 V

  • Max Charging Power

    180 W

  • Charging Temperature Range

    41 Degree to 104 Degree F (5 Degree to 40 Degree C)

  • Charging Time

    Approx. 1.5 hours (with standard 86W power adapter)

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

O3 Pro Video Transmission

Jump to...
  • Max Transmission Distance

    20,000' (approx. 6km, FCC-compliant)

  • Max Transmission Resolution

    1920 x 1080 @60fps (and Frame Rate)

  • Minimum End-to-End Latency

    100 ms or 68 ms

  • Wireless Frequency

    Non DFS frequency band:
    2.400-2.483 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz

    DFS Frequency Band:
    5.250-5.350 GHz
    5.470-5.600 GHz
    5.650-5.725 GHz

  • Transmitter Power (EIRP)

    2.400-2.4835 GHz:
    <33 dBm (FCC); <20 dBm (SRRC/CE/MIC)
    5.150-5.250 GHz
    <23 dBm (FCC/SRRC/MIC)
    5.250-5.350 GHz:
    <30 dBm (FCC); <23 dBm (SRRC/MIC)
    5.470-5.600 GHz, 5.650-5.725 GHz:
    <30 dBm (FCC); <23 dBm (CE/MIC)
    5.725-5.850 GHz:
    <33 dBm (FCC/SRRC); <14 dBm (CE)

  • Max Bandwidth

    40 MHz

  • Max Bitrate

    50 Mbps

Interface

Jump to...
  • Main Body

    1x 3.5mm TRS Stereo Input Jack (supports mic, plug-in power mic, and line inputs)
    1x 3.5mm Stereo Output Jack
    1x USB3.1 Type-C Data Port
    1x 6-pin 1B DC-IN (DC 12-30 V)
    1x Battery Mount Power Port (female)
    1x 4D Expansion Plate Data Port (female)
    1x High-Bright Main Monitor Port
    2x Hand Grips Port
    1x Top Handle Port
    1x HDMI Type-A Video Output Port

  • X9 Gimbal

    2x LiDAR Range Finder/ Focus Motor Port

  • TB50 Battery Mount

    1x Battery Mount Power Port (male)
    1x TB50 Battery Port

4D Video Transmitter

Jump to...
  • 4D Video Transmitter Port

    1x 4D Expansion Plate Data Port (male)
    4x SMA Antenna Connector
    1x USB 3.1 Type-C Data Port
    1x Battery Mount Power Port (female)
    1x Battery Mount Power Port (male)

  • Dimensions

    3.5 x 0.82 x 5.39" (89 x 21 x 137mm)

Remote Monitor

Jump to...
  • Screen Size

    7" (17.78cm) (diagonal)

  • Max Brightness

    1500 cd/sq. m

  • Screen Resolution

    1920 x 1200

  • Refresh Rate

    60 Hz

  • Max Battery Life

    Approx. 2 hours

  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Power System

    DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)

  • Remote Monitor Port

    1x 3.5mm Stereo Jack
    1x microSD Card Slot
    1x HDMI Type-A Video Input Port
    1x Remote Monitor Expansion Plate High-Speed Port (female)
    1x Remote Monitor Accessory Expansion Port
    1x USB 3.1 Type-C Data Port

  • Remote Monitor Expansion Port

    1x Remote Monitor Expansion High-Speed Port (male)
    1x HDMI 1.4 Type-A Video Output Port
    1x 6-pin 1B DC-IN (DC 6.8-17.6 V)
    1x 3G-SDI (Level A) BNC Video Output Port

  • Dimensions

    Includes monitor cage: 8.5 x 2.28 x 6.53" (216 x 58 x 166mm)

  • Supported Accessories

    Ronin 4D Hand Grips
    High-Bright Main Monitor
    LiDAR Range Finder
    Zenmuse X9 Focus Motor

  • Extension Cable Length

    6.56' (2m)

  • Weight

    25.57 oz (725g) (Approx.) (including Ronin 4D Hand Grip Adapter and Hand Grips Adapter Cable)

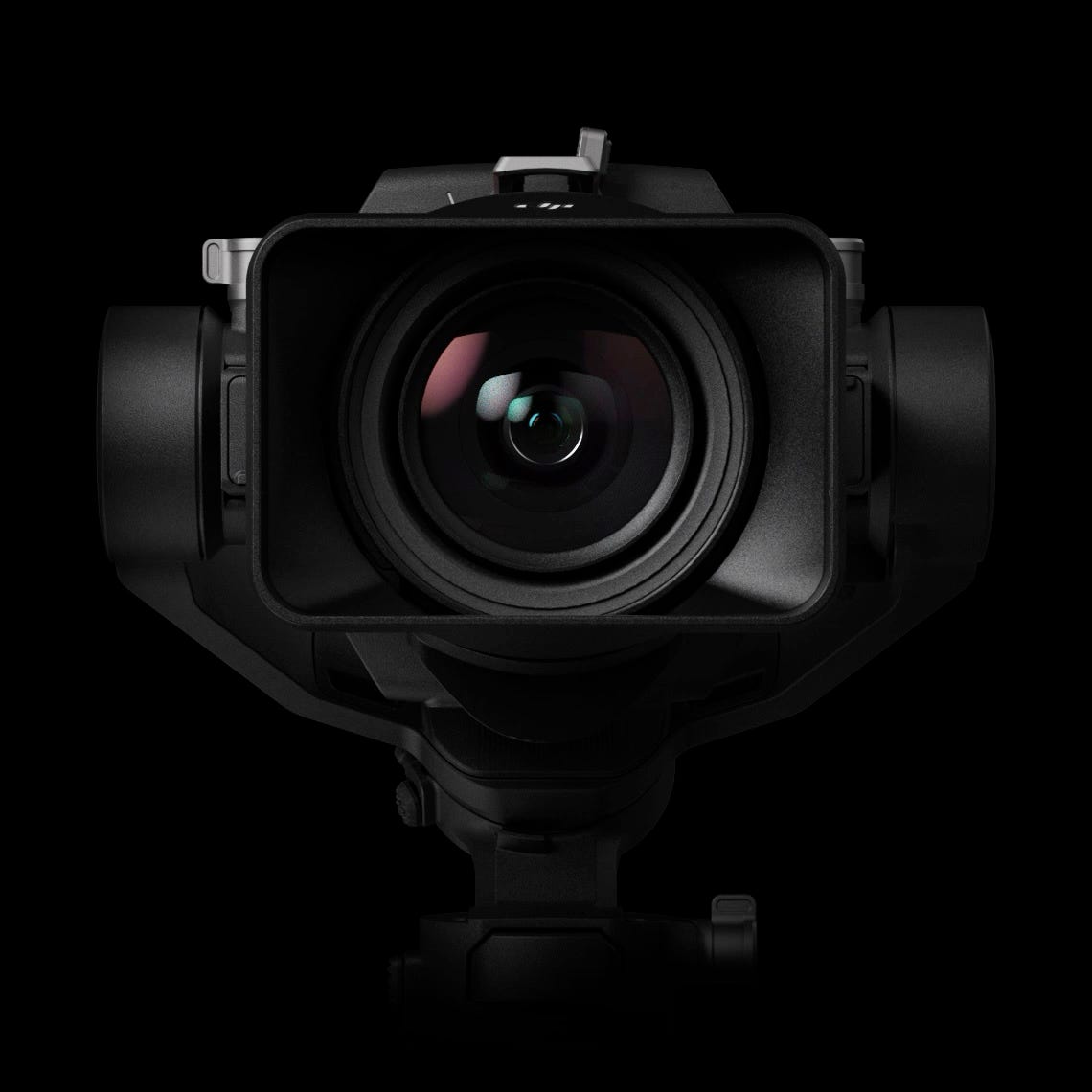

DL PZ 17-28mm T3.0 ASPH Lens

Jump to...
  • Imager Size

    Full frame (36 x 24mm)

  • Focal Length

    17-28mm

  • MOD (From Object to Image Plane)

    17mm: 0.19m
    28mm: 0.26m

  • Aperture Range

    T3.0 to T22

  • Filter Diameter

    67mm

  • Elements/Groups

    13/11

  • Lens Mount

    DL mount

  • Operating Temperature

    14 Degree to 131 Degree F (-10 Degree to 55 Degree C)

  • Storage Temperature

    50 Degree to 95 Degree F (10 Degree to 35 Degree C)

  • Storage Humidity

    45%-75%

  • Dimensions (Dia. x L)

    External Zoom Motor Excluded:
    3.07 x 3.94" (78 x 100.1mm) (to mount, hood excluded)
    3.07 x 4.61" (78 x 117.2mm) (to mount, hood included)

  • Weight

    Lens hood included: 18.34 oz (520g) (Approx.)

  • UPC Code

    6941565975300

38 Accessories for DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens

  • All Accessories (38)
  • Lenses (5)
  • Transmitters & Receivers (2)
  • Memory & Storage (4)
  • Range Finder (2)
  • Recording Monitor (3)
  • Lens Adapters (1)
  • Weights (1)
  • Monitor & Recorder (1)
  • Batteries & Power Supply (2)
  • Follow Focus & Lens Support (1)
  • Grips & Handles (1)
  • Card Readers (1)
  • Expansion Unit (1)
  • Adapters & Mounts (1)
  • Bags & Cases (1)
  • Microphones & Audio (3)
  • Digital Cinema Lenses (2)
  • Flash & Lighting (6)

About DJI Ronin 4D

Imaging Excellence Redefined

The DJI Ronin 4D 8K Cinema Camera features 8K video at 60fps, a 29MP full-frame sensor with dual native ISO, 14.7 stops of dynamic range, and built-in 9-stop ND filters. It offers unparalleled image quality, exceptional low-light performance, extensive dynamic range, and versatile lens compatibility. This all-in-one solution will empower solo filmmakers and production crews to create high-quality footage, streamline multi-camera setups, and support a wide range of creative visions. DJI's Ronin 4D 8K Combo Kit is promising option to elevate filmmaking experiences and accommodate various production needs with its extensive capabilities and accessories ecosystem.

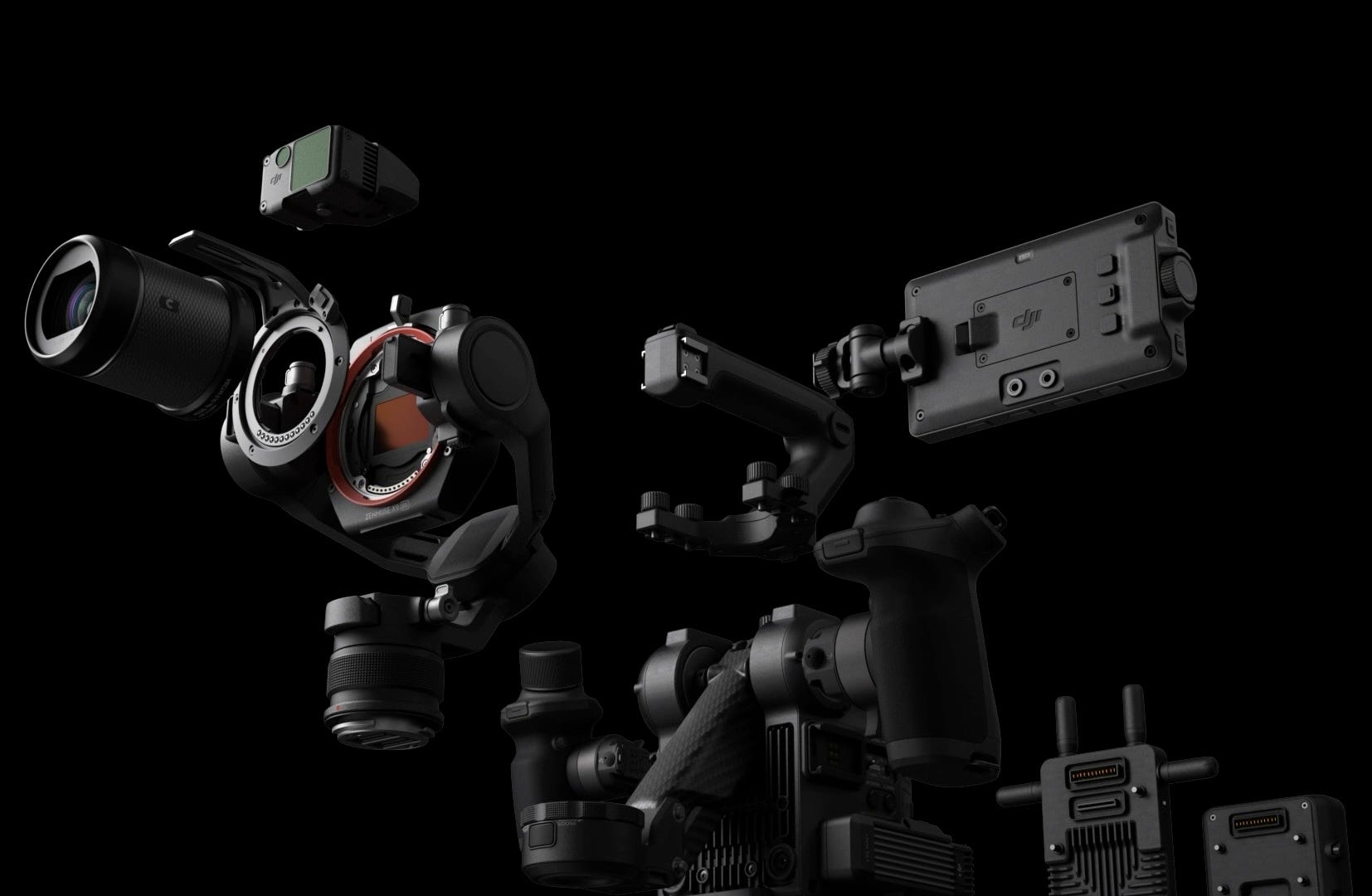

Integrated Design

DJI Ronin 4D offers a completely unique design. Crafted with carbon fiber and aluminum magnesium, its solid body integrates the imaging, stabilization, and focusing systems, as well as wireless transmission and control. This avoids time-consuming setup and enables quicker shooting.

DJIRONIN48K

Cinematic Imaging System

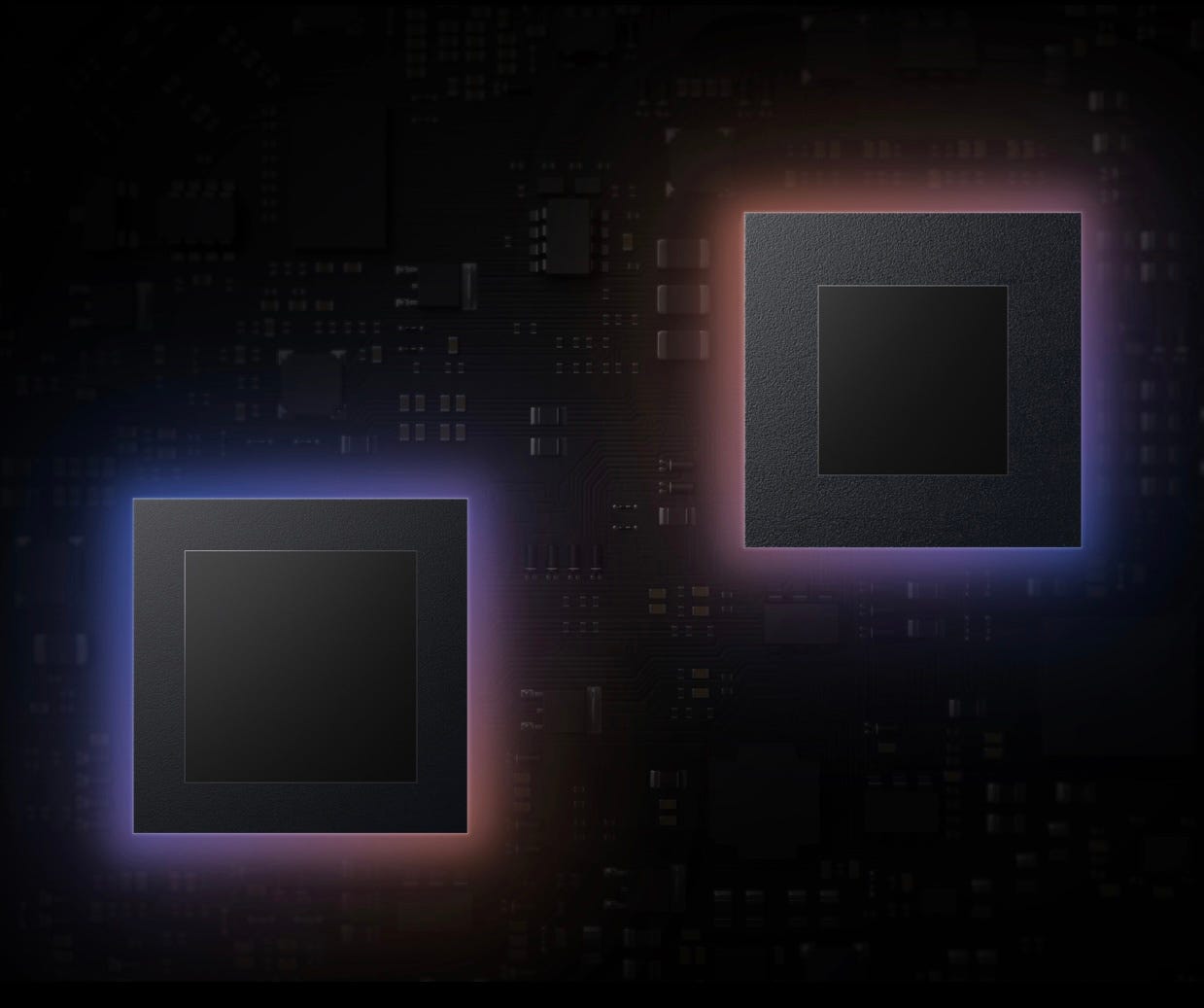

Processing Power

Ronin 4D is equipped with Zenmuse X9, DJI’s flagship full-frame camera. It also features DJI’s latest image processing system, CineCore 3.0. This system uses DJI’s proprietary chip to provide advanced processor architecture, offering extremely high-performance computing power in a compact cinema camera. CineCore 3.0 allows Ronin 4D to support internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video. It also supports up to 8K/75fps and 4K/120fps video recording, delivering multiple options for professional-level creation.

DJIRONIN48K

Resolution

DCI 8K (8192×4320)/60fps video retains every little detail, from rich foliage to inspiring architecture, skin texture to strands of hair, all with flawless quality. For those who need to output in 4K, recording in 8K offers unprecedented creative options with more flexibility for cropping, re-composing, and stabilizing videos in post.

DJIRONIN48K

High ISO

Zenmuse X9 supports dual native ISO. X9-8K defaults to EI 320/1600. With Dynamic Range Expansion on, X9-8K can support EI 800/4000, while X9-6K supports EI 800/5000, which records images with exquisite detail and minimal noise, even when filming an evening cityscape or beach, or a scene lit by dim candlelight.

DJIRONIN48K

Dynamic Range

With 14+ stops of dynamic range, Zenmuse X9 delivers natural transitions of highlights and shadows in complex lighting conditions such as backlit scenes and direct sunlight. These traditionally difficult scenes can now be captured easily and with confidence.

DJIRONIN48K

Color Science

DJI Cinema Color Science (DCCS) is a comprehensive system comprising the CineCore image processing platform, the DCCS color engine, D-Gamut color space, and D-Log curve, all culminating from years of imaging experience by DJI. It's designed to unlock the full potential of professional aerial and ground imaging equipment, offering creators more room for creativity and vividly recreating the kaleidoscopic colors seen by the human eye. In addition, X9 supports the industry-standard ACES workflow for effortless compatibility with the color systems of other cinema cameras.

DJIRONIN48K
DJIRONIN48K

Built-In 9-Stop ND Filters

X9 has 9-stop built-in high-quality ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to an internal motorized system. These filters were also designed to match and compliment the color science of Ronin 4D.

DJIRONIN48K

DL Prime Lenses

X9’s standard DL mount supports a set of compact full-frame prime lenses. The housings are made of lightweight, monocoque carbon fiber, so each lens weighs just 180 g.

DJIRONIN48K

DL Zoom Lens

In addition to prime lenses, X9 is compatible with DJI’s first cinema zoom lens DL PZ 17-28 mm T3.0 ASPH, which covers ultra-wide to wide-angle focal lengths with a minimum object distance of 0.19 m, delivering ultra-high resolution from center to edge. The lens body is made of magnesium aluminum alloy and weighs only approximately 520 g, making it a perfect match for the X9 gimbal camera from size to weight.

DJIRONIN48K

Interchangeable Mounts

X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount as well as third-party mounts like Leica L, Leica M, Sony E, and ARRI PL (E-mount and PL-mount units are provided by third parties). Ultra-wide, f/0.95 large-aperture, power zoom, macro, and anamorphic lenses that are compatible with traditional cinema cameras also work on X9, providing flexible lens options.

Steady in Every Way

4-Axis Stabilization

DJI Ronin 4D adds a Z-Axis to the traditional 3-axis gimbal, which effectively decreases vertical camera shake and offers stabilization performance on par with a dolly. The four axes work together with a downward ToF sensor, forward and downward dual-visual sensors, a built-in IMU and barometer, and an advanced new algorithm to bring the overall stabilization to a whole new level.

DJIRONIN48K

Integrated Gimbal Camera

Ronin 4D integrates the imaging and stabilization systems while keeping only the sensor and necessary optical components in the gimbal camera. The tilt axis of the gimbal uses dual symmetric motors, whereas both the pan axis and the roll axis are designed with an additional stiffness buffer.

DJIRONIN48K

LiDAR Focusing System

LiDAR Range Measurement

The LiDAR Range Finder can cast up to 43,200 ranging points within a 10-meter detection range. Compared with phase detection autofocus (PDAF), Ronin 4D’s LiDAR Focusing System can focus faster, without compromising the image quality or relying on the surface texture of the subject. This is especially useful in low-light environments and results in exceptional focusing capabilities compared to other cinema cameras.

DJIRONIN48K

Features

  • Highest Resolution: 8K/75fps (Full-frame 2.39:1) and 8K/60fps (Full-frame 17:9)
  • Highest Frame Rate: 4K/120fps (Full-frame 17:9)
  • Recording Codec: Apple ProRes RAW, Apple ProRes 422 HQ and H.264
  • Native ISO: 320/1600 (Default) and 800/4000 (Dynamic Range Expansion on)
  • Highest Dynamic Range: 14.7 stops

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the Ronin 4D's 8K full-frame CMOS sensor for unmatched image quality.
  • Achieve cinematic shots using the integrated 4-axis stabilization, perfect for smooth, professional video.
  • Enjoy versatile shooting with the DL PZ 17-28mm lens, ideal for various scenarios from wide to telephoto.
  • Experience superior low light performance with dual native ISO, ensuring clear footage in any setting.
  • Record in Apple ProRes RAW for ultimate flexibility in post-production and color grading workflows.
  • Utilize the LiDAR Range Finder for precise autofocus, ensuring your subject is always sharp and in focus.

What's in the box:

  • DJI Zenmuse X9-8K Gimbal Camera
  • Main Body
  • DL PZ 17-28mm T3.0 ASPH Lens (CP.ZM.00000148.01)
  • LiDAR Range Finder
  • High-Bright Main Monitor
  • Right Hand Grip
  • Left Hand Grip
  • PROSSD 1TB Card
  • PROSSD Mount
  • Ronin 4D RAW License Key
  • TB50 Intelligent Battery
  • TB50 Battery Mount
  • USB-C High-Speed Data Cable
  • DX Mount Body Cap
  • DX Mount Lens Cap
  • (See the Specification Section for Additional Included Items)
  • DJI 1 Year Limited Warranty
