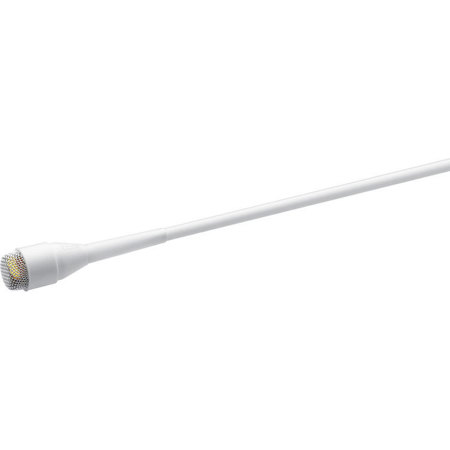

DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 1/8" Mini-Jack Connector, Normal SPL, High-Sens, White

SKU: DPA60OCCW34 MFR: 4060-OC-C-W34
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality with the d:screet Core 4060's omnidirectional design.
  • Enjoy versatile use with included high & soft boost grids, tailoring the microphone's sound.
  • Achieve clear recordings with excellent noise reduction, ideal for film and broadcast.
  • This miniature microphone offers a wide frequency range, capturing every nuance of sound.
  • The durable build ensures this DPA microphone withstands daily use in demanding environments.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet Core 4060 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    20 mV/Pa; -34 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 23 dB(A) re. 20 MuPa (max. 26 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 35 dB (max. 38 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 129 dB SPL peak

  • Dynamic range

    Typ. 106 dB

  • Max. SPL, peak before clipping

    134 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 1/8" Mini-Jack Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

Models
DPA Microphones d:screet Core 4060 Mini Omni Mic, Mini-Jack, Normal SPL, White
$625.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet Core 4061 Mini Omni Mic, Mini-Jack, Loud SPL, Black
$625.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet 4060 Mini Omni Mic, Mini-Jack, Normal SPL, Brown
$529.95

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
Connector1/8" Mini Mono1/8" Mini Mono1/8" Mini Mono

About DPA Microphones d:screet Core 4060

Take your audio recording to the next level with the d:screet Core 4060 Miniature Omnidirectional Microphone. This high-sensitivity microphone, equipped with a hardwired 1/8" mini-jack connector, is a product of DPA's innovative technology, originally developed for hearing aids and measurement microphones.

The d:screet Core 4060 is not just a microphone; it's a versatile audio solution tailored to meet diverse application needs. It's built on the foundation of the original d:screet 4060, the first miniature microphone from DPA, and carries forward its legacy of superior sound quality and durability.

This microphone series is designed to withstand the harshest conditions, thanks to its unique Double Vent Protection System that offers exceptional resistance to humidity and sweat. The 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm ensures optimal sound capture, while the Kevlar-reinforced cable relief is built to endure everyday wear and tear in challenging environments.

The d:screet Core 4060 offers the flexibility to modify the acoustic response by selecting the appropriate grid. Each microphone comes with two anodized stainless steel grids - the Soft Boost Grid and the High Boost Grid. These grids, which can be easily detached and cleaned, provide a soft boost at different frequencies, making this microphone ideal for head-mounted applications or chest-placement, respectively.

Despite its miniature size, this microphone delivers an impressively accurate omnidirectional pattern, eliminating the need to aim it directly at the sound source. It's less sensitive to handling noise, pop, and wind noise, making it a preferred choice for theater, television, and film applications. It's also perfect for capturing nuanced speech and close-miking a wide range of instruments.

With the ability to handle sound pressure levels up to 134 dB before clipping, the d:screet Core 4060 is well-suited for applications where the sound source is remote or damped. It's available in four colors - black, brown, beige, and white - and there's also a heavy-duty version for more demanding situations.

The omnidirectional pattern of this microphone picks up sound equally from all directions, delivering natural and realistic audio. While omni mics can produce feedback in live situations, their equal frequency response, high sound pressure level handling, and resistance to wind, pop, or handling noise make them a versatile addition to your audio toolbox.

The d:screet Core 4060 features a unique MicroDot termination and a changeable adapter for easy configuration with a wireless system. This flexible adapter system ensures consistent performance and compatibility with numerous professional wireless systems. Hardwired versions without the MicroDot connector are also available for various versions.

In conclusion, the d:screet Core 4060 Miniature Omnidirectional Microphone is a compact, robust, and versatile audio solution that delivers superior sound quality in diverse application scenarios.

DPA Microphones d:screet Core 4060 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality with the d:screet Core 4060's omnidirectional design.
  • Enjoy versatile use with included high & soft boost grids, tailoring the microphone's sound.
  • Achieve clear recordings with excellent noise reduction, ideal for film and broadcast.
  • This miniature microphone offers a wide frequency range, capturing every nuance of sound.
  • The durable build ensures this DPA microphone withstands daily use in demanding environments.

What's in the box:

  • DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 1/8 " Mini-Jack Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
