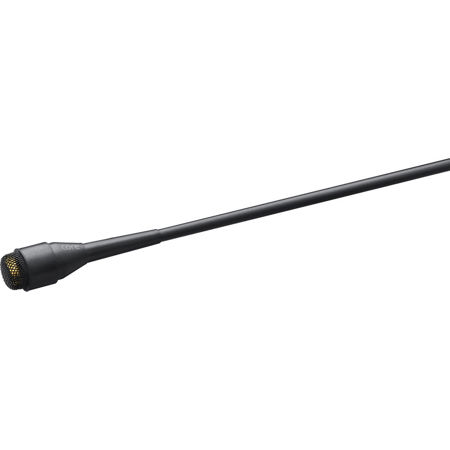

DPA Microphones d:screet CORE 4062 Miniature Omnidirectional Microphone with MicroDot Connector, Extreme SPL, Black

SKU: DPA62OCCB00 MFR: 4062-OC-C-B00
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for film and broadcast.
  • Experience exceptional sound quality; the d:screet CORE 4062 ensures clear voice pickup.
  • Achieve versatile connectivity using the MicroDot connector on this omnidirectional mic.
  • Enjoy a wide dynamic range, capturing everything from whispers to loud speech at 154dB.
  • This miniature microphone is discreet and easy to conceal for on-camera talent use.
  • Benefit from high sensitivity, ensuring detailed audio capture even in challenging conditions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the d:screet CORE 4062 microphone suitable for high SPL environments?

The d:screet CORE 4062 is designed to handle extreme sound pressure levels up to 154 dB without clipping, thanks to its specialized sensitivity adjustment. This makes it ideal for close-miking loud sources such as drums and brass instruments, as well as high-intensity settings like engine compartments.

Can the d:screet CORE 4062 be used with wireless systems?

Yes, the d:screet CORE 4062 features a MicroDot termination that, when used with the appropriate adapter, can be easily configured to work with a wide range of professional wireless systems, ensuring versatile and seamless integration for wireless audio capture.

How does the d:screet CORE 4062 ensure durability in harsh conditions?

The microphone is built with a Double Vent Protection System to protect against humidity and sweat, and it also has a Kevlar-reinforced cable relief that is designed to withstand the constant twists and pulls typical in challenging recording environments.

What accessories are included with the d:screet CORE 4062 to modify its acoustic response?

The d:screet CORE 4062 comes with two interchangeable grids – the Soft Boost Grid and the High Boost Grid – which can be used to adjust the microphone's acoustic response depending on the placement and desired sound characteristics.

Is the d:screet CORE 4062 microphone only available in black?

While the d:screet CORE 4062 is offered in black for a discreet appearance, it is also available in beige to accommodate different aesthetic preferences and use cases.

Shopper : Why Did You Choose This?Scott L : Best extreme SPL lav mic

Reviews about this item

Review Summary

DPA Microphones d:screet CORE 4062 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB:
    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
    High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 33 dB(A) re. 20 MuPa (max. 37 dB(A))
    ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 61 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 139 dB SPL peak

  • Dynamic range

    Typ. 106 dB

  • Max. SPL

    Peak before clipping: 154 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300m (984.24')

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter
    With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    MicroDot

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Microphone length

    12.7mm (0.50")

  • Cable length

    1.8m (5.91')

  • Weight

    7.5g (0.26 oz) including Cable and MicroDot connector

  • UPC Code

    5713055014223

Models
DPA Microphones d:screet CORE 4062 Omni Mic with MicroDot, Extreme SPL, Black
$520.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones SC4060 Instrument Omnidirectional Microphone Kit
$529.95

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

DPA Microphones IMK-SC4061 Instrument Microphone Kit

SKU: DPAIMKSC4061

MFR: KIT-4061-OL-IMK

$529.95

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorMicrodotMicrodotMicrodot
Mic Application-Multi-UseMulti-Use

About DPA Microphones d:screet CORE 4062

A pinnacle of audio precision and versatility, the d:screet CORE 4062 Miniature Omnidirectional Microphone stands out in the d:screet series, which includes the 4060, 4061, 4063, and 4071 Omni Miniature Mics. Each model in this series is meticulously engineered for specific sound capture scenarios, ensuring that professionals can select the ideal microphone for their unique recording needs. The d:screet CORE 4062 is a testament to DPA's commitment to innovative, high-quality, and durable audio solutions, drawing upon the brand's heritage of integrating advanced technology from hearing aids and measurement microphones into their designs.

The d:screet CORE 4062 is a robust and portable microphone that boasts a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm, optimized for capturing extreme sound pressure levels (SPL) up to 154 dB without distortion. This makes it the perfect companion for recording high-volume sources such as drums, brass instruments, and even the intense environment of an engine compartment or exhaust pipes. Its black color option ensures a discreet presence in various settings.

This microphone's omnidirectional polar pattern is engineered to capture sound with equal sensitivity from all directions, delivering a natural and realistic audio experience. While omni mics are ideal for ambient sound capture and large sound sources, the d:screet CORE 4062 also excels in close-miking applications due to its balanced frequency response and resistance to proximity effect, wind, pop, and handling noise.

DPA's innovative Double Vent Protection System equips the microphone with exceptional resistance to humidity and sweat, while the Kevlar-reinforced cable relief is designed to endure the rigors of daily use in demanding environments. The acoustic response can be tailored using the supplied Soft Boost and High Boost grids, made from anodized stainless steel for durability and ease of maintenance.

The flexibility of the d:screet CORE 4062 extends to its compatibility with wireless systems, thanks to DPA's unique MicroDot termination and a range of changeable adapters. This ensures seamless integration with a variety of professional wireless systems, including but not limited to AKG, Sennheiser, Shure, and Sony. For wired applications, an XLR adapter is also available, providing users with comprehensive connectivity options.

Whether for live performances, studio recording, or broadcasting, the d:screet CORE 4062 Miniature Omnidirectional Microphone with MicroDot Connector, Extreme SPL, is a versatile and reliable choice for audio professionals seeking pristine sound quality and resilience in the most challenging audio environments.

DPA Microphones d:screet CORE 4062 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Modular adapter system fits most professional wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for film and broadcast.
  • Experience exceptional sound quality; the d:screet CORE 4062 ensures clear voice pickup.
  • Achieve versatile connectivity using the MicroDot connector on this omnidirectional mic.
  • Enjoy a wide dynamic range, capturing everything from whispers to loud speech at 154dB.
  • This miniature microphone is discreet and easy to conceal for on-camera talent use.
  • Benefit from high sensitivity, ensuring detailed audio capture even in challenging conditions.

What's in the box:

  • DPA Microphones d:screet CORE 4062 Miniature Omnidirectional Microphone with MicroDot Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
