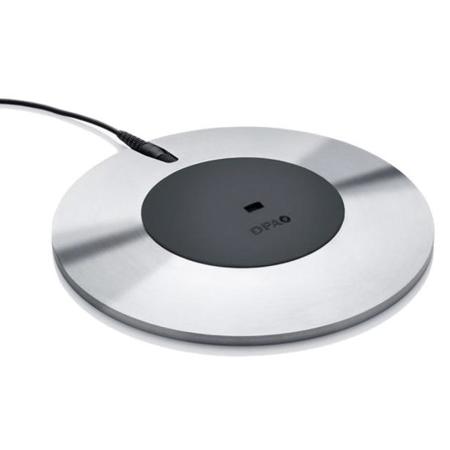

DPA Microphones BLM4060 Boundary Layer Microphone

SKU: DPABLM4060 MFR: 4060-OL-D-S01-001
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA boundary microphone, ideal for clear sound.
  • Achieve natural, uncolored recordings using this omnidirectional microphone's flat frequency response.
  • Enjoy a low-noise floor (23dB(A)) for clean recordings, perfect for critical sound applications.
  • The durable stainless steel base ensures stable, reliable placement for consistent audio capture.
  • Use this boundary microphone on tables or walls for discreet, high-quality sound pickup.
  • With a MicroDot connector, this microphone offers versatile connectivity in various setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones BLM4060 Specifications

  • Directional characteristics

    Omnidirectional, hemisphere

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser element

  • Frequency range

    +/- 2dB: 20Hz-14kHz (with a 7dB soft boost at 8kHz)

  • Sensitivity

    Nominal, +/-3dB: 20mV/Pa at 1kHz
    -34dB re. 1V/Pa

  • Equivalent noise level

    A-weighted:
    Typ. 23dB(A) re. 20MuPa
    Max. 26dB

    ITU-R BS.468-4:
    Typ. 35dB
    Max. 38dB

  • S/N ratio

    re. 1kHz at 1Pa (94dB SPL): 71dB(A)

  • Total harmonic distortion (THD)

    < 1% up to 123dB SPL peak
    < 1% up to 120dB SPL RMS sine

  • Dynamic range

    Typ. 100dB

  • Max. SPL

    Peak before clipping: 134dB

  • Output impedance

    From MicroDot: 30-40Ohms
    From DAD6001: 100Ohms

  • Cable drive capability

    Up to 984' / 299.93m

  • Power supply

    Min. 5V-max. 50V through DPA adapter

  • Connector

    MicroDot/XLR 3-pin

  • Cable length

    10' / 3.05m

  • Cable diameter

    1.6mm / 0.06"

  • Finish

    Black rubber disc mounted in stainless steel base

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin/pin 2 on XLR connector

  • Operating temperature range

    -10 to 45 deg. C / 14 to 113 deg. F

  • Dimensions (H x Dia.)

    Microphone: 0.5 x 4" / 12.70 x 101.60mm

  • Weight

    Microphone exclude cable: 240g / 8.47oz

About DPA Microphones BLM4060

Bring professional-grade audio recording to your boardrooms, conference facilities, and courtrooms with the BLM4060 Boundary Layer Microphone. This high-quality microphone, crafted by the reputable DPA Microphones, is specifically designed to optimize speech intelligibility, making it an ideal choice for teleconferencing and other vocal pickup applications.

The BLM4060 is not just a microphone, but a sophisticated transducer that operates at its best when placed on a tabletop or any other hard, flat surface that reflects sound. Its innovative design includes a prepolarized omnidirectional miniature condenser microphone with a 5.4 mm vertical diaphragm, specially engineered for peak performance.

The heart of this durable microphone lies in its center rubber disc that securely holds the microphone element, all encased in a sleek stainless steel base. With a generous 3-meter (10-foot) cable, the BLM4060 offers flexibility in placement, allowing you to capture sound from virtually any position on the surface, even near the edge.

The BLM4060 Boundary Layer Microphone takes advantage of the unique sound field characteristics of the surface it's mounted on, providing a 6 dB gain of direct sound and only a 3 dB gain of diffuse sound. This results in captured audio that boasts greater clarity, particularly at high frequencies, and enhanced speech intelligibility compared to sound captured above the surface.

To ensure compatibility with any microphone input, the BLM4060 comes with a wide range of connection adapters and power supplies. Included in the package is a DAD6001 adapter, further enhancing the microphone's versatility. Choose the BLM4060 for reliable, high-quality audio recording in any professional setting.

DPA Microphones BLM4060 Features

  • Professional-grade omnidirectional microphone for clear audio capture
  • Optimized for speech intelligibility in boardrooms and conference settings
  • Sleek stainless steel base with a durable center rubber disc design
  • Flexible 3-meter cable for versatile placement on any flat surface
  • Enhanced sound clarity with 6 dB gain of direct sound technology
  • Includes DAD6001 adapter for compatibility with various microphone inputs

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this DPA boundary microphone, ideal for clear sound.
  • Achieve natural, uncolored recordings using this omnidirectional microphone's flat frequency response.
  • Enjoy a low-noise floor (23dB(A)) for clean recordings, perfect for critical sound applications.
  • The durable stainless steel base ensures stable, reliable placement for consistent audio capture.
  • Use this boundary microphone on tables or walls for discreet, high-quality sound pickup.
  • With a MicroDot connector, this microphone offers versatile connectivity in various setups.

What's in the box:

  • DPA Microphones BLM4060 Boundary Layer Microphone
  • DAO6015 10' Cable
  • DPA Microphones 2 Year Limited Warranty
