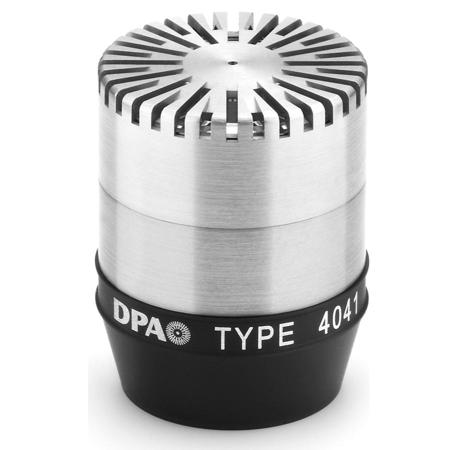

DPA Microphones MMC4041 Large Diaphragm Capsule for Modular Microphone Preamplifiers

What sets the MMC4041 Large Diaphragm Capsule for Modular Microphone Preamplifiers apart is its superior design and exceptional performance. This omnidirectional microphone cartridge is an integral component of the modular microphone system, compatible with both the MMP4000-S (Solid State) and MMP4000-SP (Solid State Phantom Power) Modular Microphone Preamplifiers.

Constructed from robust stainless steel, both the diaphragm and housing of the MMC4041 are uniquely resistant to changes in ambient temperature. This ensures consistent, high-quality audio capture in a variety of environments. The back plate, precision-engineered for maximum electrical stability, is nestled in a quartz insulator and polarized with 190V via the HMA5000 Microphone Amplifier. This intricate design allows the MMC4041 to achieve an unparalleled sensitivity of up to 90mV/Pa.

The MMC4041 Large Diaphragm Capsule boasts a frequency response ranging from 10Hz to 20kHz, featuring a 4-6 dB soft boost around 8kHz. This closely mirrors the response of the highly acclaimed Type 4040 Hybrid Microphone, making the MMC4041 a worthy addition to any professional audio setup.

In addition, the MMC4041 stands out for its impressively low self-noise of just 7dB(A) when used with the MMP4000-S, ensuring crystal-clear audio capture. It also boasts an enhanced SPL handling capability, able to withstand up to 144dB SPL before any clipping occurs. This makes the MMC4041 Large Diaphragm Capsule for Modular Microphone Preamplifiers a reliable choice for capturing high-quality audio in demanding situations.
