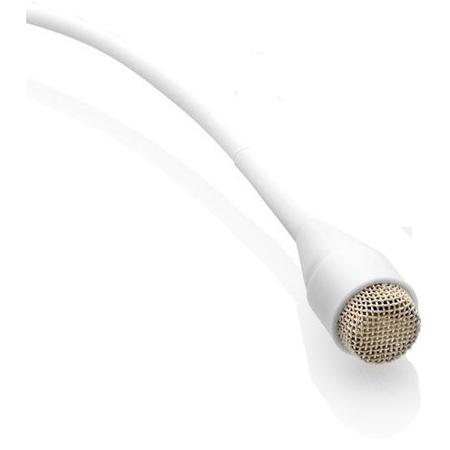

DPA Microphones d:screet 4060 Hi-Sens Omnidirectional Miniature Lavalier Microphone with Hardwired 3-Pin Lemo Connector, White

SKU: DPASC4060W03 MFR: 4060-OL-C-W03
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality with the d:screet 4060 miniature microphone.
  • Achieve discreet, professional audio with this omnidirectional lavalier microphone.
  • Enjoy easy setup with Sennheiser wireless systems for film and broadcast use.
  • This miniature lavalier microphone offers high sensitivity for detailed recordings.
  • Minimize noise and maximize clarity with this high-performance DPA microphone.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet SC4060-W03 Hi-Sens Omni Miniature Lavalier Mic, White Specifications

  • Compatibility

    Sennheiser Wireless Systems

  • Directional characteristics

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser element with vertical diaphragm

  • Frequency range

    Soft boost grid: 20Hz-20kHz +/-2dB, 3dB soft boost at 8-20kHz
    High boost grid: 20Hz-20kHz, 10dB boost at 12kHz

  • Sensitivity

    Nominal +/-3dB at 1kHz: 20mV/Pa
    -34dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 23dB (A) re. 20MuPa
    Maximum: 26dB (A)

    ITU-R BS.468-4:
    Typical: 35dB
    Maximum: 38dB

  • S/N ratio

    re. 1kHz at 1Pa (94dB SPL): 71dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % THD up to 123dB SPL peak
    < 1 % THD up to 120dB SPL RMS sine

  • Dynamic range

    Typical: 100dB

  • Max. SPL

    Peak before clipping: 134dB

  • Output impedance

    30-40Ohms

  • Cable drive capability

    Up to 984' / 299.93m

  • Power supply

    For wireless systems: Min. 5V-max. 50V through DPA adapter
    With DAD6001-BC/DAD6024/DAD4099: 48V phantom power +/-4V for full performance

  • Connector

    Hardwired 3-pin Lemo

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Cable length

    5.9' / 1.80m

  • Dimensions (Dia. x L)

    Microphone: 0.21 x 0.5" / 5.33 x 12.70mm

  • Weight

    1lbs / 0.45kg

Models
DPA Microphones d:screet SC4060-W03 Hi-Sens Omni Miniature Lavalier Mic, White
$529.95

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

DPA Microphones d:screet 4060 Mini Omni Mic, 3-Pin LEMO, Normal SPL, Brown
$529.95

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet Heavy Duty SCO61B03-H Miniature Omni Microphone, Black
$559.95

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorLemo 3 pinLemo 3 pinLemo 3 pin

About DPA Microphones d:screet SC4060-W03 Hi-Sens Omni Miniature Lavalier Mic, White

Find the perfect balance of compact design and superior audio performance with the d:screet 4060 Hi-Sens Omnidirectional Miniature Lavalier Microphone. This versatile audio device, available in black, brown, beige, and white, is a reliable workhorse that effortlessly adapts to your specific needs.

Engineered with exceptional sound quality, this miniature microphone is renowned for its low noise and high sensitivity, delivering the most transparent and natural sound available in the miniature microphone market. It's capable of handling up to 134 dB peak before clipping, ensuring optimal performance across a wide range of applications.

The d:screet 4060 is not just about superior sound. Its small size and unobtrusive design make it an ideal choice for theater, television, and close-miked instrument applications. The omnidirectional pattern of this microphone ensures accurate sound pickup, eliminating the need for direct aiming at the sound source.

This miniature lavalier microphone is designed to endure the toughest conditions. It features DPA Microphones' unique Double Vent Protection System for enhanced resistance to humidity and sweat. The reinforced cable relief is built to withstand everyday twists, bends, and pulls, while the gold-treated diaphragm and microphone housing add to its durability.

The d:screet 4060 Hi-Sens Omnidirectional Miniature Lavalier Microphone is also adaptable to all pro wireless systems, offering a broad range of applications. It comes with a large selection of accessories, making it the go-to choice for any setting that requires high-quality sound in a compact package. Whether you're capturing voice or instrument sounds in film, theater, television, or other close-miking settings, this microphone won't disappoint.

DPA Microphones d:screet SC4060-W03 Hi-Sens Omni Miniature Lavalier Mic, White Features

  • High-sensitivity omnidirectional pickup for natural and transparent sound
  • Compatible with all professional wireless systems, enhancing versatility
  • Durable construction with Double Vent Protection System against moisture
  • Reinforced cable relief and gold-treated diaphragm for lasting performance
  • Capable of handling sound levels up to 134 dB without distortion
  • Available in four colors to blend seamlessly with various environments

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality with the d:screet 4060 miniature microphone.
  • Achieve discreet, professional audio with this omnidirectional lavalier microphone.
  • Enjoy easy setup with Sennheiser wireless systems for film and broadcast use.
  • This miniature lavalier microphone offers high sensitivity for detailed recordings.
  • Minimize noise and maximize clarity with this high-performance DPA microphone.

What's in the box:

  • DPA Microphones d:screet 4060 Hi-Sens Omnidirectional Miniature Lavalier Microphone with Hardwired 3-Pin Lemo Connector
  • High-Boost Grid
  • Soft-Boost Grid
  • DPA Microphones 2 Year Limited Warranty
