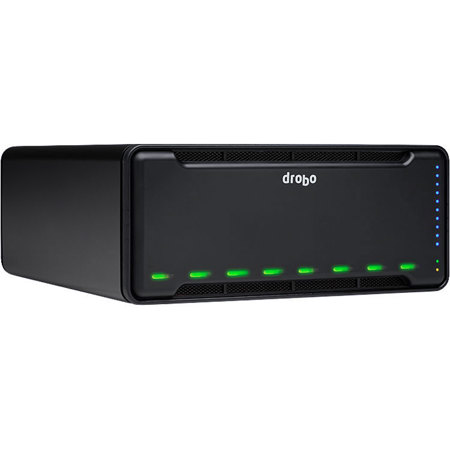

Drobo 8D 8-Bay Storage Array, 2x Thunderbolt 3, BeyondRAID Technology

SKU: DRDR7A21

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Drobo 8D Specifications

  • Connectivity

    2x Thunderbolt 3 ports; second port for daisy chaining Thunderbolt devices, including one 5K or two 4K displays (macOS only)

  • Drives and Expansion

    Up to eight (8) 3.5"SATA hard disk drives or solid state drives (sold separately)
    One (1) 2.5" solid state drive in the Drobo Accelerator Bay for increased performance (sold separately)
    Drives of any manufacturer, capacity, spindle speed, and/or cache can be used. No carriers or tools required.
    Expandable by adding drives or hot-swapping drives with larger ones. Use the Capacity Calculator to estimate available storage in various configurations.

  • BeyondRAID Functions

    Thin Provisioning
    Instant Expansion
    Mixed Drive Size Utilization
    Automatic Protection Levels
    Single - or Dual-Disk Redundancy
    Virtual Hot Spare
    Data-Aware Tiering
    Drive Re-ordering

  • Management

    Drive bay indicator lights, capacity gauge, status lights
    Drobo Dashboard version 3.3.0 or later

  • Operating System Support

    Apple macOS 10.12 and higher

  • File System Options

    macOS: HFS+

  • Hardware Functions

    Carrier-less drive bays
    Power fail protection with internal battery
    Metal chassis and cover
    Rear slot for 2.5" SATA SSD
    Hybrid Storage
    Automated Data-Aware Tiering
    Kensington Lock Port for security (lock not included)

  • Additional Software

    Hot Data Caching
    Maximum System Capacity: 128TB
    Drive Spin Down
    Dim Lights
    macOS Time Machine Support
    Intelligent Volume Management

  • Form Factor

    Desktop

  • Power and Cooling

    Internal Power Supply: AC Input - 100-240VAC - 3.5A, 50-60Hz, DC Output - 12V, 20.8A, 250W max
    Dual, fixed cooling fans
    15W of power to slow charge a Thunderbolt 3 laptop

  • Environmental

    Acoustics

  • Normal Operation

    30.4 dB

  • Operating Temperature

    10 to 35 deg. C (50 to 95 deg. F)

  • Non-Operating Temperature (storage)

    -10 to 60 deg. C (14 to 140 deg. F)

  • Certifications

    Environmental: RoHS,
    Regulatory Compliance for US, Canada, EU, Australia/New Zealand, Japan and Korea: FCC Part 15 Subpart B; ICES-003 Issue 6; EN 55024, EN55032,
    EN61000-3-2; EN61000-3-3; AS/NZS CISPR 32; VCCI-CISPR 32-2016; KN32; KN 35
    Safety: UL, CB, CAN/CSA-22.2 No. 60950-1

  • Operating Humidity

    5% - 80%

  • File Systems Supported

    macOS: HFS+

  • Dimensions (WxHxD)

    12.17 x 5.46 x 14.1" (30.91 x 13.87 x 35.81cm)

  • Weight

    7.4kg (16.31 lbs) without hard drives

  • UPC Code

    816604020500

About Drobo 8D

Bigger. Better. Bolder

The Fastest Drobo Yet With Thunderbolt 3 Speed
Meet the bigger, better and bolder Drobo 8D. Capable of supporting 16 volumes of up to 128TB, with a total storage pool of 256TB, 8D is designed to meet the need for data-intensive workflows. With lightning speed Thunderbolt 3, the Drobo 8D is the fastest direct attached Drobo yet. The 8D comes equipped with a Drobo Accelerator Bay and is the only Drobo with the new Intelligent Volume Management technology.

Leave Your Limitations Behind Go BeyondRAID
Built on award-winning BeyondRAID technology, Drobo 8D simply protects your data against a single or dual disk drive failure. Drives can be added, hot-swapped and updated in real time for storage expansion with zero downtime. If you're running low on space, the lights on the front provide guidance. Just add a drive in an empty bay or remove a smaller drive and replace it with a larger one. In addition, Smart Volumes are thinly provisioned volumes, that automatically utilize capacity as needed from a common pool of storage.

SSD Acceleration Boosts Performance
Most storage arrays use either all hard drives or all SSDs. The Drobo 8D delivers the best of both worlds by intelligently combining hard drives and SSDs to deliver both capacity and performance. The Drobo 8D gives you the option to enable Hot Data Caching through the Drobo Accelerator Bay on the rear slot. Using an SSD allows access to most frequently read data to deliver blazing fast speeds. This boosts performance of popular applications such as Apple's Final Cut and Adobe Lightroom.

SSDs can also be utilized in the front bays of the Drobo 8D for Data-Aware Tiering, allowing for transactional data to migrate to the SSDs. This ensures that both writes and reads are accelerated.

Intelligent Volume Management
New to the Drobo product line is the Intelligent Volume Management technology available on the 8D. This technology combines the flexibility of manual volume configuration with the convenience of Drobo's legendary automation, allowing for separation of file systems as customer needs dictate. The 8D allows the creation of up to 16 volumes with a maximum 128TB volume size and a 256TB storage pool.

Power of Thunderbolt 3
Drobo 8D storage array offers a lightning fast Thunderbolt 3 connection (macOS only) that is both fast and backwards compatible. This optimizes your performance when transferring large volumes of data. With the dual ports, the Drobo 8D connects up to six Thunderbolt devices or five devices and a monitor at the end of the chain. Supports one 5K or two 4K displays (with a Thunderbolt dock).

Enhanced Backup for Time Machine

Time Machine and Drobo: A Perfect Pairing
Apple's Time Machine was designed to make backing up your files simple and painless. Pairing Time Machine with Drobo improves your data protection by ensuring your data is safe in the event of hard drive failure.

Control How Much Storage Time Machine Uses
Apple's guidelines are to set the storage space for Time Machine at twice the size of the Mac's hard drive that is to be protected. Time Machine users know that it will gradually use all available disk space without an easy way to stop this from happening. With Drobo you can easily control the maximum storage space available for Time Machine backups through Drobo Dashboard. When you install a Drobo, Drobo Dashboard prompts to see if you want to create a dedicated storage volume for Time Machine's use, allowing you to set the size of this volume.

Power Protecting Your Critical Data
In addition to drive failure protection, Drobo also protects against potential data loss during a power outage. In every Drobo we include battery backup technology to protect data in memory or cache. When power spontaneously goes away, Drobo moves any in-flight data to onboard flash in your Drobo, so it will be protected and moved to your disk drives once power is restored. This ensures your important information is safe and sound. Even better, your battery recharges itself and is designed to last for the life of your Drobo.

What's in the box:

  • Drobo 8D 8-Bay Storage Array
  • 3.3' Thunderbolt 3 Cable
  • Power Supply
  • 6' Power Cord
  • Drobo 2 Year Warranty (90 Day of Business Hour Tech Support)
