Review Summary
20 Degree
CCT 1500 to 10,000 Kelvin+Full Color
Flicker-free current control based dimming
6
No
Wired DMX, Wireless Artnet 2.4Ghz
90 to 260 VAC, 50 / 60 Hz
No
AC Adapter
600W
32.8' (10m)
0 to 115 Degree F (-20 to 45 Degree C)
Passive heat sink and variable speed silent fan
Frame: 34 x 20.7 x 6.6" (86.5 x 52.6 x 16.8cm)
Light Module: 12 x 4.0 x 4.0" (300 x 11.6 x 11.6cm)
PSU: 12.6 x 5.3 x 8" (32 x13.6 x 20.3cm)
Handle: 6.2 x 1.9 x 2.3" (16 x 5 x 6cm)
Frame: 52 lb (23.6kg)
Light Module: 6.6 lb (3kg)
PSU: 11 lb (5.1kg)
Handle: 0.72 lb (330g)
850109006881

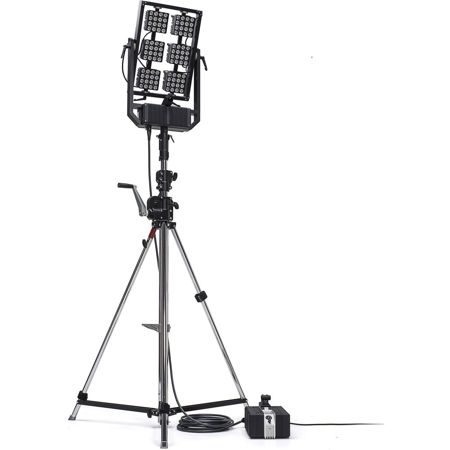

DS6 is the big brother in the house of modular LED lighting systems for the film and television industries. Due to his size, he is a beast of a light source. But then again, he is simple to understand and uncomplicated to use. He is able to tilt forward a bit, by exactly 40 degrees to accommodate a softbox looking downwards. The DS6 is a robust workhorse for productions of any size and shares the modular family philosophy. The DS6 PSU can be stacked with other DS6 PSUs.
The DS6 Frame Wireless System - Art-Net comes ready for DMX wired communication.
It is also available in its' WiFi- ready version as DS6 Frame System - Wireless
- DS6 PSU -
900W Power supply unit for the DS6 Frame.
- DS Light Module RGBW -
The basic block of DS systems. 100W fully dimmable RGBW light module that comes ready for connecting with other modules to build fixtures of any desired shape or form.
- DS Wireless Handle (Art-Net) -
Module for wireless communication with the DS app, Art-Net software and a variety of other light control apps.
- DS6 Frame -
The DS6 frame has the dimmers and cables for all 6 lamps built inside, so you don t need to worry about excessive cabling on set. Frame only. Light modules not included.
- DS6 Diffuser Lens 34/76 with Bag -
Two-sided holographic lens to control beam spread. Covers 3 lamps in the DS6 frame.
- DS6 Cable 10m -
Integrated cable feeding power to all 6 modules of the DS6 Frame.
- AC Cable ICELock C13 2m/6'(US) -
Lockable power cable.
- Clip bag Set -
Clip bag containing 18 clips.
