Datavideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay
See all Datavideo items

Datavideo HDR-70 320GB HDD Recorder for SD/HD-SDI with Removable Drive Bay

SKU: DVHDR70

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Datavideo HDR70 Specifications

  • Drive Enclosure: Construction

    Painted aluminum

  • Drive Enclosure: Interface (I/O)

    USB 2.0
    eSATA

  • Drive Enclosure: Internal Interface

    SATA

  • Drive Enclosure: Compatibility

    HDD: Western digital, Fujitsu, Hitachi
    Compatible with SSD

  • Drive Enclosure: Power

    5VDC

  • Recorder: Signal System

    HD
    NTSC
    PAL

  • Recorder: Supported Video Formats

    1080p 30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    NTSC
    PAL

  • Recorder: Formats

    HD: 10 to 25Mb/s, 4:2:0
    35 to 100Mb/s, 4:2:2
    SD: 8Mb/s, 4:2:0
    15 to 50Mb/s, 4:2:2

  • Recorder: Inputs

    Video: 1 x SD/HD-SDI
    Audio: 2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels)
    GPI 1 x mini-XLR
    Timecode: 1 x BNC
    Black Burst/Sync: 1 x BNC

  • Recorder: Outputs

    Video:
    1 x SD/HD-SDI 1 x SD/HD-SDI (loop through)
    1 x HDMI
    Audio: 2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels)
    Timecode: 1 x BNC
    Black Burst/Sync: 1 x BNC

  • Recorder: Control Interface

    RS 422, RS 232
    9-pin DIN

  • Recorder: Time

    320GB Hard Drive:
    5 Mb/s: 142 hours
    10 Mb/s: 70 hours
    15 Mb/s: 47 hours
    20 Mb/s: 35 hours
    40 Mb/s: 19 hours
    60 Mb/s: 12 hours

  • Recorder: File Format

    MXF/OP1A

  • Recorder: File System Format

    NTFS

  • Recording Limit

    99 bins
    99 clips per bin

  • Recorder: Construction

    Painted Aluminum

  • Recorder: Rack Height

    2RU

  • Recorder: Power Requirements

    12VDC

  • Recorder: Power Consumption

    16W

  • Dimension

    Recorder (L x W x H): 17.3 x 11.4 x 1.9" (43.9 x 28.9 x 4.8cm)
    Drive Enclosure: 6 x 5 x 1" (15.2 x 12.7 x 2.5cm)

  • Weight

    Recorder: 7lbs (3.17kg)
    Drive Enclosure: 1lbs (0.45kg)

  • UPC Code

    672255004111

About Datavideo HDR70

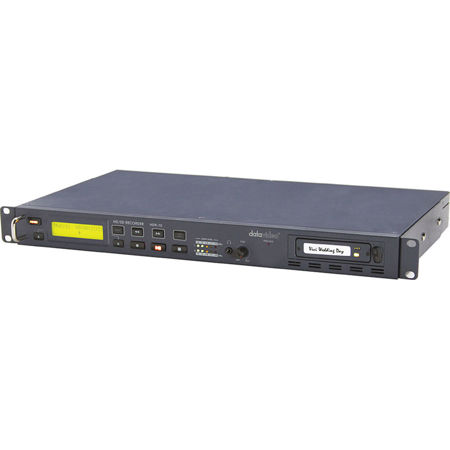

The Datavideo HDR-70 is a hard drive based video recorder, with removable hard drive enclosure, designed for studio desktop applications. The HDR-70 records from both High and Standard Definition video equipment via HD/SD-SDI. The HDR-70 comes with a 320GB HDD and a removable hard drive enclosure. One additional enclosure is included, if you would like to purchase another HDD. And the HDR-70 is compatible with SSD drives. Once you have completed your recording, simply eject the hard drive enclosure and use USB 2.0 to connect to a PC or MAC based NLE system. The USB port provides power to the unit. It's perfect for use with laptops in the field. You can work directly from the removable drive, or copy video files to your NLE's video drives.

Datavideo HDR70 Features

  • Sony Command Protocol: HDR-70 uses Sony control commands for Record, Stop, Play, Status Sense and Timecode Sense
  • Accidental Power-Off Protection: In the case of an accidental power-off, like a blackout, the recorded file will still be saved, minus 2 seconds at the end of the file
  • On the Fly: Media files are made on the fly with the HDR-70
  • Locking Power Connector: Locking connectors keep the power plug securely attached
  • Ref-In: HDR-70 has Ref-in/loop-through, Black Burst and Tri-level Signal
  • User-programmable GPI: HDR-70's GPI function can be programmed by the user inside the recorder's menu
  • NTFS: HDR-70 uses the NTFS file system
  • Time Code: HDR-70 has time code input and output
  • Power-On Features: HDR-70 has Power-On Record and Power-On Play
  • 292M SMTP: HDR-70 conforms to the 292M SMTP Standard
  • 1080p Recording: HDR-70 can record in 1080p, as well as 1080i, 720p, 576i and 480i
  • SSD Compatible: HDR-70 ensures compatibility with SSD hard drives
  • Gen-Lock: HDR-70 features gen-lock input and pass-through
  • Time-lapse Recording: HDR-70 is able to do time-lapse recording

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Sony Command Protocol
  • Accidental Power-Off Protection
  • Media files made on-the-fly w HDR-61
  • Locking Power Connector
  • Ref-in/loop-through, Black Burst, Tri-level Signal
  • User-programmable GPI

What's in the box:

  • Datavideo HDR-70 HDD Recorder
  • 320GB Hard Drive
  • Additional Empty HD Enclosure
  • Power Adapter & Cable (DC 12V 1.5A 110/220)
  • Instruction Manual
  • Datavideo 1 Year Warranty (2 Year When Registering)
