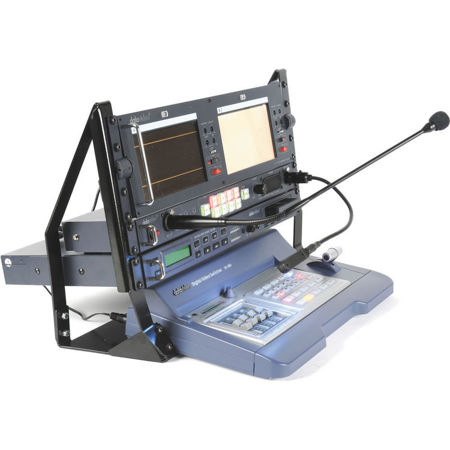

Datavideo Portable Live Production Switcher Studio Kit, Includes SE-500 Digital Video Switcher, TLM-702 7" LCD Monitor, DN-700 Rack-Mount Hard Drive Recorder, RKM-572 Holder Mount, NTSC & PAL

SE-500 Digital Video Switcher
The Datavideo SE-500 is a compact and light weight, four channel analogue input, digital processing video switcher with both S-Video (Y/C) and Composite Video inputs. In addition to S-Video and Composite Video, the SE-500 also provides Component (Y:U:V) output, perfect for connection to DVD recorders, Hard drive recorders, LCD TV, Projectors and many others.

• 4 Channel Analogue Vision Mixer
• S-Video (Y/C) or Composite Video Inputs
• Component YUV / S-Video (Y/C) / 2 x Composite Video Outputs
• 1 x Stereo (Unbalanced)
• 2 x Microphone Inputs
• Stereo (Unbalanced) Output
• Quad View display output
• Tally Display
• Preview output
• Smooth T-bar Control
• Dual channel TBC 4:2:2 Frame Synchronizer
• Tally Light Output

The SE-500 is ideal for applications within Education, Places of Worship, Seminars, Small Studios, Clubs, Pubs and many more. One of the really uniquely features of the SE-500 is the ability to display all four input sources via a single quad output, the preview display also including a superimposed tally indicator on each input. This feature means you only need two video monitors - one for all four inputs, one for the program output.

Other features include effects (dissolve, fade, several types of wipes), Split screen, Picture in Picture (PiP) and Color Processor. The input sources are internally synched via a built in four channel 4:2:2 Time Base Corrector (TBC) & frame synchronizer, so no external synchronizing (Genlock) of the cameras or sources is required for a perfect, glitch free and smooth transition.

The SE-500 can be manually operated via the illuminated push buttons (perfect when you work in low light situations) or controlled via standard RS-232 & MIDI interface. Using any of Datavideo's signal converts to connect to external equipment like SDI and HDMI, more information under the converter section. The Datavideo SE-500 is also available as a turnkey Mobile Video Studio such as HS-500 or MS-500 and feature in their Mobile Chromakey Studio MS-DVK1.

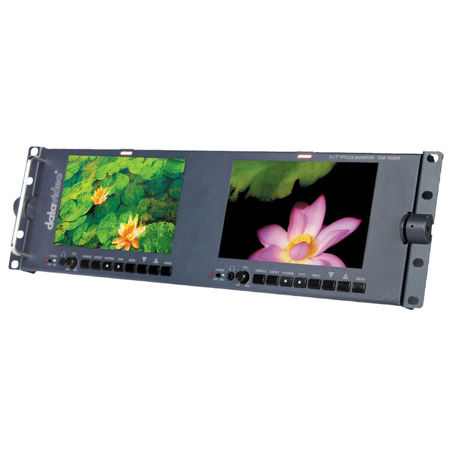

TLM-702 7" LCD Monitor
2 x7 Inch 16:9 Wide Screen broadcast monitors with adjustment for Brightness, Contrast, Color & Tint (NTSC only). Two selectable inputs video inputs per screen. NTSC/PAL Auto switching. As a leading manufacturer Datavideo work closely with LCD manufacturers to ensure only the highest quality displays are used and offer a guarantee against spotlight defects.

• 2 x 7" Panel, 19" Rack Mountable Video Monitors
• Resolution: 1440 x 234 Pixels
• View Angle (V)+40/-60deg., (H)+60/-60deg.
• 2 x Composite inputs for each screen
• Brightness, Contrast, Color, Tint Adjustable
• (Tint NTSC only) NTSC/PAL Auto Switching
• Display mode adjustable (Flip/16:9/4:3)

The high quality professional TLM monitor series automatically switches between PAL / NTSC and for flexibility can be powered via 12 V DC or AC power. The Datavideo TLM monitor series is designed for video professionals that insist on superior performance. After all, every professional knows that you are only as good as the tools you use. Whether it's in combination with switchers, 19" rack monitoring, in field operation, video editing or the most advanced multimedia video you're creating, the Datavideo TLM monitor range offers the right tools for your job.

DN-700 DV/HDV Recorder/Player
Tapeless or file based, video acquisition is widely accepted as a replacement for existing tape based systems. Recording times are far longer than traditional tape. With Datavideo's DN-700 video is recorded as files, saving hours of capturing.

• Removable 2.5" hard drive (320GB HD included)
• NTFS/FAT32 Switchable
• DN-700 can function in NTFS or FAT32 file systems.
• Multiple File Format Support
• DN-700 supports many popular file formats, providing additional flexibility.
• Input connections: Composite video and stereo audio (PAL or NTSC)
• IEEE1394 digital video signal, supports DV25,HDV,DVC Pro 25
• Time code Input
• Balanced / Unbalanced Audio
• Output connections: Composite video and Balanced / Unbalanced Audio
• Digital format include both DV & HDV
• File format supported: DV: .avi, .mov, .mxf (OP1A)
• HDV: .m2t native

DN-700 comes with a removable hard drive carrier (additional carriers are available). Once you have completed your recording, simply eject the hard drive carrier and use USB 2.0 to connect to a PCor MAC based NLE system, (no power supplier required, as USB 2.0provides power so its perfect for laptop use in the field). You can work directly from the removable drive or copy video files across to the NLE'svideo drives. A wide range of video & audio interfaces on the DN-700 allow users to connect to composite Video source or DV equipment.

RKM-572 Holder
The RKM-572 Holder is specially designed for TLM-702 7" LCD Monitor and DN-700 DV/HDV Recorder/Player.
