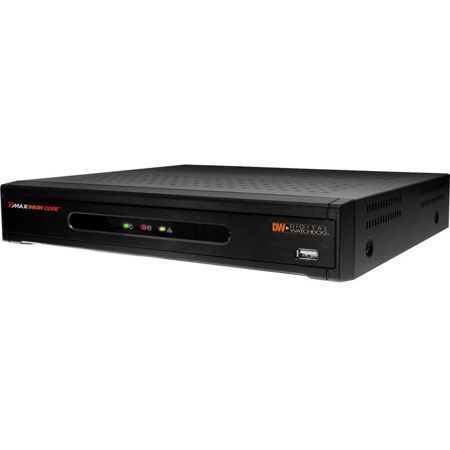

Digital Watchdog VMAX A1 8 Channel 1080p AHD, TVI, and 960H DVR with 1TB

SKU: DWVAONE81T

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Digital Watchdog DW-VAONE81T Specifications

  • Video Input

    8 Channels

  • Video Signals Supported

    Analog Signal up to 960H, AHD, TVI

  • Video Live: Frame Rate

    1 - 30fps

  • Video Live: Resolution

    1080p, 960 x 480, 960 x 240, 480 x 240

  • Video Output

    HD Output, VGA

  • Audio Input

    1 Input

  • Audio Output

    1 Output

  • Audio Codec

    PCM

  • Alarm Sensor Input

    4 Input

  • Alarm Out

    1 Output

  • Operating System

    Embedded Linux

  • Serial

    1 x RS485 for PTZ Camera & Controller, 2 x USB 2.0

  • User Interface Menu Display

    Graphical User Interface (GUI)

  • User Interface Control Methods

    IR Remote Control, USB Mouse

  • Screen Display Mode

    1, 4, 9 Sequence

  • Screen Resolution

    1920 x 1080P, 1280 x 1024, 1024 x 768

  • Recording Compression

    H.264

  • Recording Mode

    Schedule, Event, Time-Lapse, Panic, Continuous, Pre & Post Event, Motion, Recording Configuration per Channel

  • Pre Recording

    1 - 5 Seconds

  • Post Recording

    5 - 15 Seconds

  • Recording Rate

    240fps @ CIF, 480, D1, 960H, 720p
    120fps @ 1080p AHD

  • Recording Resolutions

    All analog resolutions up 960H, AHD 720p and 1080p

  • Playback Rate

    Up to 30fps per Channel in Single-Channel View Mode
    Up to 15fps per Channel in Multi-Channel View Mode

  • Playback Resolution

    All analog resolutions up 960H, AHD 720p and 1080p

  • Playback Fast Forward Functions

    x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32

  • Playback Functions

    First Data, Last Data, Date/Time, Record Table, Calendar, Bookmark, System Log

  • Storage: HDD Interface

    1 HDD

  • Storage: Max. Internal HDDs

    Up to 6TB (1HDD x 6TB)

  • External Storage

    USB Flash Drive, USB HDD, DVD

  • Storage: HDD Interface Type

    SATA-II, SATA-III

  • Storage: HDD Health Check

    Temperature, S.M.A.R.T. with E-mail Notifications

  • Camera Color Control

    Brightness, Contrast, Saturation, Hue

  • Digital Zoom

    Yes (Live)

  • Software Upgrade

    USB Flash Drive, Network Upgrade, FTP Remote Upgrade

  • Mobile Client

    Mobile App for Apple & Android Smart Phones & Tablets

  • Covert Channel

    Yes (Live & Playback)

  • Network Connection

    Ethernet (1 x Gigabit 10/100/1000 Gpbs)

  • Maximum User Connections

    10 Simultaneous Connections

  • Streaming Transmission Speed Live

    240fps @ 960H, D1 and 720p
    120fps @ 1080p

  • Streaming Protocols

    Static, DDNS, DHCP, UPnP, RTSP

  • Access Web Viewer

    Live, Playback, & Configuration up to 10 Multiple Connections

  • Access Client Monitoring Software

    MAC (Apple S/W), Pivot (CMS S/W)

  • Operating Temperature / Humidity

    5 Degree C - 40 Degree C (41 Degree F - 104 Degree F), Less than 80% (Non-Condensing)

  • Power Requirement

    12V DC

  • Power Consumption

    45W

  • Dimensions

    11.02" x 9.65" x 1.89" / 280mm x 245mm x 48mm

  • Weight

    5.56lbs (2.52 Kg)

  • UPC Code

    813379016110

About Digital Watchdog DW-VAONE81T

The VMAX A1 is a digital video recorder that offers real-time HD monitoring and recording up to 480fps at 960H and 720p and 240fps at 1080p (1920X1080) resolution. The VMAX A1 supports analog signals up to 960H, TVI and Analog High Definition (AHD) signals, leveraging the robustness of analog signal infrastructure for a seamless upgrade to the detail and clarity of 1080p high definition resolution. The A1 is available in 4, 8 and 16 channel configurations, is available with up to 12 Terabytes of internal storage and is backed by Digital Watchdog's unbeatable 5 year limited warranty.

AHD, TVI and 960H Signal Support
The VMAX A1 is the most simple way to upgrade an existing analog solution. With support for all 960H and below resolution Analog Cameras, AHD and TVI HD Formats (1080p via Coax) Resolutions, the DVR can be integrated into an existing application without the need to update the cameras at the same time. This allows for optimal financial flexibility and ROI, with individual components of an entire solutions updated separately.

Event Notifications via Email, Text and Pivot CMS
The DVRs support event notifications for a variety of recording and system events. The notifications can be set to multiple e-mail accounts with attached screen shots, as a short text message, or event log to Pivot Remote Monitoring Software.

Digital Watchdog DW-VAONE81T Features

  • All-in-One HD DVR records 1080p AHD, TVI and all analog to 960H
  • Pivot Central Management Software, Up to 128 Channel
  • Pathfinder Auto Port Forwarding
  • Mobile Application for iPhone, iPad, iPod, Android Smart Phones, Tablets, Apple TV
  • MAC Compatible Remote ACS Software
  • Intuitive Graphical User Interface (GUI)
  • OSD and PTZ Control via Coax (UTC)
  • HDD Calculation and Auto Recording Configuration
  • Event Notifications via Email, Text and Pivot CMS
  • 120fps Recording in 1080p AHD or TVI Resolution
  • 240fps Recording in all Analog Resolutions up to 960H and 720p
  • 1 Audio Input, 1 Audio Output
  • 4 Sensor Input, 1 Relay Output
  • Simple & Free DDNS Service
  • Easy Web-Based Client with Multi-User Access
  • Help Menu on Major Functions
  • Auto & Manual Firmware Upgrade Available
  • 5 Year Limited Warranty

Key Features

  • All-in-One HD DVR records 1080p AHD, TVI and all analog to 960H
  • Pivot Central Management Software, Up to 128 Channel
  • Pathfinder Auto Port Forwarding
  • MAC Compatible Remote ACS Software
  • Intuitive Graphical User Interface (GUI)
  • OSD and PTZ Control via Coax (UTC)

What's in the box:

  • DVR
  • 1 x CD (QSG + Manual + Software)
  • 1 x Quick Start Guide
  • 1 x IR Remote Control
  • 1 x 12V DC Adaptor and Power Cable
  • 1 x USB Mouse
  • 4 x Screws (Top Cover)
  • Digital Watchdog 5 Year Limited Warranty
