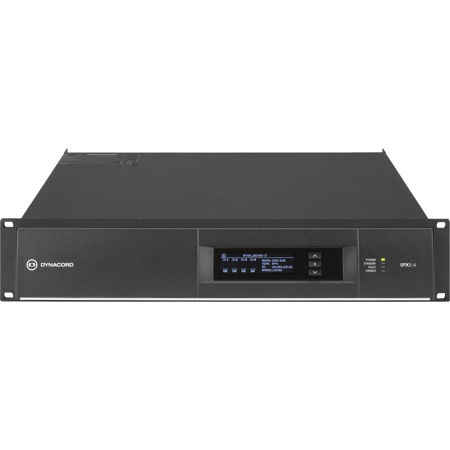

Bosch IPX5:4 4x 1250W DSP Class-D Power Amplifier with FIR Drive, 32A powerCON Connector, Install, 8 OMNEO/Dante Inputs
SKU: DYIPX54
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Failure Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
Bosch IPX5:4 Specifications
Output Power
Output Power
Jump to...Low-Z mode: Load Impedance
2Ohms
2.7Ohms
4Ohms
8OhmsNormal Mode, all channels driven
2Ohms: 1300W
2.7Ohms: 1500W
4Ohms: 1250W
8Ohms: 1250WBridged
4Ohms: 2600W
8Ohms: 2500WParallel
2Ohms: 2500W
2.7Ohms: 3000W
4Ohms: 2500W
8Ohms: 1250WParallel-Bridged
2Ohms: 5200W
2.7Ohms: 1250W
4Ohms: 2500W
8Ohms: 2500WDirect Drive Mode: Nominal Voltage
2Ohms: 70 V
2.7Ohms: 100 V
4Ohms: 140 V
8Ohms: 200 VMaximum Output Power
2Ohms: 1250W
2.7Ohms: 1250W
4Ohms: 2500W
8Ohms: 2500WNumber of Amplifier Channels
4
Maximum Output Voltage, Normal mode
150V peak (per channel)
Maximum Output Current, Normal mode
41A peak (per channel)
Amplifier Voltage Gain
Jump to...Low-Z mode, ref. 1kHz
32.0 dB, adjustable 20.0-44.0 dB
Direct Drive mode
33.2/36.2/39.2/42.2 dB for 70/100/140/200 V
Amplifier Input Sensitivity
Jump to...Low-Z mode, Max. Output Voltage
10.7 dBu (2.66 V), adjustable -1.3-22.7 dBu
Direct Drive mode
6 dBu (1.55 V), fixed
THD 3dB below max, AES17, 1 kHz
< 0.05 %
DIM 100 3.15 kHz, 15 kHz
< 0.15 %
IMD-SMPTE 60 Hz, 7 kHz
< 0.05 %
Crosstalk ref. 1 kHz, 12 dB below Max
< -80 dB (8Ohms)
Frequency Response ref. 1 kHz
20 Hz to 20 kHz (+/-0.5 dB) (analog into speaker out)
Damping Factor 20 Hz to 200 Hz, 8Ohms
> 400
Output Stage Topology
Class D, fixed frequency
Signal to Noise Ratio Amplifier
Jump to...A-weighted, analog input
112 dB
A-weighted, digital input
115 dB
Amplifier Output Noise
Jump to...A-weighted, analog input
< -70 dBu
A-weighted, digital input
< -73 dBu
Analog Audio Input/Thru
Jump to...Type
2x 6-pin Euroblock, male
Maximum Input Level
+21 dBu
Input Impedance, active balanced
20KOhms
Reference level equal to digital input
+21 dBu for 0 dBFS
Speaker Output
1x 8-pin Euroblock, 6mm, female
Digital Signal Processing
Jump to...Sampling rate
48 kHz/96 kHz, OMNEO/Dante synchronized
Signal delay/latency
0.70 ms/0.53 ms (Analog In to Speaker Out, 48 kHz/96kHz)
Dante Network Latency
Typ. 1.00 ms
Signal Processing
Jump to...User EQ
12 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Lo-ShelvQ, Hi-ShelvQ, Hi-Pass, Lo-Pass and Notch; 2 filters of them with additional asymmetric filter type
User Delay
0 to 2000 ms per channel (units: Mus, ms, s, cm, m, inches, feet)
Array EQ
5 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Lo-ShelvQ, Hi-ShelvQ, Hi-Pass, Lo-Pass and All-Pass
Array Delay
0 to 500 ms per channel (units: Mus, ms, s, cm, m, inches, feet)
Speaker EQ
10 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Hi-Pass, Lo-Pass and All-Pass
Speaker X-Over
Hi-Pass and Lo-Pass per channel, 6/12/18/24/30/36/42/48 dB Bessel/Butterworth, 12/24/48 dB Linkwitz-Riley; Alignment Delay, 0 to 20 ms per channel
Speaker FIR
Up to 1025 taps, Linear Phase Filter, Linear Phase Brickwall X-Over
Speaker Limiters
Peak Anticipation Limiter and RMS/TEMP Limiter per channel
Other Functions
Source Selection and Mix, Level, Mute, Polarity, Sine and Noise Generator, Pilot Tone Generator and Detection, Level Meters, Impedance Measurement and Load Monitoring
Memory
Jump to...DSP Presets
1 Factory + 20 User
Speaker-Pool Presets
30 Speaker Settings
Source Supervision and Fallback
Pilot Tone supervision at Analog and OMNEO/Dante inputs, switchover to alternative Source Selection
Network
Jump to...Type
2x Neutrik etherCON/RJ45, redundant PRIMARY/SECONDARY
General
1000base-T/100base-TX, integrated switch
Network Audio Inputs
8 channels, 48/96 kHz, OMNEO/Dante format
Network Audio Outputs (Monitor)
2 channels, 48/96 kHz, OMNEO/Dante format
Mains Input
1x Neutrik powerCON-HC
GPIO Control Port
Jump to...Type
1x 8-pin Euroblock, male
Ports and Operating Modes
3x GPIO, switchable Analog In/Digital In/Digital Out
Analog Input Range
0 V to +13 V, 40KOhms input resistance
Digital Input Limits
ON: < 1.5 V; OFF: > 2.0 V, internal Pull Up (10KOhms)
Digital Outputs
ON: Output switched to GND, max. 200 mA
OFF: Open Collector (40KOhms to GND)Reference Voltage Output
+10 V, max. 200 mA, supervised, short circuit protected
READY/FAULT contact
Galvanic isolated relay, max. 30 VDC/500mA DC
User Interface
Jump to...Display
Black/white OLED 256 x 64 pixel
Front panel indicators
4x status LEDs (POWER, STANDBY, FAULT, OMNEO)
Front panel operating elements
3 buttons (UP, ENTER, DOWN)
Rear panel indicators
1x status LED (STATUS)
Rear panel operating elements
Mains Switch
Power Requirements
100 V to 240 V, 50 Hz to 60 Hz AC
Power Supply Topology
Switching Mode Power Supply with digital controlled Power Factor Correction
Protections
Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Limiters, Turn-on Delay, Mains Circuit Breaker Protection, Mains Over-/Under voltage Protection
Cooling
Front-to-rear, temperature controlled fans, supervised
Ambient Temperature Limits
5 to 40 deg. C (41 to 104 deg. F)
IEC Protection Class
Class I (grounded)
Electromagnetic Environment
E1, E2, E3
General
Jump to...Power Consumption
Rated power consumption: 700W
1/8 Maximum Output Power at 4Ohms: 900W
Idle Mode (no input signal): 75W
Standby Mode: <15WDimensions (WxHxD)
483 x 88.1 x 514.2mm (19.02 x 3.47 x 20.24")
Weight
14.3kg (31.53 lbs)
Other
Jump to...UPC Code
800549835329
About Bosch IPX5:4
Bosch IPX5:4 Features
- 4x 1250W multi-channel installation DSP amplifier with digitally controlled PFC supply
- Fully integrated DSP with high-resolution 96 kHz processing and FIR Drive
- Dante and OCA integration via OMNEO with fallback options
- Parallel, bridged and parallel-bridged drive modes with 70/100V/140V/200V and low impedance operation
- High efficiency Eco Rail technology for lower operating costs
What's in the box:
- Dynacord IPX5:4 4x 1250W DSP Class-D Power Amplifier
- 6mm 8-Pin Euroblock-Type Connector (Output)
- 6-Pin Euroblock-Type Connector (Input)
- 8-Pin Euroblock-Type Connector (GPIO)
- M6x20 Screw for Rack Mounting
- Installation Manual
- 32A Mains Power Connector with Safety & Assembly
- Safety Instruction Booklet Instruction
- Dynacord Warranty
