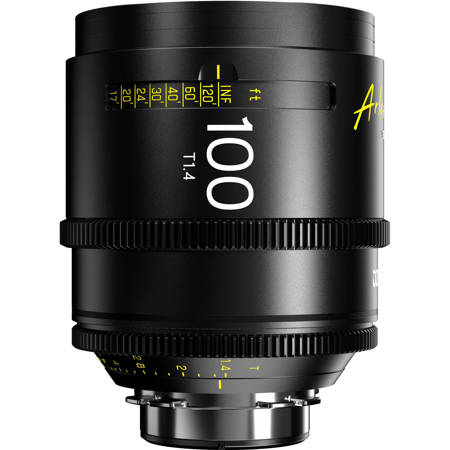

DZOFILM Arles Prime Cine Lens for PL Mount, 100mm

SKU: DZOSAP1IPL MFR: DZO-SAP100IPL
Earn VIP Reward Points

Includes Free Gift ($99.00 Value)

DZOACC1MEF
DZOFILM EF-Mount Tool Kit for Vespid/Catta Ace/Gnosis Lenses

Key Features

  • 16 aperture blades create delightful circular bokeh and smooth focus transitions
  • Compatible with large format sensors, ideal for diverse filmmaking needs
  • Lightweight, compact design integrates seamlessly with industry-standard cine accessories
  • Interchangeable mounts provide wide compatibility with various cinema cameras
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : What is the best filter for this lenses?
Shopper : Why Did You Choose This?Fellipe B : good price, delivery on time.Fellipe B : for the qualityFellipe B : impressed with the qualityMatthew I : image quality

Reviews about this item

Review Summary

DZOFILM Arles Prime Cine Lens for PL Mount, Specifications

  • Color

    Black

  • Material

    Aluminum alloy

  • Available Focal Lengths

    14mm, 18mm, 21mm, 25mm, 35mm, 40mm, 50mm, 75mm, 100mm, 135mm, 180mm

  • Mount

    PL Mount

  • Available Aperture

    14mm: T1.9-T22
    18mm, 21mm, 25mm, 35mm, 40mm, 50mm, 75mm, 100mm: T1.4-T22
    135mm: T1.8-T22
    180mm: T2.4-T22

  • Image Circle

    46.5mm (VV/FF)

  • Construction of Optics

    14mm: 15 Elements in 12 Groups
    18mm: 15 Elements in 13 Groups
    21mm/25mm/35mm: 14 Elements in 12 Groups
    40mm: 13 Elements in 11 Groups
    50mm/75mm: 13 Elements in 9 Groups
    100mm: 13 Elements in 8 Groups
    135mm: 12 Elements in 8 Groups
    180mm: 12 Elements in 9 Groups

  • Flange Distance

    PL: 52mm

  • Angle of View

    14mm: Diagonal: 109 Degree, Horizontal: 72 Degree, Vertical: 116 Degree
    18mm: Diagonal: 97 Degree, Horizontal: 61 Degree, Vertical: 104 Degree
    21mm: Diagonal: 89 Degree, Horizontal: 54 Degree, Vertical: 96 Degree
    25mm: Diagonal: 80 Degree, Horizontal: 47 Degree, Vertical: 87 Degree
    35mm: Diagonal: 61 Degree, Horizontal: 34 Degree, Vertical: 67 Degree
    40mm: Diagonal: 56 Degree, Horiz

  • Angle of View (Contd.)

    50mm: Diagonal: 45 Degree, Horizontal: 25 Degree, Vertical: 50 Degree
    75mm: Diagonal: 30 Degree, Horizontal: 16 Degree, Vertical: 34 Degree
    100mm: Diagonal: 23 Degree, Horizontal: 12 Degree, Vertical: 26 Degree
    135mm: Diagonal: 17 Degree, Horizontal: 9 Degree, Vertical: 19 Degree
    180mm: Diagonal: 13 Degree, Horizontal: 7 Degree, Vertical: 15 Degree

  • Close Focus (from sensor plane)

    14mm: 0.91' (0.28m)
    18mm: 0.95' (0.29m)
    21mm: 1.08' (0.33m)
    25mm/35mm: 1.14' (0.35m)
    40mm: 1.31' (0.4m)
    50mm: 1.64' (0.5m)
    75mm: 2.46' (0.75m)
    100mm: 2.95' (0.9m)
    135mm: 3.21' (0.98m)
    180mm: 3.51' (1.07m)

  • Iris Control

    14mm: Manual (65 Degree)
    18mm: Manual (76 Degree)
    21mm/25mm: Manual (77 Degree)
    35mm/50mm: Manual (80 Degree)
    40mm: Manual (83 Degree)
    75mm: Manual (82 Degree)
    100mm: Manual (90 Degree)
    135mm/180mm: Manual (88 Degree)

  • Focus Control

    Manual (270 Degree)

  • Front Dia.

    3.74" (95mm)

  • Length

    14mm, 18mm, 21mm, 25mm, 35mm, 40mm, 50mm, 75mm, 100mm:
    PL: 4.76" (121mm)

    135mm, 180mm:
    PL: 5.12" (130mm)

  • Iris Blade

    16

  • Filter Size

    86mm

  • Gear Pitch

    0.8 Mod

  • Focus Scales

    Imperial

  • Weight

    14mm: 3.62 lbs (1.64kg)
    18mm: 3.66 lbs (1.66kg)
    21mm: 3.30 lbs (1.5kg)
    25mm: 3.28 lbs (1.49kg)
    35mm: 3.63 lbs (1.65kg)
    40mm: 3.60 lbs (1.63kg)
    50mm: 3.72 lbs (1.68kg)
    75mm: 3.66 lbs (1.66kg)
    100mm: 4.03 lbs (1.83kg)
    135mm: 4.06 lbs (1.84kg)
    180mm: 3.69 lbs (1.67kg)

  • UPC Code

    842463102897

Models
<b>New Arrival</b> - DZOFILM Arles Prime Cine Lens for PL Mount,
$1,999.00

$2,149.00

Save:$150.00 (7%)

In Stock

11 Styles Available

Generally ships in 7-14 days, subject to availability

DZOFILM Vespid2 Prime 105mm T1.9 Cine Lens, PL Mount
$1,299.00

In Stock

DZOFILM Vespid2 Prime 18mm T1.9 Cine Lens, PL Mount
$1,299.00

In Stock

Kit StyleBaseBaseBase
FormatFull Frame, VistaVisionFull Frame, VistaVisionFull Frame, VistaVision
Lens TypeMultipleMedium TelephotoUltra-Wide Angle
Fixed Focal Length100mm, 135mm, 14mm, 180mm, 18mm, 21mm, 25mm, 35mm, 40mm, 50mm, 75mm, Set105mm18mm
Lens MountPL MountPL MountPL Mount
Maximum ApertureT1.4, T1.8, T1.9, T2.4T1.9T1.9
Zoom Focal LengthNANANA
Focus TypeManual FocusManual FocusManual Focus

About DZOFILM Arles Prime Cine Lens for PL Mount,

Expansive Focal Range for Unmatched Versatility

With the DZOFILM Arles Prime Cine Lens, filmmakers can achieve cinematic visual brilliance inspired by the vibrant town of Arles, France a muse for Vincent van Gogh.

This lens series, renowned for its T1.4 ultra-wide aperture, excels in capturing the dynamic interplay of light and shadow, making it ideal for low-light and complex shooting conditions. The fast aperture allows for a stunningly dreamy shallow depth of field, highlighting narrative details with precision and ensuring even brightness transitions for smooth, exquisite cinematic footage.

Versatile focal range for every vision

Covering 14mm ultra-wide to 180mm telephoto, this lens brings your creative vision to life in every frame.


From t1.4 to t2.4

With an aperture range designed for perfect exposure control, get stunning low-light performance and cinematic depth of field.


Cinema-ready image circle

Each lens boasts a maximum image circle of 46.5mm, so capture large-format visuals in detail.


0.28m minimal focus distance

Get as close as 0.28m for intimate shots without distortion.

Cinema-ready image circle

Lovely bokeh + 16-blade aperture

A 16-blade aperture ensures smooth, rounded bokeh, adding a dreamlike quality to your shots.


11 focal lengths

With 11 focal lengths from 14mm to 180mm, this lens set covers wide, standard, and telephoto.

Lovely bokeh + 16-blade aperture

Advanced aspherical elements

The use of aspherical elements in each lens corrects any optical distortion.


Uniform design for easier shoots

A unified front diameter of 95mm and interchangeable focus rings make swapping lenses fast and efficient.


Lightweight and agile

Ranging from just 1.4 to 1.9 kg, these lenses are designed for flexibility.


Cinema-standard gear

With industry-standard focus and aperture gearing, these lenses offer precise control and compatibility.

Lightweight and agile

Subtle blue coating

A low-saturation blue coating delivers beautiful color rendering and nuanced highlights.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • 16 aperture blades create delightful circular bokeh and smooth focus transitions
  • Compatible with large format sensors, ideal for diverse filmmaking needs
  • Lightweight, compact design integrates seamlessly with industry-standard cine accessories
  • Interchangeable mounts provide wide compatibility with various cinema cameras

What's in the box:

  • DZOFILM Arles Prime Cine Lens (Black)
  • Front Cap
  • PL Rear Cap
  • Shim Set
  • Support Base
  • Support Rod
  • DZOFILM 1 Year Limited Warranty (Extended 18 Month Warranty with Registration)
