Earthworks SR5314 Cardioid Mic Capsule for Sennheiser Handheld System, Black
See all Earthworks items

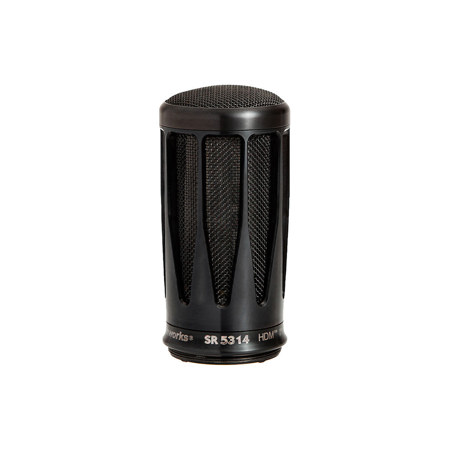

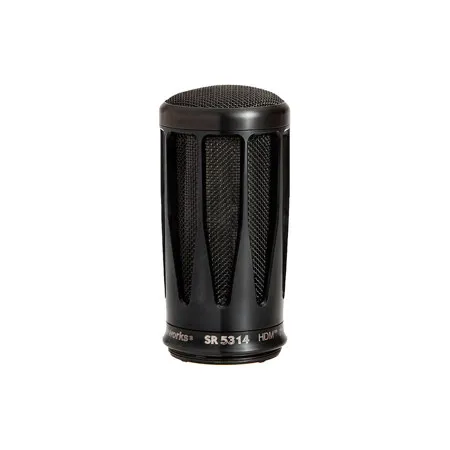

Earthworks SR5314 Cardioid Condenser Vocal Microphone Capsule for Sennheiser Handheld Wireless System, Black

SKU: EWSR5314B MFR: SR5314-B
Be the first to review this itemAsk a Question
$699.00
OR
$117/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine vocals with the Earthworks SR5314 Cardioid Condenser Microphone Capsule.
  • Enjoy seamless integration with your Sennheiser handheld wireless system for reliable performance.
  • Experience exceptional clarity and detail, perfect for live performances and studio recordings.
  • Benefit from a wide frequency response (20Hz-30kHz) for natural and accurate sound reproduction.
  • Achieve professional-grade audio quality with this durable and high-performance microphone capsule.
  • Upgrade your Sennheiser system with superior sound, ensuring every vocal nuance is heard.
See More Product Details
Temporarily On Backorder?Expected Availability: 05/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Earthworks SR5314-B Specifications

  • Color

    Black with Black Mesh

  • Compatibility

    Sennheiser: Digital 9000 Series, 2000 Series, Evolution G4 500/300/100 Series, Digital 6000
    Note: The SR5314 has a 3-second warm-up delay. Keep the channel muted immediately after powering on the SKM 6000 transmitter to prevent transient noise or distortion.

  • Polar Pattern

    Cardioid

  • Microphone type

    Condenser

  • Frequency Response

    20Hz - 30kHz

  • Sensitivity

    6.5 mV/Pa (-43.7 dBV/Pa)

  • Output

    Ring 1 & 2 on 6-ring concentric connector

  • Output Impedance

    0.1 Ohm unbalanced (ring 1 & 2)

  • Noise

    23dBA at capsule output (A-Weighted)

  • Threads

    M36-0.75 thread pitch to match compatible Sennheiser wireless handheld transmitters.

  • Power Requirements

    5V to 12VDC using rings 3 & 6 on 6-ring concentric connector

  • Peak Acoustic Input

    133 dB SPL @ 6V (depending on transmitter supply voltage)

  • Dimensions (L x D)

    3.25 x 1.6" (8.26 x 4.06cm)

  • Weight

    6.35 oz (180g)

  • UPC Code

    827517359779

About Earthworks SR5314-B

Commanding presence. Crystal clear vocals.

The Fastest Microphone Capsule
Performance at the speed of sound, designed for massive headroom and full dynamic range. Formatted for use with select Sennheiser wireless microphone base, the Earthworks SR5314 captures natural, rich-sounding vocals - delivering articulate low end close up without thinning out with distance.

Studio Control On Stage
Mitigate bleed and feedback with unparalleled off-axis sound rejection.

Wireless Flexibility
Whether performing for an intimate live streaming session or for a local gig, work the stage while sounding like you're singing through a wired handheld.

Faster Soundchecks
Clean impulse response combined with a textbook cardioid pattern equals better monitor mixes.

Earthworks SR5314-B Features

  • Commanding presence with crystal-clear vocals
  • Fastest capsule design for massive headroom
  • Studio-level control with unmatched off-axis rejection
  • Wireless flexibility that feels like wired performance

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture pristine vocals with the Earthworks SR5314 Cardioid Condenser Microphone Capsule.
  • Enjoy seamless integration with your Sennheiser handheld wireless system for reliable performance.
  • Experience exceptional clarity and detail, perfect for live performances and studio recordings.
  • Benefit from a wide frequency response (20Hz-30kHz) for natural and accurate sound reproduction.
  • Achieve professional-grade audio quality with this durable and high-performance microphone capsule.
  • Upgrade your Sennheiser system with superior sound, ensuring every vocal nuance is heard.

What's in the box:

  • Earthworks SR5314 Cardioid Condenser Vocal Microphone Capsule (Black)
  • Earthworks 2 Year Limited Warranty
