Elmo TT-12iD + CP-EW301N Specifications

  • Camera: Image pick-up device

    1/2.8" CMOS sensor 3,400,000 pixels

  • Camera: Total pixels

    2,144 (H) x 1,588 (V)

  • Camera: Effective pixels

    1,920 (H) x 1,536 (V)

  • Camera: Frame rate

    30 fps

  • Camera: Resolution

    Analog RGB: 800 (H) x 800 (V) TV lines or more

  • Optics: Zoom

    Powered, 12x optical

  • Optics: Lens

    F3.2-3.6, f=4.0 mm- 48.0 mm

  • Optics: Shooting area

    1080p: Max. 16 9/16" x 9 3/16" (420 x 233 mm) Min. 1 15/16" x 1 1/16" (48.5 x 27.5 mm)
    720p: Max. 16 9/16" x 9 3/16" (420 x 233 mm) Min. 1 15/16" x 1 1/16" (48.5 x 27.5 mm)
    SXGA: Max. 16 9/16" x 13 1/8" (420 x 334 mm) Min. 1 15/16" x 1 1/2" (48.5 x 38.5 mm)
    WXGA: Max. 16 9/16" x 10 3/16" (420 x 259 mm) Min. 1 15/16" x 1 3/16" (48.5 x 30.5 mm)
    XGA: Max. 16 9/16" x 12 5/16" (420 x 313 mm) Min. 1 15/16" x 1 7/16" (48.5 x 36.5 mm)

  • Optics: Focus

    Auto / Manual / Zoom Sync

  • Functions: White balance

    Auto / One-Push / Manual

  • Functions: Image mode

    Text1 / Text2 / Text3 / Graphics1 / Graphics2

  • Functions: Edge enhancement

    Provided (only for graphics mode)

  • Functions: Pause

    Provided

  • Functions: Still image storage

    Provided

  • Functions: Movie storage

    Provided

  • Functions: USB image output

    Provided (ELMO original, UVC (USB Video Class))

  • Functions: Digital zoom

    8x

  • Functions: Gamma setting

    Provided (only for graphics mode)

  • Functions: Graphical OSD

    Provided

  • Functions: Slide show

    Provided (image data)

  • Functions: Image save

    SD memory card / SDHC memory card / USB flash drive

  • Functions: State presetting

    Up to 3 user settings

  • Functions: Annotation

    Provided (CRA-1 use)

  • Functions: Brightness Control

    Auto (with level adjustment) / Manual

  • Support Functions

    Highlight, Mask, Scroll (in digital zoom), Mosaic, Split screen, PinP (Picture-in-Picture), Color filter, Microscope, Image rotation (0½/180½), Positive/negative conversion, Color/B&W selection

  • Interface: Input selection

    Main / External

  • Interface: Output terminals

    1x RGB output mini D-sub 15-pin connector, female
    1x HDMI output terminal
    1x Line Out terminal 3.5 mm-diameter stereo mini jack

  • Interface: Input terminals

    1x RGB input mini D-sub 15-pin connector, female
    1x Mic In/Line In terminal (shared), 3.5 mm-diameter stereo mini jack

  • Interface: Ext. control terminal

    1x USB device (2.0 compliant) (UVC Compliant) Mini-B receptacle

  • Interface: Analog RGB output

    1080p: 1,920 x 1,080 at 60 Hz
    720p: 1,280 x 720 at 60 Hz
    SXGA: 1,280 x 1,024 at 60 Hz
    WXGA: 1,280 x 800 at 60 Hz
    XGA: 1,024 x 768 at 60 Hz

  • Interface: HDMI output

    Image output: 1080p/720p
    Audio output: PCM 44.1 kHz sampling frequency

  • Interface: Video output selection switch

    Provided (NTSC/PAL)

  • Interface: Memory interface

    1x SD memory card slot, 1x USB host (2.0 compliant) Type A receptacle

  • Lighting: Illumination Lamp

    White LED

  • TT-12iD Camera: Security Slot

    Provided

  • TT-12iD Camera: Power Source

    12V DC (AC adapter AC 100 - 240V)

  • TT-12iD Camera: Power Consumption

    16.2 W (AC adapter included)

  • CP-EW301N: Screen Size (Diagonal)

    30 - 300"

  • CP-EW301N Projector: Lamp

    225 W UHP

  • CP-EW301N Projector: Brightness

    3000 ANSI lumens

  • CP-EW301N Projector: Lamp Life

    Normal 5,000 hours,

  • CP-EW301N: Eco Mode 1 8,000 hours

    Eco Mode 2: 10,000 hours

  • CP-EW301N Projector: Output

    VGA (shared VGA in2) Audio out (3.5mm)

  • CP-EW301N Projector: Input

    2x VGA; 1x YCvCr; 1x Video; 1x S-video; 1x Audio in (3.5mm); 1x HDMI; 2x RAC(L/R)

  • Dimensions (W x D x H)

    TT-12iD Camera Unit: 355 x 373.5 x 426.5mm / 13.98 x 14.70 x 16.79"
    CP-EW301N Projector: 12.6 x 9.7 x 3.4" / 32.00 x 24.64 x 8.64cm

  • Weight

    TT-12iD Camera Unit: 7.1lbs / 3.22kg

  • UPC Code

    008404104379

About Elmo TT-12iD + CP-EW301N

Easy to Use Classroom Bundle: Interactive Document Camera + LCD Projector

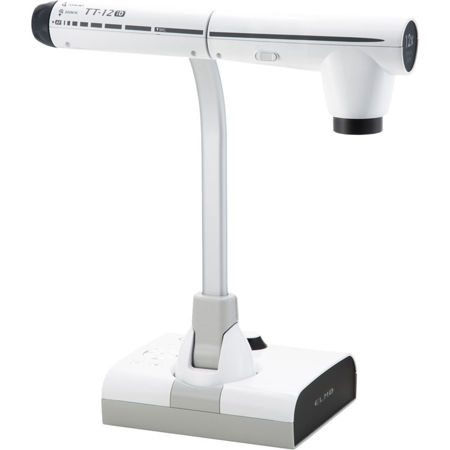

The ELMO TT-12iD is the next generation document camera in the popular TT-12 series of document cameras. The TT-12iD is an all-inclusive document camera designed for teachers looking to incorporate 21st century classroom technology to create dynamic lessons that enhance learning, interaction, creativity and academic performance of students. The TT-12iD is now equipped with HDMI input and a BRAND NEW sleek remote control.

The Hitachi CP-EW301N Projector is a user friendly carefree projector for both business and education. ELMO USA Corp. has tested more than a dozen LCD and DLP Projectors and they have found that the most suitable product is from Hitachi. The Hitachi CP-EW301N outperforms all of the others in the market and is a great match for ELMO Document Cameras, at a reasonable cost.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Elmo TT-12i Document Camera
  • CP-EW301N Projector
  • AC Adapter
  • AC Cord
  • RGB Cable
  • USB Cable (for Connection to PC)
  • Remote Control
  • Set of AAA Batteries (for Remote Control)
  • Image Mate Software (CD)
  • Power Cord (for Projector)
  • Remote Control (for Projector)
  • VGA Cable (for Projector)
  • Basic Startup Guide
  • Elmo 5 Year Warranty for Document Camera
