26% Off

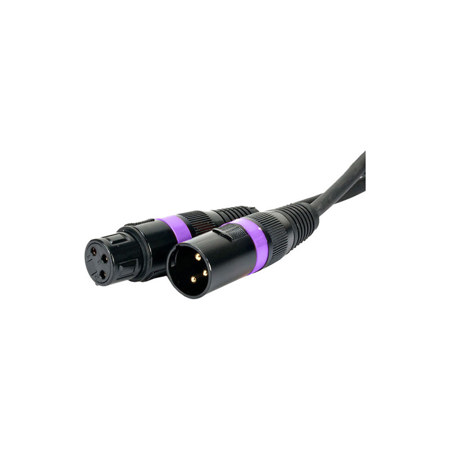

Elation Accu-Cable 100' 3-Pin XLR Male to Female DMX Cable

SKU: ELAC3PDMX100 MFR: AC3PDMX100
$39.99
$53.95
Save: $13.96 (26%)
Earn VIP Reward Points

Key Features

  • Ensure optimal signal transfer with this 100-foot Elation XLR DMX cable for lighting setups.
  • This durable 3-pin XLR cable is shielded to reduce interference, enhancing your lighting effects.
  • Use this high-quality DMX cable for reliable connections between lighting consoles and fixtures.
  • Experience peace of mind with our Elation Accu-Cable, designed for professional DJ lighting rigs.
  • Enjoy robust performance with a flexible PVC jacket, perfect for demanding stage and studio use.
  • Get superior audio and lighting control with this 22 AWG DMX cable, built for longevity.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation Accu-Cable 100' 3-Pin XLR Male to Female DMX Cable Specifications

  • Connector 1

    XLR 3-Pin Male

  • Connector 2

    XLR 3-Pin Female

  • Number of Conductors

    2

  • Conductor Material

    Tinned Copper

  • Shielded

    Yes

  • Jacket Type

    Polyvinyl Chloride (PVC)

  • Insulation Type

    Polyethylene

  • Outer Diameter

    0.09" (2.29mm)

  • Bend Radius

    3.2" (8.1cm)

  • Maximum Pull Tension

    72lbs (33kg)

  • Operating Conditions

    -22 to 167 Degree F (-30 to 75 Degree C)

  • Wire Gauge

    22 AWG

  • Conductor Capacitance

    12.8 pF/ft at 1 kHz

  • Conductor DC Resistance

    24 Ohms/ft (Up to 1000' / 304.80m)

  • Nominal Impedance

    110 Ohms

  • Attenuation

    0.6 dB @ 1 MHz

  • Cable Length

    100' (30.48m)

  • Weight

    3.1 lbs (1.41kg)

Models
Elation Accu-Cable 100' 3-Pin XLR Male to Female DMX Cable
$39.99

$53.95

Save:$13.96 (26%)

Special Order

Generally ships in 7-14 days, subject to availability

Elation SIP113 3' IP65 Male to Female Power Link Cable
$39.99

$49.95

Save:$9.96 (20%)

Special Order

Generally ships in 7-14 days, subject to availability

Elation PIXEL BC5 5' 4-Pin 16AWG IP65 Shielded Power/Data Cable
$40.00

Special Order

Generally ships in 7-14 days, subject to availability

Accessory TypeCableCable, Power AccessoriesCable, Power Accessories

About Elation Accu-Cable 100' 3-Pin XLR Male to Female DMX Cable

With the Elation Accu-Cable 100' 3-Pin XLR Male to Female DMX Cable, experience superior performance and reliability for all your audio and lighting needs. This rugged cable is expertly designed with no memory, ensuring it remains tangle-free and easy to manage during setup and teardown. Constructed with 22 AWG stranded tinned copper conductors (0.15 x 19), it offers excellent conductivity and durability. The polyethylene insulation and twisted pair design enhance signal integrity, minimizing interference and signal loss. Encased in a robust polyethylene inner jacket, this cable is further protected by Duofoil with 100% coverage and a cotton layer, along with a tinned copper braid shield providing 85% coverage. This comprehensive shielding ensures optimal protection against electromagnetic interference. The outer PVC jacket not only prevents kinking but also adds an extra layer of durability, making it ideal for both studio and live environments. Perfect for professional audio and lighting applications, the Elation Accu-Cable guarantees reliable performance every time.

Elation Accu-Cable 100' 3-Pin XLR Male to Female DMX Cable Features

  • 3-pin DMX Cable
  • Used for linking lighting effects to control them in DMX or Primary/Secondary modes
  • No memory rugged cable
  • PVC jacket to prevent kinking

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Ensure optimal signal transfer with this 100-foot Elation XLR DMX cable for lighting setups.
  • This durable 3-pin XLR cable is shielded to reduce interference, enhancing your lighting effects.
  • Use this high-quality DMX cable for reliable connections between lighting consoles and fixtures.
  • Experience peace of mind with our Elation Accu-Cable, designed for professional DJ lighting rigs.
  • Enjoy robust performance with a flexible PVC jacket, perfect for demanding stage and studio use.
  • Get superior audio and lighting control with this 22 AWG DMX cable, built for longevity.

What's in the box:

  • Elation Accu-Cable 100' 3-Pin XLR Male to Female DMX Cable
  • Elation 2 Year Limited Warranty
