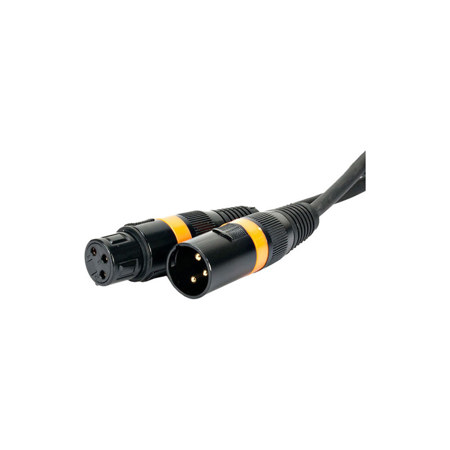

Elation Accu-Cable 25' 3-Pin XLR Male to Female DMX Cable

SKU: ELAC3PDMX25 MFR: AC3PDMX25
$14.99
$19.95
Save: $4.96 (25%)
Earn VIP Reward Points

Key Features

  • Ensure optimal signal transfer with this 25-foot Elation XLR DMX cable for lighting setups.
  • Reliable 3-Pin XLR connectors provide secure links between your lighting and audio equipment.
  • Durable PVC jacket protects the shielded cable, ensuring longevity and consistent DMX signal.
  • Experience superior audio clarity with tinned copper conductors, minimizing signal interference.
  • This 22 AWG gauge DMX cable is perfect for stage lighting, DJ setups, and professional audio.
  • Enjoy peace of mind with a 2-year warranty, guaranteeing quality and reliable DMX cable performance.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Elation Accu-Cable 25' 3-Pin XLR Male to Female DMX Cable Specifications

  • Connector 1

    XLR 3-Pin Male

  • Connector 2

    XLR 3-Pin Female

  • Number of Conductors

    2

  • Conductor Material

    Tinned Copper

  • Shielded

    Yes

  • Jacket Type

    Polyvinyl Chloride (PVC)

  • Insulation Type

    Polyethylene

  • Outer Diameter

    0.09" (2.29mm)

  • Bend Radius

    3.2" (8.1cm)

  • Maximum Pull Tension

    72lbs (33kg)

  • Operating Conditions

    -22 to 167 Degree F (-30 to 75 Degree C)

  • Wire Gauge

    22 AWG

  • Conductor Capacitance

    12.8 pF/ft at 1 kHz

  • Conductor DC Resistance

    24 Ohms/ft (Up to 1000' / 304.80m)

  • Nominal Impedance

    110 Ohms

  • Attenuation

    0.6 dB @ 1 MHz

  • Cable Length

    25' (7.62m)

  • Weight

    12.47 oz (353.8g)

Models
Elation Accu-Cable 25' 3-Pin XLR Male to Female DMX Cable
$14.99

$19.95

Save:$4.96 (25%)

Special Order

Generally ships in 7-14 days, subject to availability

Elation PIXEL BFMCC 5-Pin Female IP XLR Cable Connector for PIXEL BAR Fixtures
$15.00

Special Order

Generally ships in 7-14 days, subject to availability

Elation PIX-AD3 6" Adapter Cable for Pixel Tape 16IP and 40IP Fixtures
$15.00

Special Order

Generally ships in 7-14 days, subject to availability

Accessory TypeCableCableCable

About Elation Accu-Cable 25' 3-Pin XLR Male to Female DMX Cable

Explore the Accu-Cable 25' 3-Pin XLR Male to Female DMX Cable, a robust and reliable solution for all your audio and lighting needs. Engineered with precision, this cable features 22 AWG stranded tinned copper conductors, ensuring optimal signal transmission and durability. The conductors are meticulously crafted with a 0.15 x 19 strand configuration, providing flexibility and strength.

Encased in high-quality polyethylene insulation, the twisted pair design enhances signal integrity, minimizing interference and maintaining clarity. The cable is further protected by a polyethylene inner jacket, which adds an extra layer of durability and resilience.

For superior shielding, the Accu-Cable DMX Cable incorporates Duofoil technology, offering 100% coverage to guard against electromagnetic interference. Complementing this is a tinned copper braid shield with 85% coverage, ensuring robust protection and reliable performance in demanding environments.

The outer PVC jacket is designed to prevent kinking, maintaining the cable's flexibility and ease of use. Whether you're setting up for a live performance, studio recording, or any professional audio-visual application, this cable delivers exceptional performance and reliability. Trust the Accu-Cable 25' 3-Pin XLR Male to Female DMX Cable for seamless connectivity and superior audio quality.

Elation Accu-Cable 25' 3-Pin XLR Male to Female DMX Cable Features

  • 3-pin DMX Cable
  • Used for linking lighting effects to control them in DMX or Primary/Secondary modes
  • No memory rugged cable
  • PVC jacket to prevent kinking

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Ensure optimal signal transfer with this 25-foot Elation XLR DMX cable for lighting setups.
  • Reliable 3-Pin XLR connectors provide secure links between your lighting and audio equipment.
  • Durable PVC jacket protects the shielded cable, ensuring longevity and consistent DMX signal.
  • Experience superior audio clarity with tinned copper conductors, minimizing signal interference.
  • This 22 AWG gauge DMX cable is perfect for stage lighting, DJ setups, and professional audio.
  • Enjoy peace of mind with a 2-year warranty, guaranteeing quality and reliable DMX cable performance.

What's in the box:

  • Elation Accu-Cable 25' 3-Pin XLR Male to Female DMX Cable
  • Elation 2 Year Limited Warranty
