25% Off

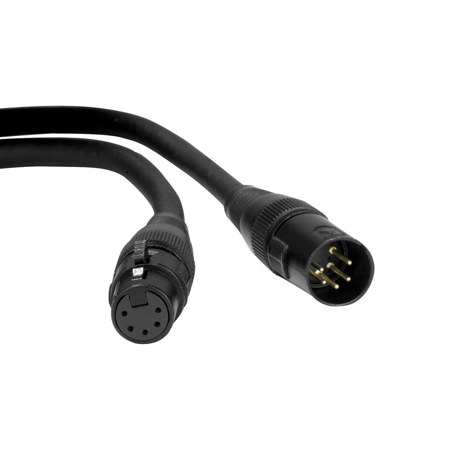

Elation Accu-Cable 100' 5-Pin XLR Male to Female DMX Cable

SKU: ELAC5PDMX100 MFR: AC5PDMX100
$89.99
$119.95
Save: $29.96 (25%)
Earn VIP Reward Points

Key Features

  • Ensure reliable DMX signal transmission with this 100' 5-Pin XLR lighting cable.
  • Connect your lighting fixtures confidently using this durable Elation DMX cable.
  • Experience optimal signal integrity with shielded tinned copper in this XLR cable.
  • Enjoy flexible stage setups; this 100-foot DMX cable offers extended reach.
  • This high-quality 5-Pin XLR cable is designed for professional lighting applications.
  • Minimize signal loss with this low-attenuation DMX cable, crucial for clear lighting.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation Accu-Cable 100' 5-Pin XLR Male to Female DMX Cable Specifications

  • Connector 1

    XLR 5-Pin Male

  • Connector 2

    XLR 5-Pin Female

  • Number of Conductors

    4

  • Conductor Material

    Tinned Copper

  • Shielded

    85% Tinned Copper Braid

  • Jacket Type

    Polyvinyl Chloride (PVC)

  • Insulation Type

    Polyethylene

  • Outer Diameter

    0.09" (2.29mm)

  • Bend Radius

    3.5" (8.9cm)

  • Maximum Pull Tension

    22lbs (10kg)

  • Operating Conditions

    -22 to 167 Degree F (-30 to 75 Degree C)

  • Wire Gauge

    22 AWG

  • Conductor Capacitance

    12.5 pF/ft at 1 kHz

  • Conductor DC Resistance

    24 Ohms/ft (Up to 1000' / 304.80m)

  • Nominal Impedance

    110 Ohms

  • Attenuation

    0.6 dB @ 1 MHz

  • Cable Length

    100' (30.48m)

  • Weight

    5 lbs (2.3kg)

  • UPC Code

    819730011206

Models
Elation Accu-Cable 100' 5-Pin XLR Male to Female DMX Cable
$89.99

$119.95

Save:$29.96 (25%)

Special Order

Generally ships in 7-14 days, subject to availability

Elation SIXPAR/20MDLC 65.6' IP Data Link Connector Cable for SIXPAR IP, White
$90.00

Special Order

Generally ships in 7-14 days, subject to availability

Elation PIXEL BC20-12 20' 4-Pin 12AWG IP65 Shielded Power/Data Cable
$93.00

Special Order

Generally ships in 7-14 days, subject to availability

Accessory TypeCableCableCable, Power Accessories

About Elation Accu-Cable 100' 5-Pin XLR Male to Female DMX Cable

Where reliability meets performance, the Elation Accu-Cable 100' 5-Pin XLR Male to Female DMX Cable is engineered for professional audio and lighting applications. This robust cable features 22 AWG stranded (0.15 x 19) tinned copper conductors, ensuring superior signal transmission and durability. The polyethylene insulation and twisted pair design enhance signal integrity, making it ideal for complex setups.

The cable's construction includes a polyethylene inner jacket, providing an additional layer of protection and flexibility. The Duofoil shield offers 100% coverage, while the cotton filler and tinned copper braid shield deliver 85% coverage, effectively minimizing electromagnetic interference. Encased in a rugged PVC jacket, this cable is designed to resist kinking, ensuring a long-lasting, no-memory performance.

Perfect for professional stage lighting and audio equipment, the Elation Accu-Cable 100' 5-Pin XLR Male to Female DMX Cable is your go-to solution for seamless connectivity and reliable performance in demanding environments.

Elation Accu-Cable 100' 5-Pin XLR Male to Female DMX Cable Features

  • 5-pin DMX Cable
  • Used for linking lighting effects to control them in DMX or Primary/Secondary modes
  • No memory rugged cable
  • PVC jacket to prevent kinking

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Ensure reliable DMX signal transmission with this 100' 5-Pin XLR lighting cable.
  • Connect your lighting fixtures confidently using this durable Elation DMX cable.
  • Experience optimal signal integrity with shielded tinned copper in this XLR cable.
  • Enjoy flexible stage setups; this 100-foot DMX cable offers extended reach.
  • This high-quality 5-Pin XLR cable is designed for professional lighting applications.
  • Minimize signal loss with this low-attenuation DMX cable, crucial for clear lighting.

What's in the box:

  • Elation Accu-Cable 100' 5-Pin XLR Male to Female DMX Cable
  • Elation 2 Year Limited Warranty
