This item is no longer available.

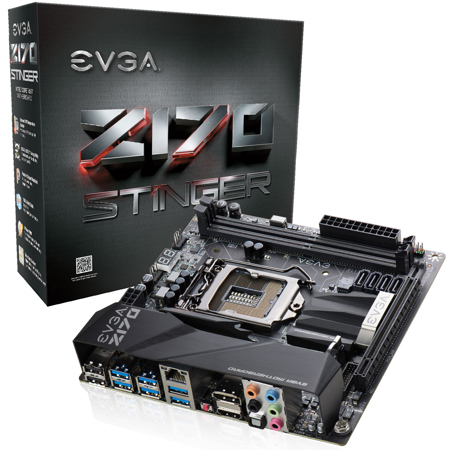

The EVGA Z170 Stinger motherboard is engineered to exceed the best. Featuring a next generation Intel Z170 Express Chipset with DDR4 3200MHz+ memory support, this motherboard is built to perform. Four native SATA 6G ports, eight native USB 3.0 provide robust storage and I/O options and the mITX form factor allows for an extremely compact performance system.
· Supports Intel Core 6 Generation Processor
· Family for LGA Socket 1151
· 150% Increased Gold Content
· Intel Z170 Chipset
· Enthusiast Layout
· 2 DIMM Dual - Channel DDR4 3200MHz+ (32GB)
· PCI Express 3.0 Ready
· 2 USB 2.0 ports (two rear panel)
· 1 HDMI Port
· 1 DisplayPort 1.2 Port
· 8 USB 3.0 Ports (six rear panel, two onboard)
· 4 SATA 6G Ports
· 1 M.2 (Key E)
· 1 Intel Gigabit Ethernet Port (10/100/1000)
· 8 Channel HD Audio
· mITX Form Factor
· Solid State capacitors
· Realtek 8 channel audio + optical out
· Replaceable BIOS Chip
· EVGA Vdroop Control
· Onboard Clear CMOS, Power and Reset Buttons
· EVGA E-LEET Tuning Support
· Onboard CPU Temperature Monitor
Intel ZI70 Chipset
· Supports up to 8 CPU threads (8-core)
· Supports DDR4 Memory
· First to support PCI-E 3.0 from PCH
· USB 3.1 Support (EVGA ZI70 Classified)
Performance Leadership
· Up to 11% Faster CPU (SPECint_ratebase 2006)
· 22% Lower TDP (65W vs 84 W)
· Up to 28% Faster Intel HD Graphics (3DMark 11 Graphics Score)
