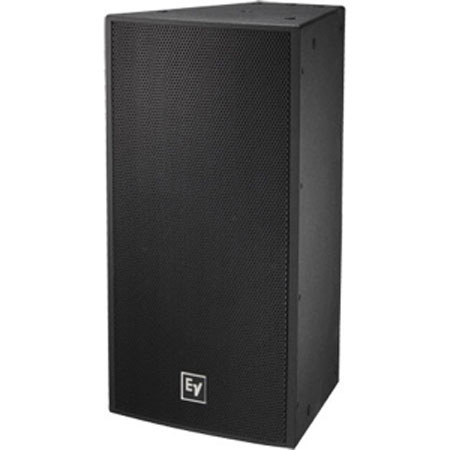

Electro-Voice EVF-1122S 126 12" 2-Way Full-Range Loudspeaker, 120x60deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, Pi-Weatherized, Black

SKU: EV1122S126PB MFR: F.01U.272.516
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve wide, even coverage with the 120x60 degree dispersion PA speaker.
  • This durable PA speaker is weather-resistant, perfect for indoor/outdoor use.
  • Enjoy high sensitivity (98dB) for powerful sound projection from this PA system.
  • Get flexible installation with multiple M10 threaded points on this pro speaker.
  • This 500W continuous power PA speaker delivers pristine audio at high volumes.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 126PI Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 120 deg.
    V: 60 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 126PI

Experience the superior sound quality and versatility of the EVF-1122S 126 12" Two-Way Full-Range Pi-Weatherized Black Loudspeaker. Crafted by the renowned brand Electro-Voice, this high-performance loudspeaker is designed to deliver powerful, high-quality sound for a variety of applications, from live performances and DJ sets to home theater systems.

Constructed from weather-resistant birch and fortified with a durable EVCoat, this loudspeaker is built to withstand the elements, making it an ideal choice for outdoor events or venues. Its unique acoustic and rigging designs allow for the creation of vertical and horizontal clusters using any combination of loudspeakers, offering unparalleled flexibility in system design.

The EVF-1122S 126 boasts a wide 120x60 degree coverage pattern and a high sensitivity of 98dB, ensuring even sound distribution throughout any venue. Its 8 Ohms impedance further enhances its sound reproduction capabilities, delivering reliable and consistent performance.

This loudspeaker also features innovative input panels that offer the choice of Phoenix-type connectors or the easy addition of a dual NL4-type connector cover plate or gland nut cover plate, perfect for weatherizing applications. An externally accessible jumper allows for the selection of passive or active operation, and an available 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.

With the EVF-1122S 126, you have the tools to maximize the flexibility of your audio system design, no matter the application or budget. This loudspeaker is designed to manage more venues with less equipment, while quickly and precisely addressing customer requirements. Experience the difference with the EVF-1122S 126 12" Two-Way Full-Range Pi-Weatherized Black Loudspeaker.

Electro-Voice EVF-1122S 126PI Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve wide, even coverage with the 120x60 degree dispersion PA speaker.
  • This durable PA speaker is weather-resistant, perfect for indoor/outdoor use.
  • Enjoy high sensitivity (98dB) for powerful sound projection from this PA system.
  • Get flexible installation with multiple M10 threaded points on this pro speaker.
  • This 500W continuous power PA speaker delivers pristine audio at high volumes.

What's in the box:

  • Electro-Voice EVF-1122S 126 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
