Electro-Voice CDP-848AT 30W Commercial Sound Paging Projector, Gray
See all Electro-Voice items

Electro-Voice CDP-848AT 30W Weather Resistant Commercial Sound Paging Projector with 1828T Driver, 150deg.Hx110deg.V Coverage, 260-10000Hz Frequency Response, Gray

SKU: EVCDP848AT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Kevin B : To replace existing speakers in a system. Wanted the same item.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Electro-Voice CDP-848AT Specifications

  • Speaker Type

    Paging Horns

  • Frequency Response

    260-10,000 Hz +/-5 dB

  • Power Handling

    30 watts (500-5,000 Hz pink noise) (8 Hours, 6 dB Crest Factor)

  • Magnet Material

    Strontium ferrite

  • Flux Density

    1.25 T

  • Recommended High-Pass Frequency

    200 Hz

  • Sensitivity 1 W/1 m

    105 dB

  • Coverage (Nominal -6 dB) H

    150 deg.

  • Coverage (Nominal -6 dB) V

    110 deg.

  • System Power Handling

    30 Watts (Continuous/Program/Peak)

  • Flying

    Yes

  • Outdoor

    Yes

  • Dimensions (W x H x D)

    10.5 x 20.5 x 20" / 26.67 x 52.07 x 50.8cm

  • Weight

    15.43lbs / 6.99kg
    Magnet: 0.62lbs / 0.28kg

About Electro-Voice CDP-848AT

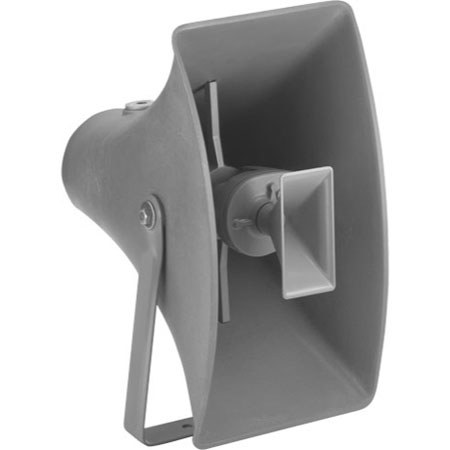

The Electro-Voice CDP-848AT 30W Gray Commercial Sound Paging Projector is a wide-range, integrated horn and driver system with a single driver unit having two coaxial horns coupled to opposite sides of the driver diaphragm. The folded construction of the rear horn coupled with the smaller dimensions of the front horn, present a 1,000 Hz acoustic crossover. This separation of frequencies provides a more extended high frequency response and cleaner sound. The 150 deg. horizontal by 110 deg. vertical dispersion pattern is beneficial in many applications requiring a wide coverage pattern. Furthermore, excellent loading is maintained to a low-frequency cutoff of 200 Hz.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Electro-Voice CDP-848AT 30W Weather Resistant Commercial Sound Paging Projector
  • Electro-Voice 3 year Warranty
