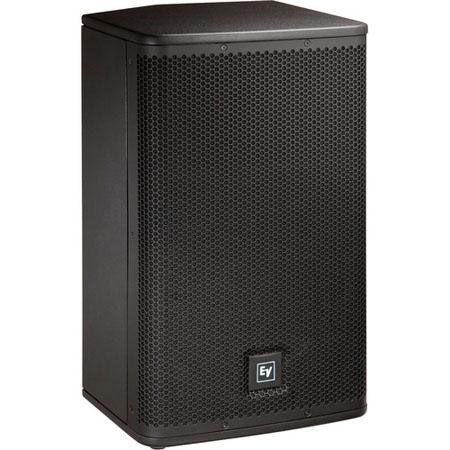

Electro-Voice ELX112P 12" Live X 2-Way Powered Loudspeaker
See all Electro-Voice items

Electro-Voice ELX112P 12" Live X 2-Way Powered Loudspeaker

SKU: EVELX112P

This item is no longer available.

Recommended Alternatives

Electro-Voice ELX200-10P 2-Way Speaker: Picture 1 regular
Electro-Voice ELX200-10P-US 10" 2-Way 1200W Powered Speaker (Black, Single)
$1,400.00$799.00
Electro-Voice EVF-1122D/126FB: Picture 1 regular
Electro-Voice EVF-1122D/126 12" 2-Way 120x60 Fiberglass Speaker, Single, Black
$4,650.00
Electro-Voice EVF-1122D/126PI: Picture 1 regular
Electro-Voice EVF-1122D/126 12" 2-Way 120x60 Evcoat Speaker, Single, Black
$4,091.00
Electro-Voice EVF-1122S/126FB: Picture 1 regular
Electro-Voice EVF-1122S/126 12" 2-Way 120x60 Fiberglass Speaker, Single, Black
$3,944.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice ELX112P Specifications

  • Nominal Impedance

    8

  • Power Rating

    1000 W

  • Speaker Type

    Full-range, two-way, wedges

  • Woofer Size

    304.8 mm (12")

  • Frequency Response (-3 dB)

    60 - 18000 Hz

  • Frequency Response (-10 dB)

    50 - 20000 Hz

  • Internal Crossover

    Yes

  • Max. SPL/1m (calc)

    132 dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    50 deg.

  • LF Transducer

    (1) EVS-12K, 305mm (12") Woofer

  • HF Transducer

    DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver

  • Crossover Frequency

    1.7 k Hz

  • Connector Type

    Parallel Neutrik NL4, (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output

  • Grill

    18GA Steel with Black Powdercoat

  • Case Material

    9-ply, 15mm Plywood, Internally Braced, with Textured Paint

  • Dimensions (HxWxD)

    23.9x14.25x13.39" / 60.70x36.19x34.01cm

  • Weight

    16.8 kg (37.04 lbs)

  • UPC Code

    800549589505

10 Accessories for Electro-Voice ELX112P 12" Live X 2-Way Powered Loudspeaker

  • All Accessories (10)
  • Bags & Cases (1)
  • Cables & Adapters (7)
  • Speaker Cables (1)
  • Stands (1)
Electro-Voice Cover for ELX112 Loudspeaker
Electro-Voice Cover for ELX112 Loudspeaker
$138.00
Hosa 25' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT225
Hosa 25' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT225
$90.95
Hosa 25' Premium Speakon to 1/4" Male Phone Speaker Cable, w/2 Conductors, 12 AW
Hosa 25' Premium Speakon to 1/4" Male Phone Speaker Cable, w/2 Conductors, 12 AW
$89.95
Hosa 30' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT230
Hosa 30' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT230
$105.95
Hosa Technology Hosa 30ft Premium Speakon to 1/4" Male Phone Speaker Cable
Hosa Technology Hosa 30ft Premium Speakon to 1/4" Male Phone Speaker Cable
$98.95
Hosa 50' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT250
Hosa 50' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT250
$136.95
Hosa 75' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT275
Hosa 75' Speakon to Speakon Speaker Cable 12 AWG, w/2 Conductors #SKT275
$194.95
Whirlwind 25' Speakon to Speakon Speaker Cable, 12 Gauge
Whirlwind 25' Speakon to Speakon Speaker Cable, 12 Gauge
$90.23
Whirlwind 50' Speakon to Speakon Speaker Cable, 12 Gauge
Whirlwind 50' Speakon to Speakon Speaker Cable, 12 Gauge
$152.64
Gator Cases Frameworks Standard Aluminum Speaker Stand
Gator Cases Frameworks Standard Aluminum Speaker Stand
$89.99

About Electro-Voice ELX112P

The Electro-Voice ELX112P 120V Powered Loudspeaker is a compact, powerful and versatile choice for sound reinforcement and stage monitoring applications - lightweight and durable, with a 1000 W amp.

Electro-Voice ELX112P Features

  • DH-1K 39mm (1.5") Titanium Diaphragm Compression Driver
  • EVS-12K 305mm (12") Woofer
  • 50 Hz - 20 kHz Frequency Range; 132 dB Max SPL
  • 1000 W Class D Lightweight Amplifier - Runs Cool without Fans
  • Bi-Amplified Design with 24 dB/Octave Filter Slopes and Transducer Protection
  • Selectable 100 Hz High Pass Filter for Use with an External Subwoofer
  • Dual XLR and TRS Combo Inputs with Independent Gain Control
  • Stereo RCA Input with Gain Control on Input 1
  • Switchable Mic / Line Modes on Input 2
  • Switchable Normal / Boost Modes for Different Applications
  • XLR Parallel Output with Selectable Pre or Post Mix Option
  • Front-Mounted Power LED, Selectable On or Off
  • Indicator Lights for Power on and Limit
  • Pole Mounts or Stacks With Live X Subwoofers
  • High Frequency Waveguide with 90deg. X 50deg. Coverage Pattern
  • 15mm Plywood Enclosure, Internally Braced, With Textured Paint
  • 60deg. Monitor Angle

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • EVS-12K 305mm (12") Woofer
  • 50 Hz - 20 kHz Frequency Range; 132 dB Max SPL
  • Stereo RCA Input
  • Switchable Mic / Line Modes on Input 2
  • Front-Mounted Power LED, Selectable On or Off
  • Indicator Lights for Power on and Limit
