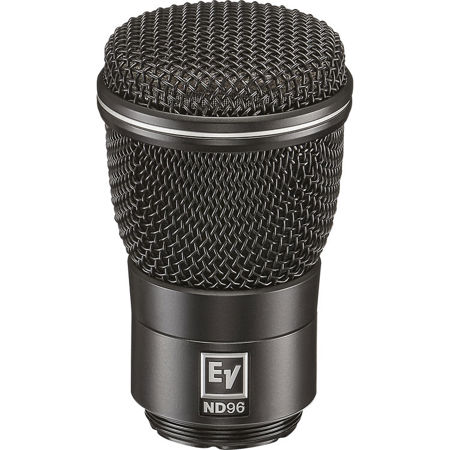

Electro-Voice ND96-RC3 Wireless Head with ND96 Super Cardioid Capsule, 30 Hz-15 kHz (Close), 140 Hz-15 kHz (Far)

SKU: EVF01U346240 MFR: F.01U.346.240
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the ND96 supercardioid microphone capsule.
  • Achieve vocal clarity with this microphone head's tailored frequency response.
  • Enjoy durable performance with the robust aluminum and steel microphone build.
  • Ensure compatibility with its universal 3-Ring/3-Pin threaded microphone coupling.
  • Reduce unwanted noise using the ND96's tight supercardioid polar pattern.
  • Get maximum SPL of 136.5 dB, perfect for loud stage environments and vocals.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?RUBEN C : The present capsule on my EV Mic appears to be giving out. Ordering this to see if it corrects the problem.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice ND96-RC3 Specifications

  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-15 kHz

  • Frequency response, far

    140 Hz-15 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity, open circuit voltage

    In Flat position: 4.7 mV/Pascal (-46.5 dBV/Pa)
    In Vocal presence position: 3.2 mV/Pascal (-50 dBV/Pa) at 1kHz

  • Maximum SPL

    136.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

  • Dimensions (LxDia.)

    3.3 x 2" (83.82 x 50.80mm)

  • Weight

    6.8 oz (192.78g)

  • UPC Code

    800549873642

Designed For Use With:

  • Universal 3-Ring/3-Pin

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Electro-Voice ND96-RC3 Wireless Head with ND96 Super Cardioid Capsule
$225.00

$255.00

Save:$30.00 (12%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Electro-Voice ND86-RC3 Wireless Head with ND86 Super Cardioid Capsule
$189.00

$213.00

Save:$24.00 (11%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Electro-Voice ND76-RC3 Wireless Head with ND76 Cardioid Capsule
$145.00

$164.00

Save:$19.00 (12%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

CompatibilityUniversal 3-Ring/3-PinUniversal 3-Ring/3-PinUniversal 3-Ring/3-Pin
Accessory TypeCartridge/CapsuleCartridge/CapsuleCartridge/Capsule

About Electro-Voice ND96-RC3

Overwhelm the stage with the Electro-Voice ND96-RC3, a dynamic, high-performance wireless microphone head designed for professional vocalists. This robust and reliable microphone head is engineered to adapt seamlessly to Electro-Voice wireless handheld transmitters, as well as many other brands that utilize the standard 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.

The ND96-RC3 is crafted with a unique structural and acoustical design that provides superior acoustic control, even on the loudest stages. Its special design characteristics allow for a significantly louder gain before feedback, outperforming most other microphones in its class.

At the heart of this microphone head is a dynamic capsule that houses a large Mylar diaphragm. This feature ensures a rich and detailed frequency response by combining a large surface area for balanced tonality with a low-mass, high-velocity material for rapid transient response.

The ND96-RC3 also boasts a selectable vocal presence tuning feature. This can be engaged to reduce certain low-mid frequency areas and emphasize key upper midrange vocal presence areas, enhancing intelligibility in high-energy sound reinforcement scenarios.

Innovation extends to the microphone head's capsule shock-mount system. This system includes a 4-point suspension around the capsule's circumference and a tuned pneumatic pump at the capsule base, providing superior handling noise reduction. This eliminates mechanical vibrations and noise in the mix, ensuring a clean, clear sound.

The microphone head is protected by a Memraflex grille, a durable tight-mesh grille wire that can withstand extraordinarily rough treatment, ensuring your microphone head remains in top condition gig-after-gig, year-after-year. Additional protection is provided by a hydrophobic cloth membrane within the capsule, which prevents moisture and debris from reaching the diaphragm.

The ND96-RC3 also utilizes a humbucking coil that effectively attenuates AC hum and electromagnetic interference. This feature allows you to use the ND dynamic mics with confidence near speaker cabinets and EMF generating equipment racks.

In summary, the Electro-Voice ND96-RC3 wireless microphone head is a versatile, high-quality and professional choice for any performer seeking superior sound capture and durability.

Electro-Voice ND96-RC3 Features

  • Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
  • Excellent acoustic control on very loud stages: exceptionally high gain before feedback
  • Large diaphragm dynamic capsule creates a rich and detailed frequency response
  • Vocal presence emphasis switch selects between alternate sonic signatures
  • Shock-mounted capsule minimizes handling noise

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with the ND96 supercardioid microphone capsule.
  • Achieve vocal clarity with this microphone head's tailored frequency response.
  • Enjoy durable performance with the robust aluminum and steel microphone build.
  • Ensure compatibility with its universal 3-Ring/3-Pin threaded microphone coupling.
  • Reduce unwanted noise using the ND96's tight supercardioid polar pattern.
  • Get maximum SPL of 136.5 dB, perfect for loud stage environments and vocals.

What's in the box:

  • Electro-Voice ND96-RC3 Wireless Head with ND96 Super Cardioid Capsule
  • Engineering Datasheet
  • Product Documentation Information Card
  • Electro-Voice 3 Year Limited Warranty
