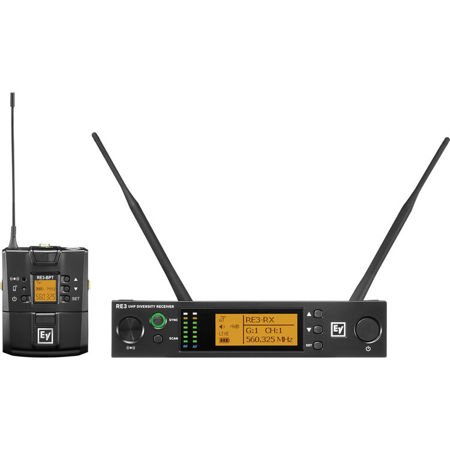

Electro-Voice RE3-BPNID Bodypack Wireless System with No Input Device, Includes RE3-BPT Bodypack Transmitter and RE3-RX Diversity Receiver, 560-596MHz

SKU: EVF01U353065 MFR: F.01U.353.065
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve a reliable wireless range for clear audio, perfect for stage performances.
  • Enjoy extended battery life with the RE3-BPT bodypack transmitter for long events.
  • Benefit from ease of use with intuitive controls for quick setup and adjustments.
  • Ensure durability with robust construction, ideal for demanding live sound environments.
  • Minimize latency for seamless audio transmission, great for broadcast and recording.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-BPNID Specifications

Bodypack Transmitter

Bodypack Transmitter

Jump to...
  • Frequency oscillation mode

    Phase-locked loop (PLL)

  • Bandwidth limits (MHz)

    5H: 560 - 596 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    Low: 10mW
    High: 50mW

  • Sync frequency

    Ultrasonic

  • Display by

    LCD + LED

  • Function controls

    Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock

  • RF stability

    <+/-10kHz at Fc

  • Modulation frequency shift

    Wideband FM +/-48kHz deviation

  • Harmonic radiation

    < -50dBc

  • Input jack

    4-pin mini jack

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging contacts

    Yes

  • Finish

    Black polyurethane paint

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5H: 560 - 596 MHz

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz to 16kHz +/-2dB (BPT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions (HxWxD)

    Transmitter (Without Antenna): 3.2 x 2.54 x 0.98" (81.28 x 64.52 x 24.89mm)
    Receiver (With Feet Attached and Antenna Jack): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm)
    Receiver (Without Feet Attached and Antenna Jack): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm)

  • Weight

    Transmitter: 6.14 oz (174.07g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549895101

About Electro-Voice RE3-BPNID

Become a master of wireless audio transmission with the Electro-Voice RE3-BPNID Bodypack Wireless System. This high-quality, durable, and innovative system is designed to deliver exceptional performance for professionals in various fields, from live stage performances to broadcast environments.

The RE3-BPNID system is a testament to Electro-Voice's commitment to producing user-friendly and reliable audio equipment. It features a compact and robust RE3-BPT Bodypack Transmitter, which is discreet and comfortable to wear for extended periods. Whether you're delivering a keynote speech, performing in a theatrical production, or engaging in high-energy sports commentary, this transmitter is engineered to accommodate a wide array of input devices from Electro-Voice's reputable line-up, including lavalier microphones, headworn mics, and instrument pickups.

The transmitter boasts a durable metal body, designed to withstand the rigors of on-the-go use. Its unique magnetic latch and lock system ensures easy access to batteries while keeping the compartment securely closed. The ultrasonic sync function streamlines the setup process, syncing the transmitter to the receiver's frequency tuning and functional data with ease. With selectable output power and up to 36 MHz tuning bandwidth, the RE3-BPT Bodypack Transmitter is equipped to navigate through various transmission ranges and avoid potential interference, ensuring a clear and consistent signal.

Complementing the transmitter is the RE3-RX Diversity Receiver, a professional-grade, rack-mountable unit that serves as the control hub for your wireless audio setup. The receiver's diversity reception technology is designed to minimize signal dropouts, automatically selecting the strongest signal from its dual antennas to maintain a stable connection. Frequency scanning is made simple with the receiver's intuitive interface, allowing you to quickly find and lock onto open frequencies for uninterrupted operation.

The receiver's sync function wirelessly aligns all operating parameters with the paired transmitter, creating a seamless link that ensures top-notch audio transmission. The expansive tuning bandwidth, adjustable in 25kHz steps, offers a broad spectrum of frequencies to choose from, facilitating both single and multi-channel system configurations.

The easy-to-read LCD display on the RE3-RX Diversity Receiver provides a clear view of all settings and adjustments, making it straightforward for users to monitor and control their wireless audio system.

In summary, the Electro-Voice RE3-BPNID Bodypack Wireless System is a compact, high-quality, and user-friendly solution for professionals seeking a reliable and versatile wireless audio transmission system. With its robust construction, innovative features, and the backing of a respected brand, this system is an excellent choice for those who demand the best in wireless audio technology.

Electro-Voice RE3-BPNID Features

  • High-quality Electro-Voice RE3-BPNID Bodypack Wireless System for professional audio transmission
  • Includes robust RE3-BPT Bodypack Transmitter, designed for comfort and versatility in various presentation and performance applications
  • Features RE3-RX Diversity Receiver with diversity reception technology to minimize signal dropouts
  • User-friendly system with ultrasonic sync function for easy setup and frequency tuning
  • Wide tuning bandwidth (up to 36 MHz) for single and multi-channel systems
  • Durable metal construction with unique magnetic latch and lock system for secure and easy battery access

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve a reliable wireless range for clear audio, perfect for stage performances.
  • Enjoy extended battery life with the RE3-BPT bodypack transmitter for long events.
  • Benefit from ease of use with intuitive controls for quick setup and adjustments.
  • Ensure durability with robust construction, ideal for demanding live sound environments.
  • Minimize latency for seamless audio transmission, great for broadcast and recording.

What's in the box:

  • Electro-Voice RE3-BPT Bodypack Transmitter
  • RE3-RX Diversity Receiver
  • 2x Receiver Antennas
  • Receiver Rack Mounting Hardware
  • Universal Power Supply
  • 2x AA Batteries
  • Belt Clip for Transmitter
  • Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
