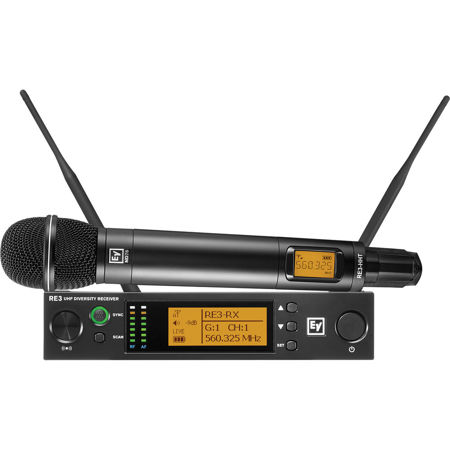

Electro-Voice RE3-ND76 Wireless Handheld System, Includes ND76-RC3 Wireless Head with ND76 Cardioid Microphone Capsule, RE3-HHT Handheld Transmitter and RE3-RX Diversity Receiver, 653-663MHz

SKU: EVF01U354201 MFR: F.01U.354.201
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the ND76 cardioid microphone capsule, perfect for vocals.
  • Enjoy freedom of movement with this handheld wireless microphone system, ideal for performers.
  • The RE3-RX diversity receiver ensures a stable wireless connection, minimizing dropouts on stage.
  • Achieve professional sound quality with a wide 51Hz-16kHz frequency response for clear audio.
  • Operate confidently with a reliable wireless range, thanks to the 10/20mW transmitter power.
  • Benefit from durable construction and user-friendly design for seamless setup and lasting use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-ND76 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-17 kHz

  • Frequency response, far

    70 Hz-17 kHz

  • Polar pattern

    Cardioid

  • Sensitivity, open circuit voltage

    5.6 mV/Pascal (-45 dBV/Pa) at 1kHz

  • Maximum SPL

    135.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    6M: 653 - 663 MHz

  • Selectable frequencies

    400

  • Transmit output power

    10 and 20 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    10MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    51Hz to 16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.6 x 2" (91.44 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)
    Receiver(HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver(HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Wireless Head with Mic Capsule: 6.5 oz (184.27g)
    Handheld Transmitter: 12.2 oz (345.86g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549898300

About Electro-Voice RE3-ND76

It's time to elevate your live performances with the RE3-ND76 Wireless Handheld System. This professional-grade system includes the ND76-RC3 Wireless Head, complete with an ND76 Cardioid Microphone Capsule, the RE3-HHT Handheld Transmitter, and the RE3-RX Diversity Receiver, all operating within the 653-663MHz frequency range.

The ND76-RC3 Wireless Head is a high-performance, dynamic cardioid microphone head designed for wireless handheld transmitters. Its large Mylar diaphragm delivers a rich and detailed frequency response, ensuring a crisp, clear, and balanced vocal presence. The microphone head's advanced shock-mount system minimizes handling noise, eliminating mechanical vibrations and noise in the mix. The robust Memraflex grille resists denting, ensuring your microphone head remains protected and looking good, gig after gig.

The RE3-HHT Handheld Transmitter is a robust, lightweight UHF transmitter body, perfect for professional performance and presentation applications. Its sync function ensures easy frequency setup, while the selectable output power assists in overcoming the challenges of both long or short transmission ranges. The transmitter operates on 2 AA alkaline or rechargeable NiMH cells, and its threaded coupling allows for easy attachment and interchange of various heads.

The RE3-RX Diversity Receiver is a professional, rack-mountable receiver designed to function as the control center for your RE3 wireless set. Its diversity reception technology minimizes the chances of signal dropouts, providing two separate antenna locations that are electronically chosen based on signal strength and stability. The receiver's frequency scanning function simplifies locating and tuning to a clear operating frequency, and its sync function wirelessly synchronizes all operating parameters to the mated transmitter.

Whether you're performing at concerts, theater productions, or other live events, the RE3-ND76 Wireless Handheld System delivers reliable, high-quality audio transmission with minimal interference. Its advanced features and durable construction make it an ideal choice for professionals seeking superior sound quality and performance.

Electro-Voice RE3-ND76 Features

  • Professional-grade wireless handheld system for live performances and presentations
  • ND76-RC3 Wireless Head with dynamic cardioid microphone capsule for clear, balanced vocal presence
  • RE3-HHT Handheld Transmitter with sync function for easy frequency setup and interchangeable microphone head coupling
  • RE3-RX Diversity Receiver with diversity reception technology to minimize signal dropouts
  • Robust construction with Memraflex grille for durability and long-lasting use
  • Operates within the 653-663MHz frequency range for reliable audio transmission with minimal interference

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with the ND76 cardioid microphone capsule, perfect for vocals.
  • Enjoy freedom of movement with this handheld wireless microphone system, ideal for performers.
  • The RE3-RX diversity receiver ensures a stable wireless connection, minimizing dropouts on stage.
  • Achieve professional sound quality with a wide 51Hz-16kHz frequency response for clear audio.
  • Operate confidently with a reliable wireless range, thanks to the 10/20mW transmitter power.
  • Benefit from durable construction and user-friendly design for seamless setup and lasting use.

What's in the box:

  • Electro-Voice ND76-RC3 Wireless Head with ND76 Microphone Capsule
  • RE3-HHT Handheld Transmitter
  • RE3-RX Diversity Receiver
  • Microphone Stand Adapter
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
