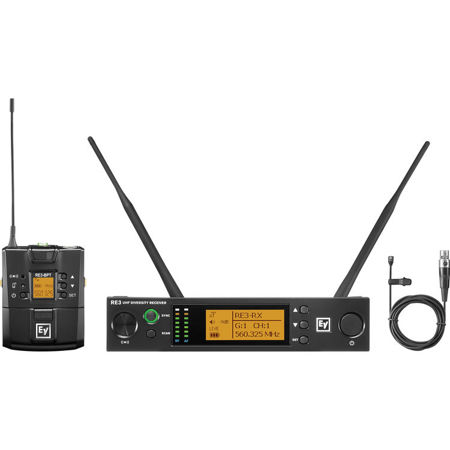

Electro-Voice RE3-BPOL Wireless Bodypack System, Includes RE3-ACC-OL3 Omnidirectional Lavalier Microphone with TA4F Connector, RE3-RX Diversity Receiver and RE3-BPT Bodypack Transmitter, 653-663MHz

SKU: EVF01U354228 MFR: F.01U.354.228
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this Electro-Voice wireless lavalier microphone system.
  • Enjoy freedom of movement; the bodypack transmitter offers reliable wireless connectivity.
  • Ideal for presentations, this lavalier microphone delivers exceptional sound quality.
  • The diversity receiver ensures a stable signal, minimizing dropouts during crucial moments.
  • Get up to 10 hours of battery life, perfect for long events with this wireless microphone.
  • This durable system includes rack mounting hardware for easy integration into your setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-BPOL Specifications

Lavalier Mic

Lavalier Mic

Jump to...
  • Element type

    Self-biased condenser

  • Frequency response

    60 Hz - 15 kHz

  • Polar pattern

    Omnidirectional

  • Sensitivity: open circuit voltage. 1kHz

    17.5 mV/Pascal (-35 dBV/PA)

  • Maximum SPL

    130 dB SPL

  • Impedance

    2200 ohms

  • Power requirements

    3-9 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at pin 2 relative to pin 1

  • Electrical contact pinouts

    Pin #1 - Ground, shield
    Pin #2 - Audio
    Pin #3 - Bias voltage
    Pin #4 - N/C

  • Microphone connector

    4-pin mini plug

  • Head finish

    Non-reflecting black

  • Material

    Brass, steel wire cloth grille, black flexible PVC cable

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    6M: 653 - 663 MHz

  • Selectable frequencies

    400

  • Transmit output power

    10 and 20 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    10 MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz to 16kHz +/-2dB (BPT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

Bodypack Transmitter

Jump to...
  • Frequency oscillation mode

    Phase-locked loop (PLL)

  • Bandwidth limits (MHz)

    6M: 653 - 663 MHz

  • Tuning bandwidth

    10 MHz

  • Selectable frequencies

    400

  • Transmit output power

    Low: 10mW
    High: 20mW

  • Sync frequency

    Ultrasonic

  • Display by

    LCD + LED

  • Function controls

    Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock

  • RF stability

    <+/-10kHz at Fc

  • Modulation frequency shift

    Wideband FM +/-48kHz deviation

  • Harmonic radiation

    < -50dBc

  • Input jack

    4-pin mini jack

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging contacts

    Yes

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Lavalier Mic (Cable Length): 57.1" (1450.34mm)
    Lavalier Mic (LxDia.): 0.36 x 0.2" (9.14 x 5.08mm) (Head)
    Transmitter (HxWxD): 3.2 x 2.54 x 0.98" (81.28 x 64.52 x 24.89mm) (Without Antenna)
    Receiver (HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver (HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Lavalier Mic: 0.62 oz (17.58g)
    Transmitter: 6.14 oz (174.07g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549898553

About Electro-Voice RE3-BPOL

For professionals seeking a reliable and high-quality audio solution, the RE3-BPOL Wireless Bodypack System is an ideal choice. This innovative system includes the RE3-ACC-OL3 Omnidirectional Lavalier Microphone with a TA4F Connector, the RE3-RX Diversity Receiver, and the RE3-BPT Bodypack Transmitter, all operating within the 653-663MHz frequency range.

The RE3-ACC-OL3 Omnidirectional Lavalier Microphone is a robust, multi-purpose tool, perfect for presentations, public speaking, and on-camera applications. Its open and natural sonic characteristics deliver accurate and natural voice reproduction, while its low-profile design ensures discreet usage. The omni-directional polar pattern ensures consistent audio quality, even when the user is moving their head. The microphone is easily attached to clothing or surfaces with a small clip, and the included foam windscreen effectively reduces wind noise.

The RE3-RX Diversity Receiver is a professional, rack-mountable, half-space unit that serves as the control center for the RE3 wireless set. It features clear frequency scanning and synchronizing, and full transmitter control settings. The diversity reception technology minimizes signal dropouts by providing two separate antenna locations, chosen based on signal strength and stability. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band.

The RE3-BPT Bodypack Transmitter is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells. The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless.

In summary, the RE3-BPOL Wireless Bodypack System is a durable, high-quality, and professional solution for wireless audio transmission. Its innovative features and reliable performance make it a versatile choice for live performances, theater productions, and other applications where wireless audio transmission is required.

Electro-Voice RE3-BPOL Features

  • High-quality RE3-BPOL Wireless Bodypack System for professional audio transmission
  • Includes RE3-ACC-OL3 Omnidirectional Lavalier Microphone with TA4F Connector for accurate voice reproduction
  • Features RE3-RX Diversity Receiver with clear frequency scanning and synchronizing for reliable performance
  • RE3-BPT Bodypack Transmitter with robust metal body, suitable for various presentation and performance applications
  • Operates on 653-663MHz frequency range, offering versatility in diverse environments
  • Innovative design with easy setup and user-friendly functions, perfect for live performances and theater productions

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Capture crystal-clear audio with this Electro-Voice wireless lavalier microphone system.
  • Enjoy freedom of movement; the bodypack transmitter offers reliable wireless connectivity.
  • Ideal for presentations, this lavalier microphone delivers exceptional sound quality.
  • The diversity receiver ensures a stable signal, minimizing dropouts during crucial moments.
  • Get up to 10 hours of battery life, perfect for long events with this wireless microphone.
  • This durable system includes rack mounting hardware for easy integration into your setup.

What's in the box:

  • Electro-Voice RE3-ACC-OL3 Omnidirectional Lavalier Microphone with TA4F Connector
  • RE3-RX Diversity Receiver
  • RE3-BPT Bodypack Transmitter with Antenna and Beltclip
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Protective Zippered Pouch for Microphone- Clothing Clip for Microphone- Foam Windscreens for Microphone- Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
