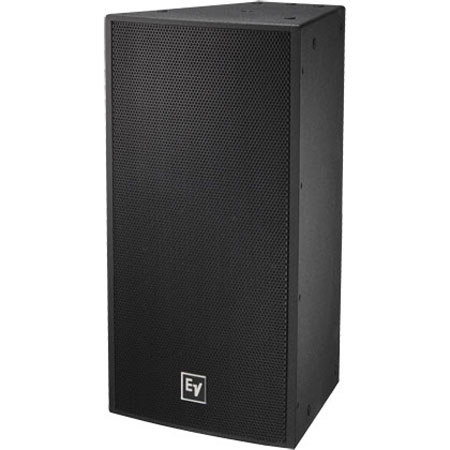

Electro-Voice EVF-1122D/66 12" 2-Way Full-range PI-Weatherized Loudspeaker, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz, 60x60deg. Coverage, Single, Black

SKU: EVF1122D66PB MFR: F.01U.272.592
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events and permanent installations.
  • Get wide, even coverage with the 60x60 degree dispersion of this pro audio speaker.
  • Enjoy powerful performance with 400W continuous power handling for live sound.
  • Durable birch enclosure ensures long-lasting reliability for your PA system setup.
  • Versatile connectivity with Phoenix/Euroblock inputs for easy integration of PA speakers.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/66PI Specifications

  • Frequency Response (-3 dB)

    57 - 18000 Hz

  • Frequency Response (-10 dB)

    49 - 21000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • System Power Handling

    400 W continuous, 800 W program, 1600 W peak3

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    60 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    60 deg.

  • LF Transducer

    DVX3121A, 12 in (305 mm) Woofer

  • HF Transducer

    DH7N, 3 in (76 mm) Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    PI versions: 18 GA Stainless, Powdercoat, with hydrophobic cloth behind

  • Environmental

    PI versions: IEC 60529 IP55

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/66PI

From the renowned brand Electro-Voice comes the EVF-1122D/66 12" 2-Way Full-range PI-Weatherized Loudspeaker, a high-quality, durable and reliable audio solution. This professional-grade loudspeaker, finished in sleek black, is designed to deliver powerful, clear sound across a wide coverage area, making it an ideal choice for live performances, events, and installations.

Boasting an 8 Ohms nominal impedance and a high sensitivity of 97dB, this loudspeaker ensures optimal sound reproduction in a variety of settings. Its frequency response ranges from 49-21000Hz, ensuring a broad spectrum of sound for an immersive audio experience.

One of the standout features of the EVF-1122D/66 is its 60x60 degree rotatable waveguide, designed for far mid-far field long throw coverage pattern. This means that the sound is projected evenly and powerfully, ensuring that every corner of your venue is filled with high-quality sound.

Additionally, this loudspeaker is PI-weatherized, making it a reliable choice for outdoor use. Whether you're hosting a concert in the park or a corporate event in an outdoor venue, this loudspeaker can withstand the elements while delivering exceptional sound quality.

In summary, the Electro-Voice EVF-1122D/66 12" 2-Way Full-range PI-Weatherized Loudspeaker combines powerful performance, wide coverage, and weather-resistant features, making it a versatile choice for professional audio needs.

Electro-Voice EVF-1122D/66PI Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events and permanent installations.
  • Get wide, even coverage with the 60x60 degree dispersion of this pro audio speaker.
  • Enjoy powerful performance with 400W continuous power handling for live sound.
  • Durable birch enclosure ensures long-lasting reliability for your PA system setup.
  • Versatile connectivity with Phoenix/Euroblock inputs for easy integration of PA speakers.

What's in the box:

  • Electro-Voice EVF-1122D/66 12 " 2-Way PI-Weatherized Loudspeaker
  • Dual-gland-nut Input-panel Cover
  • Electro-Voice 3 Year Limited Warranty
