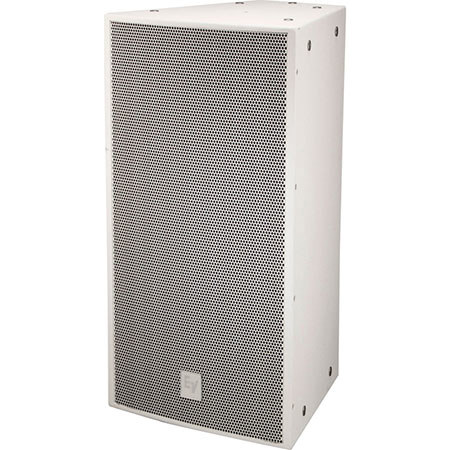

Electro-Voice EVF-1122D/66 12" 2-Way Full-range Loudspeakers, Single, White
See all Electro-Voice items

Electro-Voice EVF-1122D/66 12" 2-Way Full-range Loudspeakers, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz Frequency, 60x60deg. Coverage, Single, White

SKU: EVF1122D66WH MFR: F.01U.272.591
Be the first to review this item5 questions, 3 answers
$3,246.00
OR
$271/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve optimal audio coverage with the speaker's precise 60x60 degree dispersion.
  • Enjoy long-lasting durability with its robust, weather-resistant birch enclosure.
  • This powerful PA speaker delivers 400W continuous, 800W program, and 1600W peak.
  • Ideal for installations, this speaker offers versatile M10 threaded suspension points.
  • Get crystal-clear audio from 49-21000Hz with this high-sensitivity (97dB) speaker.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$299.99
3-Year Adorama Protect$449.99
5-Year Adorama Protect$949.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice EVF-1122D/66 Specifications

  • Frequency Response (-3 dB)

    57 - 18000 Hz

  • Frequency Response (-10 dB)

    49 - 21000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • System Power Handling

    400 W continuous, 800 W program, 1600 W peak3

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    60 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    60 deg.

  • LF Transducer

    DVX3121A, 12" / 304.8mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Environmental

    Standard versions: IEC 60529 IP44

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/66

The Electro-Voice EVF-1122D/66 12" 2-Way Full-range White Loudspeakers features a 60deg. X 60deg. rotatable waveguide, design for far mid-far field long throw coverage pattern.

Electro-Voice EVF-1122D/66 Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve optimal audio coverage with the speaker's precise 60x60 degree dispersion.
  • Enjoy long-lasting durability with its robust, weather-resistant birch enclosure.
  • This powerful PA speaker delivers 400W continuous, 800W program, and 1600W peak.
  • Ideal for installations, this speaker offers versatile M10 threaded suspension points.
  • Get crystal-clear audio from 49-21000Hz with this high-sensitivity (97dB) speaker.

What's in the box:

  • Electro-Voice EVF-1122D/66 12 " 2-Way Full-range Loudspeakers
  • Electro-Voice 3 Year Limited Warranty
