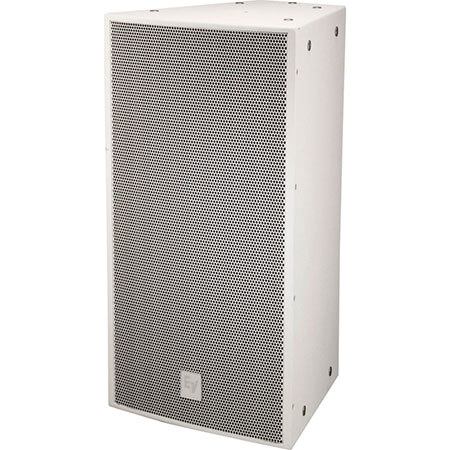

Electro-Voice EVF-1122D/96 12" 2-Way 90 x 60 Full-Range Fiberglass Weatherized Loudspeaker, 118Hz-18kHz, 97dB Sensitivity, 131dB SPL, 8 Ohms, Single, White

SKU: EVF1122D96FW MFR: F.01U.272.930
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • This durable PA speaker is weatherized, perfect for outdoor events and installations.
  • Achieve powerful audio projection with 600W continuous power handling for live sound.
  • Enjoy flexible connectivity options with dual four-pin Phoenix/Euro Block terminals.
  • The fiberglass enclosure ensures lasting durability for your PA system investment.
  • Get wide, even coverage with 90 x 60 degree rotatable coverage in any venue.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/96FB Specifications

  • Frequency Response

    -3dB: 118Hz-18kHz
    -10dB: 66Hz-21kHz

  • Rotatable Coverage

    90 deg. x 60 deg.

  • Rec. High-Pass Frequency

    65Hz

  • Passive Crossover Frequency

    1300 Hz

  • Axial Sensitivity

    97dB (1 W/1 m)
    LF: 98dB (1 W/1 m)
    HF: 111dB (1 W/1 m)

  • SPL

    131dB (Max.)
    LF: 131dB (Max.)
    HF: 136dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing

  • Enclosure

    13-ply weather-resistant birch with fiberglass finish

  • Grille

    18 GA stainless steel with hydrophobic cloth

  • Environmental

    IEC 60529 IP55

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/96FB

Bring your audio experience to life with the Electro-Voice EVF-1122D/96 12" 2-Way 90 x 60 Full-Range Fiberglass Weatherized White Loudspeaker System. Engineered for high-quality sound reinforcement, this compact and lightweight loudspeaker system is perfect for a variety of applications, delivering superior audio performance even in the most demanding environments.

The EVF-1122D/96 is equipped with the DH7N, a high-output 3" titanium compression driver, paired with a Constant Directivity 90deg. X 60deg. waveguide for precise sound dispersion. The DVX3121A 12" woofer, developed using advanced FEA optimization, ensures low distortion, high efficiency, and maximum intelligibility at high SPL, making every sound crystal clear.

The crossover in this loudspeaker system uses steep, 24-dB-per-octave slopes with equalization, delivering a smooth response in the vocal range and linear off-axis response. It also features a protection circuit for long-term reliability, ensuring your loudspeaker system continues to deliver high-quality sound for years to come.

Designed for versatility, the EVF-1122D/96 is ideal for a wide range of fixed-install applications, including those exposed to outdoor elements. Its trapezoidal enclosure is constructed of weather-resistant birch and coated with fiberglass, offering maximum protection against extreme outdoor conditions.

The unique acoustic and rigging design of this loudspeaker system allows for the creation of vertical and horizontal clusters using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from and an assortment of low-frequency and subwoofer loudspeakers, you can customize your system design to fit any application and budget.

The innovative input panel of the EVF-1122D/96 provides a choice of Phoenix style connector or the option to add a dual NL4-type connector cover plate or gland-nut cover plate for weatherizing applications. An externally accessible jumper selects passive or active operation, and an optional 70.7/100-V transformer kit can be easily mounted to the input panel for use in distributed systems.

In conclusion, the Electro-Voice EVF-1122D/96 12" 2-Way 90 x 60 Full-Range Fiberglass Weatherized White Loudspeaker System offers the flexibility and high-quality sound performance to meet the demands of a wide range of venues, making it a valuable addition to any sound reinforcement setup.

Electro-Voice EVF-1122D/96FB Features

  • Fully-weatherized fiberglass finish with gland nut and stainless-steel grille
  • DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver
  • DVX3121A 12" (305 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection
  • Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
  • (22) M10 threaded suspension points

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • This durable PA speaker is weatherized, perfect for outdoor events and installations.
  • Achieve powerful audio projection with 600W continuous power handling for live sound.
  • Enjoy flexible connectivity options with dual four-pin Phoenix/Euro Block terminals.
  • The fiberglass enclosure ensures lasting durability for your PA system investment.
  • Get wide, even coverage with 90 x 60 degree rotatable coverage in any venue.

What's in the box:

  • Electro-Voice EVF-1122D/96 12 " 2-Way 90 x 60 Full-Range Fiberglass Weatherized Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
