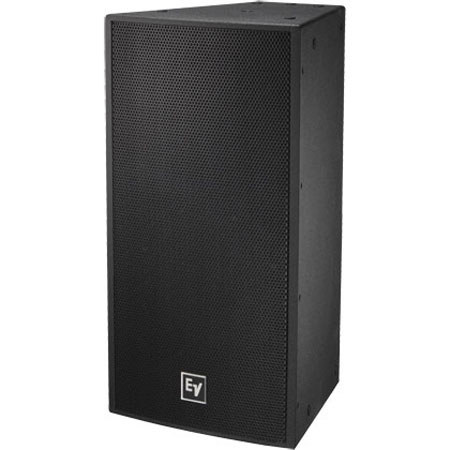

Electro-Voice EVF-1122D/96 12" 2-Way 90 x 60 Full-Range Evcoat Weatherized Loudspeaker, 118Hz-18kHz Frequency Response, 97dB, 131dB SPL, 8 Ohms, Single, Black

The Electro-Voice EVF-1122D/96 is a robust 12" 2-Way 90 x 60 Full-Range Evcoat Weatherized Loudspeaker, designed to deliver superior sound quality in a compact, lightweight package. This black loudspeaker system is engineered for durability and performance, making it an ideal choice for professional audio applications.

Equipped with a high-output 3" DH7N titanium compression driver, this loudspeaker ensures exceptional sound clarity and precision. The driver is coupled to a Constant Directivity 90-degree x 60-degree waveguide, providing consistent sound dispersion for an immersive audio experience.

The heart of this loudspeaker is the DVX3121A 12" woofer, meticulously designed using FEA optimization for motor, suspension, and electrical components. This ensures low distortion, high efficiency, and maximum intelligibility even at high Sound Pressure Levels (SPLs), making it perfect for large venues and outdoor events.

The EVF-1122D/96 features a sophisticated crossover system with steep 24-dB-per-octave slopes and equalization, delivering smooth vocal range response and linear off-axis response. This, coupled with a protection circuit, guarantees long-term reliability and performance.

Constructed with weather-resistant birch and coated with fiberglass, the trapezoidal enclosure of this loudspeaker offers maximum protection against extreme outdoor elements. Its unique acoustic and rigging design allows for versatile vertical and horizontal clusters, using any combination of loudspeakers from the entire EVF and EVH series.

With seven horn patterns, an assortment of low-frequency and subwoofer loudspeakers, and an innovative input panel that supports Phoenix style connector or dual NL4-type connector, this loudspeaker offers unparalleled flexibility in system design. An externally accessible jumper allows for easy selection between passive or active operation.

The EVF-1122D/96 also supports an optional 70.7/100-V transformer kit for use in distributed systems, making it a versatile solution for a wide range of audio requirements. This feature-rich, high-quality loudspeaker is designed to meet the diverse needs of musicians, DJs, and sound engineers, delivering powerful, clear, and reliable audio performance every time.
