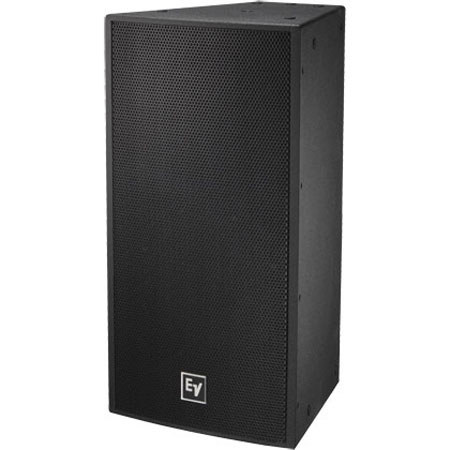

Electro-Voice EVF-1122S 94 12" Two-Way Full-Range Loudspeaker, 90x40deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, Black

SKU: EVF1122S94BK MFR: F.01U.272.502
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • This passive PA speaker delivers powerful, clear audio for live sound events.
  • Achieve optimal coverage with the 90x40 degree dispersion of this PA system.
  • Built for durability, this PA speaker features a weather-resistant birch enclosure.
  • Perfect for venues, this PA speaker handles up to 2000W peak power output.
  • Enjoy flexible connectivity with Phoenix/Euroblock style screw terminals.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice EVF-1122S 94 Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 90 deg.
    V: 40 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

  • UPC Code

    00800549698740

About Electro-Voice EVF-1122S 94

When it comes to delivering superior sound quality in a variety of settings, the EVF-1122S 94 12" Two-Way Full-Range Black Loudspeaker stands out. This stylish and durable loudspeaker, manufactured by the reputable Electro-Voice brand, is designed to produce clear, powerful sound with a high sensitivity of 98dB and an 8-ohm impedance.

Constructed from weather-resistant birch and coated with the robust EVCoat, this loudspeaker offers maximum protection against the elements, making it ideal for both indoor and outdoor events. Its unique acoustic and rigging designs allow for the creation of vertical and horizontal clusters using any combination of loudspeakers, providing unparalleled flexibility in system design to suit any application or budget.

The EVF-1122S 94 12" Two-Way Full-Range Black Loudspeaker also features an innovative input panel, offering the choice of Phoenix-type connectors or the easy addition of a dual NL4-type connector cover plate or gland nut cover plate for weatherizing applications. An externally accessible jumper allows for the selection of passive or active operation, and an available 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.

With its wide 90x40 degree coverage pattern, this reliable and high-quality loudspeaker is perfect for live performances, concerts, festivals, and any other event requiring robust sound reinforcement. The EVF-1122S 94 12" Two-Way Full-Range Black Loudspeaker is the ultimate tool for managing more venues with less equipment, while quickly and precisely addressing customer requirements.

Electro-Voice EVF-1122S 94 Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • This passive PA speaker delivers powerful, clear audio for live sound events.
  • Achieve optimal coverage with the 90x40 degree dispersion of this PA system.
  • Built for durability, this PA speaker features a weather-resistant birch enclosure.
  • Perfect for venues, this PA speaker handles up to 2000W peak power output.
  • Enjoy flexible connectivity with Phoenix/Euroblock style screw terminals.

What's in the box:

  • Electro-Voice EVF-1122S 94 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
